Rotary laser levels are essential tools in construction and landscaping, providing accurate leveling and alignment for various projects. Among the top brands offering these tools are Bosch, DeWalt, and Leica. Each brand has its unique features, advantages, and target markets. In this article, we will delve into the comparison of Bosch rotary laser levels with those from DeWalt and Leica, focusing on their specifications, user experiences, and suitability for different applications.

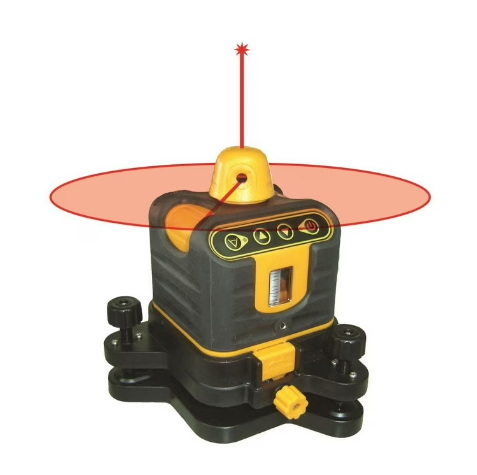

Rotary laser levels are designed to project a rotating laser beam around a 360-degree circle, allowing users to establish a level reference point across large areas. They are particularly useful for tasks such as leveling foundations, setting grades, and aligning walls. These tools are available in various models, each with its own set of features like self-leveling capabilities, range, and durability.
- Accuracy: The precision of the laser level, typically measured in inches or millimeters over a certain distance.
- Range: The maximum distance over which the laser beam can be detected, often extended with receivers.
- Self-Leveling: The ability of the laser to automatically adjust to a level position.
- Durability: Resistance to environmental factors like dust and water, indicated by IP ratings.
Bosch offers a range of rotary laser levels known for their ease of use and versatility. One of the notable models is the Bosch Revolve900, which features a horizontal/vertical self-leveling system and a disturbance monitor to ensure consistent accuracy. It has a range of up to 1,000 feet with the LR10 laser receiver and is accurate to ±1/8 inch at 100 feet[1].
Another notable model is the Bosch 18V REVOLVE4000, known for its connectivity and user-calibration features[5]. It includes a Dual Dial-In Slope feature for adjusting slope angles on both the X and Y axes, making it suitable for grading applications[5]. The GRL4000-80CHV is powered by a Bosch CORE18V 4 Ah battery but is also compatible with 4 Ah and 8 Ah Bosch CORE18V Li-ion batteries, and it can use four (D) cells with an alkaline adapter[5]. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design and is built to IP68 dust- and water-protection standards[5].
- Electronic Self-Leveling: Ensures quick and accurate leveling.
- Variable Speed Selection: Allows users to adjust the rotation speed for better visibility in different lighting conditions.
- The Bosch Revolve900 has rotation speeds of 150, 300, or 600 RPM[1].
- Disturbance Monitor: Alerts users if the tool's position changes, ensuring consistent results.
- IP54 Rating: Offers protection against dust and water, suitable for outdoor use.
- Dual Dial-In Slope: Featured on the Bosch 18V REVOLVE4000, allowing for slope adjustments on both axes[5].
- uCAL User-Calibration: Featured on the Bosch 18V REVOLVE4000, this feature allows users to calibrate the laser themselves, reducing downtime[5].
- Bluetooth Connectivity: The Bosch 18V REVOLVE4000 can connect to a device via Bluetooth to the Bosch Leveling Remote App, enabling remote control of settings like on/off and Dual Dial-In Slope[5].
DeWalt is renowned for its durable and user-friendly tools, and their rotary laser levels are no exception. The DeWalt DW074KDT model is a self-leveling rotary laser level that works well for both indoor and outdoor applications. It is accurate to 1/4 inch at 100 feet and has a maximum range of 1,500 feet with a detector.
The DeWalt 20V Max Tough Green Rotary Laser is another solid option, featuring 1/8 inch accuracy at 100 feet[3]. Indoors, the Class III green laser is visible up to 250 feet, and outdoors, the detector extends the range to 2,000 feet[3]. It has four rotation speed settings: 150, 300, 600, and 1200 RPM[3].
- Horizontal Self-Leveling: Automatically aligns the laser to center.
- Weather-Resistant Design: Protects the unit from harsh job site conditions.
- Long Battery Life: Runs on D batteries with a runtime of up to 30 hours.
- Digital Laser Detector: Extends the range and improves accuracy.
- Vertical Alignment: Some DeWalt models, such as the DeWalt 20V MAX Red Rotary Laser, can indicate vertical alignment (plumb), making them suitable for ensuring straight walls[1].
- Adjustable Scan Angles: Some DeWalt models offer adjustable scan angles (15, 45, or 90 degrees) for working in tight spaces[1].
- Bright Red Laser Beam: Easier to see, especially when wearing the included red glasses[1].
Leica is a premium brand known for its high-precision and durable construction tools. The Leica Rugby 620 is a popular model among professionals, offering a self-leveling horizontal laser with manual slope capabilities. It has an accuracy of ±1.5mm at 30 meters and a working range of up to 800 meters with the Rod Eye receivers.
The Leica Rugby 610 is also easy to use, featuring a single-button operation[4]. It has a durable housing and a range of up to 2,000 feet[4].
- High Accuracy: Offers precise leveling over large distances.
- Manual Slope Control: Allows for simple slope adjustments.
- IP67 Rating: Provides excellent protection against dust and water.
- Long Warranty: Covered by Leica's PROTECT service, including a lifetime manufacturer's warranty.
- Single-Button Operation: The Leica Rugby 610 features single-button operation, making it simple to use[4].
- Durable Housing: The Leica Rugby 610 has a resilient housing, ensuring it can withstand tough job site conditions[4].
| Feature | Bosch Revolve900 | DeWalt DW074KDT | Leica Rugby 620 |
|---|---|---|---|
| Accuracy | ±1/8 inch at 100 ft | 1/4 inch at 100 ft | ±1.5mm at 30 m |
| Range | Up to 1,000 ft | Up to 1,500 ft | Up to 800 m diameter |
| Self-Leveling | Electronic with disturbance monitor | Horizontal self-leveling | Automatic with manual slope |
| Durability | IP54 | IP54 | IP67 |
| Battery Life | Not specified | Up to 30 hours | Up to 60 hours |
| Additional Features | Variable speed, remote control | Digital detector, weather-resistant | Manual slope, long warranty |
- Bosch: Ideal for users who need a versatile tool with easy operation and a comprehensive accessory kit. Suitable for both indoor and outdoor projects[1].
- DeWalt: Best for those seeking durability and long battery life. Suitable for frequent use in harsh environments. Some models also offer vertical alignment and adjustable scan angles[1].
- Leica: Preferred by professionals requiring high precision and durability over large distances. Ideal for complex construction projects. Features single-button operation and a robust design[4].
In conclusion, each brand offers unique strengths that cater to different needs and preferences. Bosch provides ease of use and versatility, DeWalt emphasizes durability and battery life, and Leica excels in precision and durability. When choosing a rotary laser level, consider the specific requirements of your project, including accuracy, range, and environmental conditions.
- Bosch offers accuracy of ±1/8 inch at 100 feet, DeWalt is accurate to 1/4 inch at 100 feet, and Leica provides ±1.5mm at 30 meters. Leica generally offers higher precision over longer distances.
- Leica models, such as the Rugby 620, are highly recommended for outdoor use due to their IP67 rating, which provides superior protection against dust and water.
- The maximum range varies: Bosch Revolve900 reaches up to 1,000 feet, DeWalt DW074KDT extends to 1,500 feet, and Leica Rugby 620 covers up to 800 meters with receivers.
- Leica Rugby 620 models can operate for up to 60 hours on alkaline batteries, making them suitable for extended projects.
- While all models can be used for DIY projects, Bosch and DeWalt models are more accessible for home users due to their ease of use and cost-effectiveness. Leica models are generally preferred by professionals.
