A manual rotary laser level is a precision tool widely used in construction, surveying, and various leveling and alignment tasks. It projects a rotating laser beam to create a 360-degree horizontal or vertical reference plane around a workspace. Unlike self-leveling rotary laser levels, a manual rotary laser level requires the operator to adjust and level the device manually using built-in bubble vials and adjustment screws. This article explores what a manual rotary laser level is, how it works, its applications, advantages, limitations, and tips for effective use.
A manual rotary laser level is a type of laser level that emits a laser beam rotating at high speeds to project a continuous level line around a room or outdoor area. The key distinction is that manual models do not have electronic or automatic self-leveling features. Instead, the user must physically adjust the device to ensure it is perfectly level before use. This is typically done by manipulating thumb screws or adjustment knobs while observing bubble vials integrated into the laser level's housing.
The fundamental working principle of a manual rotary laser level involves several components:
- Laser Diode: This semiconductor device emits a focused beam of light, usually red or green, which is visible to the human eye.
- Rotating Prism or Mirror: The laser beam passes through or reflects off a spinning prism or mirror inside the unit, which rapidly rotates to create a 360-degree horizontal or vertical laser line around the workspace.

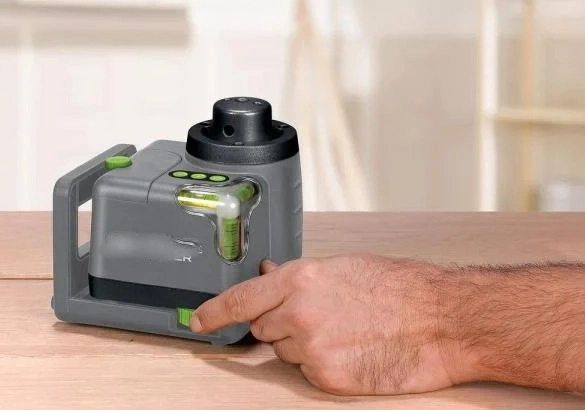

- Manual Leveling Mechanism: The device includes bubble vials (spirit levels) aligned along two perpendicular axes. The operator adjusts screws corresponding to each vial to center the bubbles between marked lines, ensuring the laser level is horizontally and vertically aligned.

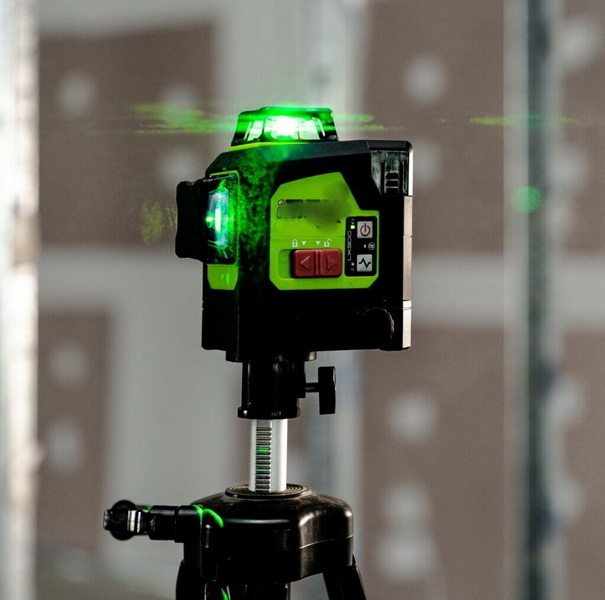

- Stable Mounting Base: The laser level is mounted on a tripod or stable surface to maintain position during operation.
Once the device is manually leveled, the laser diode projects a rotating beam that appears as a continuous line encircling the area. This line serves as a highly accurate reference for leveling, alignment, and layout tasks.
The laser beam in a manual rotary laser level spins at speeds ranging from about 100 to 1,100 revolutions per minute (RPM). This rapid rotation creates the illusion of a continuous 360-degree laser line, which can be used to mark level points on walls, floors, or other surfaces. The beam color is typically red, but some models may offer green for better visibility in bright conditions.
Manual rotary laser levels rely on the quality of the bubble vials and the operator's skill for accuracy. Typically, these devices can achieve an accuracy of about 1/8 inch per 30 feet. While this is less precise than self-leveling models, it is sufficient for many construction and alignment applications. The accuracy depends on careful manual adjustment and the stability of the mounting surface.

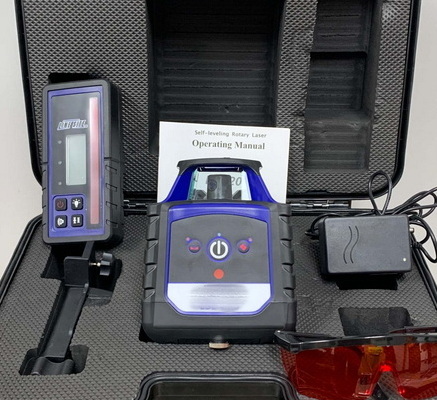

The effective working range of a manual rotary laser level can extend up to several hundred feet in diameter. When used outdoors, a laser detector or receiver is often required to detect the laser beam beyond visible range. Indoors, the laser line can often be seen clearly without additional equipment. The range varies by model and environmental conditions.
Manual rotary laser levels are versatile tools used in many construction and surveying tasks, including:
- Interior Construction: Installing chair rails, kitchen cabinets, drop ceilings, and framing walls with consistent height and level.
- Flooring and Tiling: Ensuring floors and tiles are level across large areas.
- Outdoor Construction: Excavation grading, concrete form alignment, drainage slope setup, and general site leveling.
- Surveying: Establishing level reference points over large distances for site layout.
Because manual rotary laser levels require only one operator, they can speed up jobs that traditionally need two people. For example, in drainage projects requiring a precise slope over hundreds of feet, a single operator can use the laser level with a detector and grade rod to stake out the work.
- Cost-Effective: Manual rotary laser levels are generally less expensive than self-leveling models, making them accessible for smaller contractors or DIY enthusiasts.
- Simplicity: Fewer electronic components mean less chance of mechanical failure and easier maintenance.
- Versatility: Can be used indoors and outdoors with appropriate accessories.
- Manual Setup: Requires careful and time-consuming manual leveling, which can slow down workflow.
- Lower Accuracy: Less precise than self-leveling or automatic models due to reliance on operator skill.
- Susceptible to Movement: Any bump or shift after leveling can cause inaccuracies, and the user may not be immediately aware.
- No Auto-Correction: Unlike self-leveling lasers that automatically adjust if disturbed, manual models require re-leveling after any movement.
1. Select a Stable Surface: Place the laser level on a flat surface or tripod within the workspace.
2. Position the Device: Ideally, set the unit about 1 foot from one wall and at least 20 feet from the opposite wall for indoor use.
3. Level the Laser: Use the two bubble vials aligned along perpendicular axes. Adjust the thumb screws or leveling knobs until the bubbles rest centered between the marked lines on both vials.
4. Turn On the Laser: Activate the laser diode; the beam will begin rotating to project the 360-degree line.
5. Mark Reference Points: Mark where the laser line hits the near and far walls.
6. Reposition and Adjust: Move the laser level closer to the far wall, re-level it, and adjust the height so the laser hits the previously marked point.
7. Measure and Verify: Check the difference between the original mark and the laser line on the near wall to confirm accuracy.
- Use a sturdy tripod to minimize vibrations or movement.
- Double-check bubble vial readings before and after use.
- Avoid bumping or moving the device once leveled.
- Use a laser detector outdoors for better visibility over long distances.
- Practice careful manual leveling to improve accuracy.
Proper maintenance of a manual rotary laser level is essential to ensure its longevity and consistent performance. Users should regularly clean the laser lens and the rotating prism or mirror to prevent dust and debris from affecting the laser beam's clarity and accuracy. It is advisable to use a soft, lint-free cloth and avoid harsh chemicals that could damage the optical components.
Storing the device in a protective case when not in use helps prevent physical damage and exposure to moisture, which can cause corrosion or electrical issues. Additionally, periodic calibration checks are recommended to verify the accuracy of the bubble vials and the laser beam alignment. Some manufacturers provide calibration services or instructions for users to perform basic calibration at home.
While manual rotary laser levels are generally safe to use, it is important to follow safety guidelines to prevent eye injuries. The laser beam, although low-powered, can cause damage if directly viewed for extended periods. Operators should avoid staring directly into the laser beam and use laser safety glasses if recommended by the manufacturer.
When working on construction sites, ensure the laser level is securely mounted to prevent accidental falls or shifts that could cause injury or damage. Always turn off the device when not in use to conserve battery life and reduce the risk of unintended exposure to the laser beam.
Recent advancements in manual rotary laser levels include the integration of more durable materials and improved battery technology, allowing for longer operation times and enhanced portability. Some models now feature dual-beam lasers that can project both horizontal and vertical lines simultaneously, increasing versatility for complex projects.
Moreover, manufacturers are incorporating Bluetooth connectivity and smartphone apps to assist with manual leveling by providing digital readouts and alerts, bridging the gap between manual and self-leveling technologies. These innovations aim to improve user experience and accuracy while maintaining the cost-effectiveness of manual models.
With these additional insights, users can better understand the full scope of manual rotary laser levels, from operation to maintenance and emerging trends, making informed decisions for their specific needs.
A manual rotary laser level is a fundamental tool for achieving accurate leveling and alignment in construction and surveying projects. While it requires manual adjustment and careful setup, it offers a cost-effective and reliable solution for creating a 360-degree level reference line. Understanding its components, operation, and proper usage techniques allows users to maximize its effectiveness despite some inherent limitations compared to self-leveling models. Whether indoors or outdoors, a manual rotary laser level can significantly enhance precision and efficiency on the job site.
A manual rotary laser level requires the user to manually adjust the device using bubble vials and screws to achieve level, while a self-leveling rotary laser level automatically levels itself using pendulums or electronic sensors for higher accuracy and faster setup.
Manual rotary laser levels typically achieve an accuracy of about 1/8 inch per 30 feet, which is less precise than self-leveling models but sufficient for many construction tasks.
Yes, manual rotary laser levels can be used outdoors, often with a laser detector or receiver to detect the laser beam over longer distances where the beam is not visible to the naked eye.
Place the device on a stable tripod or surface, avoid bumping or moving it after leveling, and regularly check the bubble vials to confirm it remains level.
Common uses include interior installations like cabinets and ceilings, flooring and tiling, outdoor grading and excavation, concrete form alignment, and general site surveying.
