Rotary laser levels have become indispensable tools in the construction and surveying industries. These versatile devices provide accurate measurements and level references, making them essential for a wide range of applications. In this comprehensive guide, we'll explore what a rotary laser level can tell you and how it can revolutionize your work.

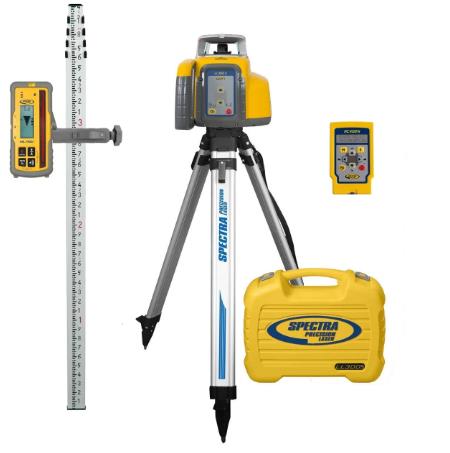

A rotary laser level is an advanced measuring tool that projects a 360-degree horizontal or vertical plane of laser light[1]. This continuous beam creates a precise reference line that can be used for various leveling and alignment tasks.
One of the primary functions of a rotary laser level is to provide precise elevation measurements. By projecting a level plane of light, it can tell you:
- The exact height of surfaces relative to a fixed point
- Whether a surface is perfectly level or has variations
- The amount of slope or grade in a given area
This information is crucial for tasks such as:
- Setting foundations for buildings
- Grading landscapes
- Installing drop ceilings
- Laying pipes with proper drainage
Many rotary laser levels also offer vertical leveling capabilities[3]. This feature can tell you:
- If walls are plumb (perfectly vertical)
- Whether columns or posts are straight
- The alignment of doors and windows
Advanced rotary laser levels can project both horizontal and vertical planes simultaneously, allowing you to:
- Determine if corners are square (90 degrees)
- Check if walls are perpendicular to the floor
- Ensure proper alignment of structural elements
When paired with a laser detector, a rotary laser level can tell you:
- The distance between two points
- The width of rooms or open spaces
- The height of ceilings or tall structures
Some rotary laser levels have slope matching capabilities, which can tell you:
- The percentage of slope in a given area
- Whether a surface meets specific grade requirements
- How to adjust terrain for proper drainage
To fully understand what a rotary laser level can tell you, it's important to be familiar with its key features:
Most modern rotary laser levels have a self-leveling feature[8]. This means:
- The device automatically adjusts to find true level
- It can compensate for slight irregularities in the setup surface
- You get accurate readings without manual adjustments
The accuracy of a rotary laser level is crucial for reliable measurements[7]. High-end models can offer:
- Precision of ±1mm at 30 meters
- Consistent performance over long distances
The operating range of a rotary laser level determines how far it can project its beam[7]. This can vary from:
- 175 meters for entry-level models
- Up to 700 meters or more for professional-grade units
Construction sites can be harsh environments, so rotary laser levels are built to withstand tough conditions[5]. Look for features like:
- IP66 rating for dust and water resistance
- Shock-absorbing components
- Rugged construction meeting military standards
Rotary laser levels have a wide range of applications across various industries:
- Setting foundations
- Aligning walls and partitions
- Installing drop ceilings
- Grading and excavation
- Creating level patios and decks
- Designing irrigation systems
- Establishing proper drainage slopes
- Hanging pictures and artwork
- Installing chair rails and crown molding
- Aligning kitchen cabinets
- Mapping terrain
- Establishing benchmarks
- Measuring land gradients

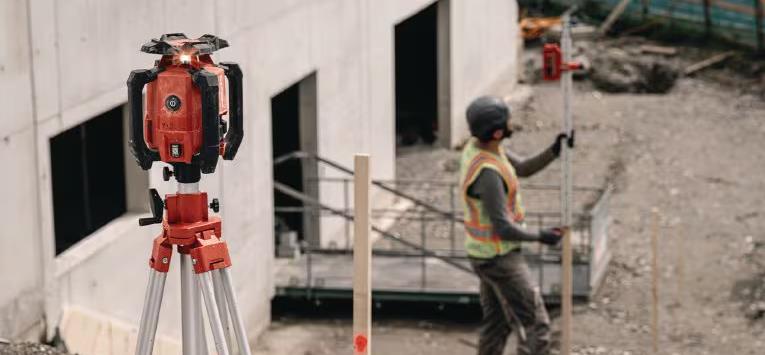

To get the most accurate information from your rotary laser level, follow these steps[3]:
1. Set up the device on a stable surface or tripod
2. Turn on the laser and allow it to self-level (if applicable)
3. Use the receiver to detect the laser beam
4. Make marks or adjustments based on the laser line
5. Repeat the process for different planes or elevations as needed
Modern rotary laser levels incorporate cutting-edge technologies to enhance their capabilities:
Some rotary laser levels now use green laser diodes instead of traditional red ones[5]. This offers:
- Up to 4 times better visibility
- Improved performance in bright conditions
- Extended working range
Many high-end models come with remote controls, allowing you to:
- Adjust settings from a distance
- Fine-tune alignments without disturbing the setup
- Increase efficiency on large job sites
Advanced rotary laser levels may include digital displays that provide:
- Precise slope percentages
- Battery life indicators
- Error messages for troubleshooting
To ensure you get a rotary laser level that tells you everything you need to know, consider the following factors:
- Accuracy requirements for your projects
- Indoor vs. outdoor use
- Required working range
- Budget constraints
- Durability needs
- Additional features like vertical leveling or digital readouts
To keep your rotary laser level providing accurate information, follow these maintenance tips:
- Clean the device regularly with a soft, dry cloth
- Store it in a protective case when not in use
- Check and replace batteries as needed
- Have it professionally calibrated periodically
Rotary laser levels are powerful tools that can tell you a wealth of information about elevations, alignments, and distances. From basic leveling tasks to complex grading projects, these devices offer precision and efficiency that traditional methods simply can't match. By understanding what a rotary laser level can tell you and how to use it effectively, you can significantly improve the accuracy and quality of your work across a wide range of applications.
Rotary laser levels can be extremely accurate, with high-end models offering precision of ±1mm at 30 meters[7]. This level of accuracy is suitable for most construction and surveying applications. However, it's important to note that accuracy can be affected by factors such as temperature, vibration, and improper setup.
Yes, rotary laser levels can be used outdoors. Many models are designed with features like IP66 water and dust resistance to withstand outdoor conditions[5]. When using a rotary laser level outdoors, it's often necessary to pair it with a laser detector due to the bright ambient light that can make the laser beam difficult to see with the naked eye.
The range of a rotary laser level can vary significantly depending on the model. Entry-level units may have a range of around 175 meters, while professional-grade models can reach 700 meters or more[7]. When using a laser detector, the effective range can be even greater, allowing for accurate measurements over long distances.
While most rotary laser levels come pre-calibrated from the factory, it's a good practice to check the calibration periodically, especially if the device has been subjected to rough handling or extreme temperature changes. Some models allow for user calibration, but for the most accurate results, it's recommended to have professional calibration performed annually or as specified by the manufacturer.
Many advanced rotary laser levels have slope matching capabilities that allow them to measure and set slopes or grades[3]. These models can typically display the slope percentage and allow you to set specific grades for tasks like drainage installation or road construction. However, not all rotary laser levels have this feature, so it's important to check the specifications if slope measurement is a requirement for your work.
