In modern construction, precision and efficiency are paramount. One of the most advanced tools that have revolutionized grading, leveling, and alignment tasks is the Electronic Dual Slope Rotary Laser Level System. This technology combines the benefits of rotary laser levels with dual-slope functionality, enabling contractors and builders to achieve unparalleled accuracy in complex projects. This article explores why using an electronic dual slope rotary laser level system is essential in construction work, its features, applications, and how it improves productivity and quality on job sites.
An Electronic Dual Slope Rotary Laser Level System is a sophisticated optical leveling device used to project laser beams in both horizontal and vertical planes with the ability to set slopes on two axes simultaneously. Unlike traditional rotary lasers that only project a level 360-degree plane, dual slope lasers can create two perpendicular sloped reference planes, which is particularly useful for tasks that require grading and drainage with complex inclines[1][2].

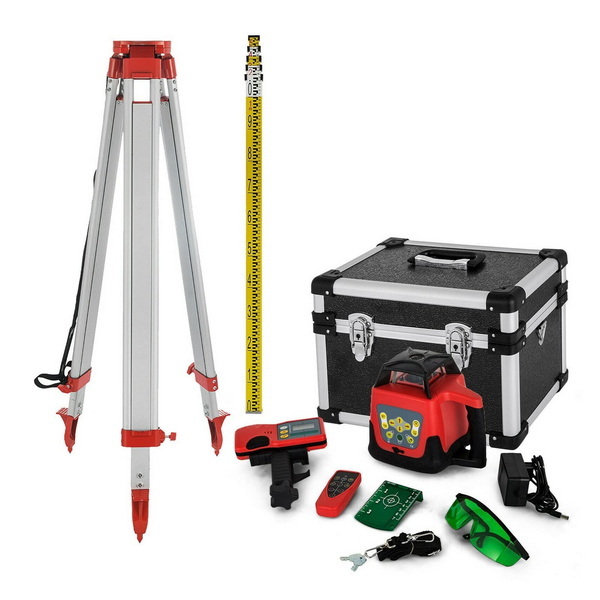

These systems are typically self-leveling electronically, meaning they automatically adjust to maintain accuracy within a specified range, reducing human error and setup time[1][5]. They often include features such as remote controls, laser receivers, and rugged carrying cases for ease of use and durability in harsh construction environments[1][5].
Dual slope functionality allows the laser to project slopes along both the X and Y axes simultaneously. This means that contractors can set complex drainage slopes or landscaping grades without manual calculations or adjustments, simplifying tasks such as driveway grading, parking lot slopes, and foundation drainage[1][2][4].
The system automatically levels itself within a range (commonly ±5° to ±8°), ensuring that the laser plane remains accurate even if the device is slightly bumped or moved during operation. Visual and audible alarms alert the operator if the device exceeds its leveling range, preventing errors[1][5].
These lasers can project both horizontal and vertical laser planes, making them versatile for a wide range of construction tasks. Vertical self-leveling is ideal for aligning posts, walls, footings, and drywall tracks, while horizontal leveling is critical for flatwork and excavation[1][4].
With working ranges extending up to 2,000 feet outdoors (with a receiver) and up to 200 feet indoors, these lasers provide reliable reference points over large construction sites. Accuracy typically reaches ±1/16 inch over 100 feet, ensuring precise measurements for critical infrastructure and finishing work[1][5].

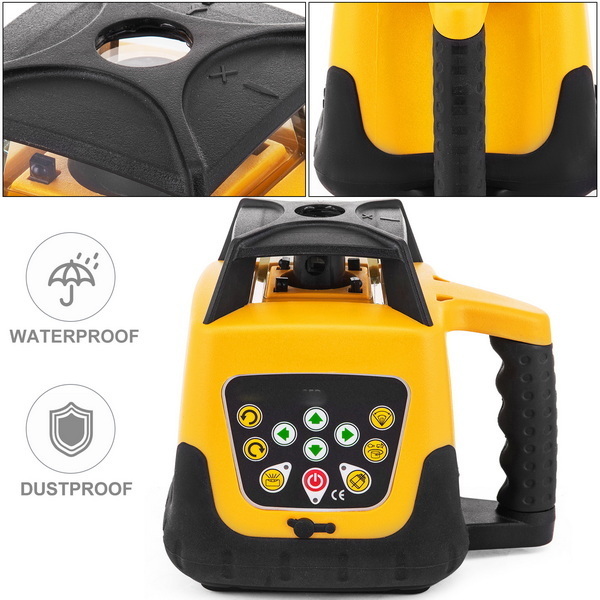

Many models come with rugged housings that protect against drops, dust, and water ingress (IP54 to IP66 ratings), allowing them to withstand tough job site conditions[1][4][5].
- Scan Mode: Some models offer scan modes that simulate a laser line or dot for enhanced visibility[1].
- Remote Control & Motion Control: Remote operation and intuitive controls make adjusting slopes and settings quick and user-friendly[4][5].
- Masking Mode: Limits laser rotation to a defined area for safer and more focused work zones[4].
Traditional leveling methods, such as manual spirit levels or string lines, are prone to human error and can be time-consuming. The electronic dual slope rotary laser system provides a constant, highly accurate reference plane, reducing misalignments and costly rework[3].
Because the system self-levels and allows digital input of slopes, it eliminates manual slope calculations and adjustments. This automation speeds up setup and grading measurements, allowing workers to complete tasks faster and with fewer personnel[2][3].
The ability to project horizontal and vertical planes with dual slopes makes this system suitable for a wide range of construction tasks, including:
- Drainage and slope grading for driveways, parking lots, and landscaping
- Flatwork such as concrete slabs and sidewalks
- Aligning posts, footings, and walls
- Interior layout for drop ceilings, beams, and drywall installation
- Road construction and bridge alignment[1][3][4][6]
Many dual slope rotary lasers now incorporate green laser beams, which are up to 400% more visible than traditional red beams, especially in bright conditions. This enhances accuracy and reduces eye strain during long hours on site[6].
Built to withstand drops, dust, and water, these systems maintain precision even in challenging environments. Their robust design minimizes downtime caused by equipment failure[4][7].

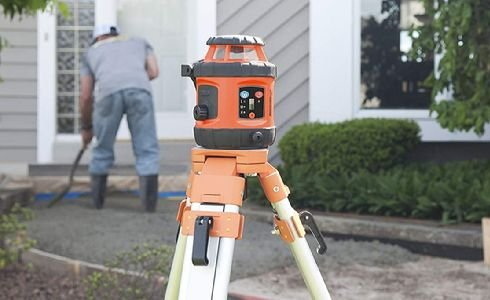

Mount the rotary laser level securely on a tripod, ensuring it is firmly attached to prevent movement that could affect calibration[7].
Turn on the device and allow it to self-level. The system will automatically adjust to a horizontal or vertical plane within its leveling range[1][5].
Using the remote control or onboard interface, dial in the required slope percentages for both axes. The laser will tilt its plane accordingly to project the desired dual slopes[2][4].
Attach the laser receiver to a grade rod or measuring stick. Move it around the site to detect the laser beam. The receiver provides audio and visual signals to indicate whether to raise or lower the rod to reach the correct grade[3][7].
Operators can now proceed with excavation, concrete pouring, or layout tasks, continuously referencing the laser to maintain precise slopes and alignments[3][7].
Dual slope lasers simplify creating accurate drainage slopes for flatwork, preventing water pooling and structural damage[1][2].
Ensuring flat, level concrete slabs with proper slope is critical for durability and safety. These lasers provide consistent reference planes for formwork and finishing[1][5].
Complex landscaping projects often require multiple slopes and elevations. Dual slope lasers enable precise grading and contouring[1].
Used extensively in road grading, bridge building, and asphalt paving, these lasers ensure consistent slopes and alignments over large distances, improving safety and longevity of infrastructure[3][4].
For indoor projects, they assist in aligning walls, ceilings, and other vertical structures with high accuracy[1][6].
The Electronic Dual Slope Rotary Laser Level System is a transformative tool in construction, offering unmatched accuracy, efficiency, and versatility. Its ability to self-level, project dual slopes, and provide reliable reference points over large distances makes it indispensable for modern construction projects ranging from drainage and flatwork to road building and interior layout. By reducing manual errors, speeding up workflows, and improving precision, these systems help contractors deliver higher quality work on time and within budget. Investing in this technology is a smart choice for any construction professional aiming to enhance productivity and project outcomes.
A single slope laser projects a sloped plane on one axis only, either X or Y, suitable for simpler grading tasks. A dual slope laser can project slopes on both axes simultaneously, allowing for more complex grading and drainage applications[2].
Electronic self-leveling automatically adjusts the laser plane to maintain level within a certain range, reducing human error and ensuring consistent accuracy even if the device is bumped or tilted[1][5].
Yes, dual slope rotary lasers are versatile and can be used indoors for tasks such as aligning walls, ceilings, posts, and footings, providing precise vertical and horizontal reference planes[1][6].
Most systems offer interior ranges up to 200 feet and exterior ranges up to 2,000 feet with a receiver. Accuracy is commonly ±1/16 inch over 100 feet, suitable for high-precision construction work[1][5].
These lasers are built to withstand drops, dust, and water exposure, often rated IP54 to IP66, and can survive falls from heights up to 6 feet, making them reliable for tough job site conditions[4][7].
