In the construction industry, precision and efficiency are paramount. One tool that has revolutionized the way professionals achieve accurate leveling and grading is the dual grade rotary laser level. This advanced instrument offers unique advantages over traditional single grade or manual leveling tools, making it an indispensable asset on modern job sites. This article explores why choosing a dual grade rotary laser level is a smart decision for construction projects, detailing its features, benefits, and practical applications.

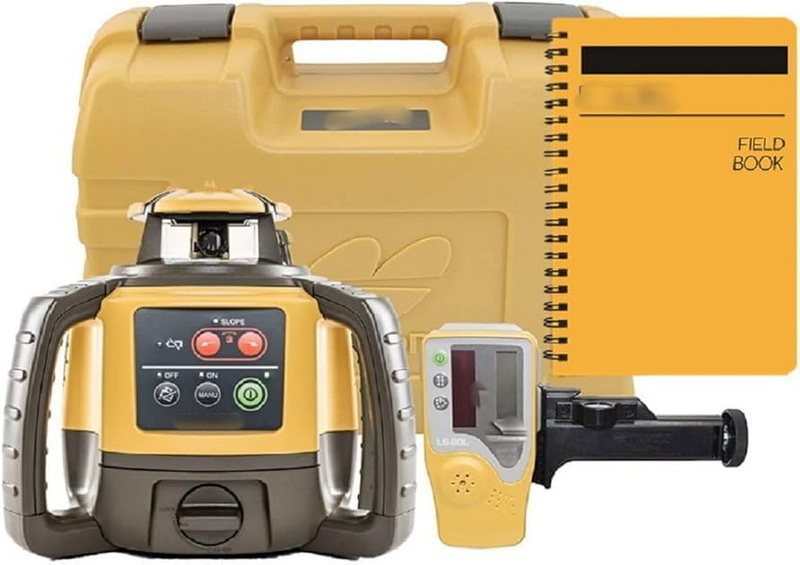

A dual grade rotary laser level is a sophisticated optical leveling device that projects laser beams along two separate axes—typically the X and Y axes—simultaneously. This capability allows it to create compound slopes or grades, which are essential for complex grading tasks in construction. Unlike single grade lasers that provide slope information for only one axis, dual grade lasers enable users to work with two slopes at once, increasing versatility and accuracy in projects requiring precise elevation control[2][5][8].
These lasers are self-leveling and often come with electronic controls that allow operators to dial in specific slope percentages for both axes. This automation reduces manual adjustments and speeds up the grading process significantly[8].
Dual grade lasers can handle slopes on two axes simultaneously, allowing for compound grading. This is crucial for projects like drainage systems, ramps, and complex site grading where more than one slope angle is required[2][6].
Most dual grade rotary lasers feature automatic self-leveling within a certain range (usually ±5°), ensuring that the laser beam remains perfectly level or at the desired slope without manual intervention. This feature enhances accuracy and reduces setup time[2][3][8].
Rotary lasers project a laser dot that spins 360 degrees, creating a continuous laser plane around the job site. This allows measurements and alignments from any angle without repositioning the device, saving time and effort[1][5].
Many modern dual grade lasers come with remote control options, including Bluetooth connectivity and smartphone apps, allowing operators to adjust slopes and check calibration remotely. This convenience improves workflow and reduces the need to physically access the laser during operation[9].
Dual grade rotary lasers are built to withstand tough job site conditions. They often have high IP ratings (e.g., IP66), making them dustproof and water-resistant. They can endure drops and rough handling, minimizing downtime and repair costs[4][7][9].
These lasers typically offer extended battery life, with some models running up to 120 hours on alkaline batteries or substantial hours on rechargeable packs, supporting long workdays without frequent recharging[9].
Dual grade lasers provide highly accurate measurements, often with tolerances as tight as ±1/16" over 100 feet or better. This precision is vital for ensuring that foundations, slabs, drainage systems, and other critical elements meet design specifications without costly rework[3][7].
By projecting two slopes simultaneously and offering 360-degree coverage, dual grade rotary lasers reduce the number of setups and manual calculations needed. This efficiency translates into faster project completion and lower labor costs[1][2][6].
These lasers are suitable for a wide range of construction tasks, including:
- Site preparation and earthworks
- Concrete flatwork and slab pouring
- Drainage and slope grading
- Vertical alignment for walls and beams
- Installation of decks, drop ceilings, and other interior features[2][3][8]
This versatility means one tool can handle many jobs, reducing equipment costs.
With features like self-leveling, remote control, and clear digital displays, dual grade rotary lasers are user-friendly even for operators with minimal training. The ability to control the device remotely and make quick slope adjustments reduces physical strain and improves job site safety[9].
Constructed to withstand harsh environments, dual grade rotary lasers maintain performance in dust, rain, and rough handling. This robustness ensures consistent operation and protects your investment over time[4][7].
Dual grade lasers excel in grading large areas with complex slopes, such as preparing land for foundations or landscaping. Their ability to handle two slopes simultaneously allows for precise contouring and drainage planning[2][6].
When pouring slabs or concrete floors, maintaining exact slopes for drainage or leveling is critical. Dual grade lasers ensure the surface is graded correctly, preventing water pooling and structural issues[3][8].
Proper slope is essential for drainage pipes and sewer lines. Dual grade lasers provide the accuracy needed to set these slopes correctly in two directions, ensuring efficient water flow and compliance with regulations[6][8].
Dual grade lasers are also useful indoors for aligning walls, ceilings, and fixtures. Their ability to project vertical and horizontal planes simultaneously aids in precise installation of drop ceilings, cabinetry, and other interior elements[2][8].
Using a dual grade rotary laser involves several key steps:
1. Setup: Mount the laser on a stable tripod and position it on firm ground.
2. Power On and Self-Level: Turn on the laser and allow it to self-level automatically.
3. Set Grades: Use the control panel or remote to dial in the desired slopes on the X and Y axes.
4. Use Laser Receiver: Employ a laser receiver on a grade rod to detect the laser plane and measure elevations across the site.
5. Adjust as Needed: Move along the site to check and maintain the correct grade, adjusting earthworks or construction accordingly[8].
Choosing a dual grade rotary laser level for construction projects offers unmatched precision, efficiency, and versatility. Its ability to project two slopes simultaneously, combined with self-leveling technology and rugged design, makes it ideal for a wide range of tasks from site grading to interior alignment. Investing in a dual grade rotary laser level not only improves accuracy and productivity but also reduces labor costs and project timelines, making it a valuable tool for contractors and builders aiming for professional, reliable results.
A single grade laser provides slope information on only one axis, while a dual grade laser can project slopes on two axes simultaneously, allowing for compound grading and more complex slope setups[2][5].
Yes, dual grade rotary lasers are designed for versatile use and can operate indoors for alignment and layout tasks as well as outdoors for site grading and earthworks[2][3].
They typically offer high accuracy, often around ±1/16 inch over 100 feet, which is sufficient for most construction grading and leveling tasks[3][7].
Most dual grade lasers have a self-leveling range of about ±5 degrees, allowing them to automatically adjust within this tilt range for accurate slope projection[2][3][8].
Battery life varies by model, but many dual grade lasers offer extended operation times, such as up to 120 hours on alkaline batteries or significant hours with rechargeable packs[9].
