Rotary laser levels are essential tools in construction and surveying, providing accurate horizontal and vertical references for leveling tasks. However, when a rotary laser level fails to spin, it can significantly hinder project progress. This article will explore common reasons why a rotary laser level might not be spinning and provide troubleshooting steps to resolve these issues.

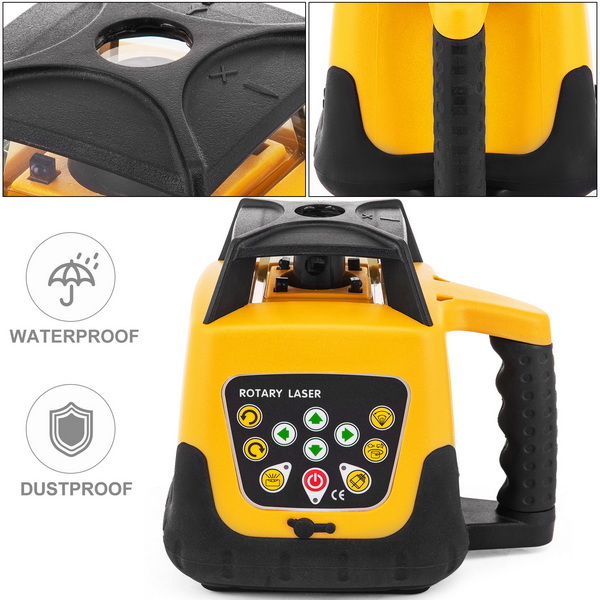

Rotary laser levels use a rotating laser beam to project a 360-degree reference line around a room or site. This beam is typically generated by a laser diode and rotated by a motor-driven prism. The level ensures that the beam remains perfectly horizontal or vertical, depending on its setting.
1. Laser Emission: A laser diode emits a beam of light.
2. Prism Rotation: The beam is directed through a rotating prism, which spins the beam around the room.
3. Self-Leveling Mechanism: The level adjusts itself to ensure the beam remains perfectly horizontal or vertical.
A common reason for a rotary laser level not spinning is insufficient battery power. Ensure that the batteries are fully charged or replaced if necessary. Check the battery compartment for any signs of damage or corrosion.
The motor and belt system are crucial for spinning the laser beam. If the motor is faulty or the belt is worn out, the laser will not spin. In some models, you can inspect the belt through a window without disassembling the unit.
If the laser level is not within its self-leveling range (usually ±5 degrees), it may not spin. Ensure the device is placed on a level surface and within its operational range.
Environmental factors like wind or vibrations can affect the laser's ability to self-level and spin. Ensure the device is stable and protected from wind.
In some cases, a faulty circuit board can prevent the laser from spinning. This may require professional repair.
Dust and debris can accumulate inside the device, affecting its performance. Regular cleaning can help prevent these issues.
A misaligned or damaged prism can prevent the laser beam from rotating properly. Check for any signs of damage or misalignment.
1. Check Power Source: Ensure the device is powered on and batteries are sufficient.
2. Inspect Motor and Belt: Look for signs of wear or damage.
3. Verify Self-Leveling Range: Ensure the device is within its operational range.
4. Stabilize the Environment: Protect the device from wind and vibrations.
5. Consult Manual or Professional: Refer to the user manual or contact a professional for complex issues.
6. Clean the Device: Regularly clean the device to prevent dust buildup.
7. Check Prism Alignment: Ensure the prism is properly aligned.
For more complex issues, advanced troubleshooting techniques may be necessary:
Some rotary laser levels come with built-in diagnostic tools that can help identify specific problems. Refer to the user manual for instructions on how to use these tools.
Ensure that the device's firmware is up to date, as updates may resolve known issues.
In some cases, performing a hard reset can resolve software-related issues. However, this should be done with caution as it may erase stored settings.
Regular maintenance can help prevent issues with your rotary laser level:
Regularly clean the device to prevent dust and debris buildup.
Store the device in a protective case and handle it with care to prevent damage.
Regularly calibrate the device to ensure accuracy. Calibration is typically required after impact or if the device is not providing accurate readings.
Ensure the device is placed on a stable and level surface, away from direct sunlight and reflective surfaces.
Use tripods or mounts to stabilize the device and prevent vibrations.
In bright conditions, the laser beam may be difficult to see. Use a detector or receiver to enhance visibility.
A rotary laser level not spinning can be due to a variety of reasons, ranging from simple battery issues to more complex mechanical or electrical faults. By following the troubleshooting steps outlined above, users can often resolve these problems without needing professional assistance. However, for more serious issues, it may be necessary to consult a service manual or contact a professional repair service.
- Answer: Check if the motor or belt is faulty. Ensure the device is within its self-leveling range and stable.
- Answer: It depends on the model and your technical expertise. Some repairs may require specialized tools or professional assistance.
- Answer: Typically, rotary laser levels can self-level within ±5 degrees. If it's outside this range, it may not spin.
- Answer: Wind, vibrations, and reflective surfaces can affect the laser's performance.
- Answer: Calibration is usually required after impact or if the device is not providing accurate readings. Refer to the user manual for specific calibration procedures.
