Choosing the right rotary laser level can significantly impact the efficiency and accuracy of your construction or surveying projects. Whether you're a professional contractor or a DIY enthusiast, investing in a quality rotary laser level is crucial for ensuring precise measurements and alignments. This comprehensive guide will help you navigate the various options available and make an informed decision on which rotary laser level to buy.
Rotary laser levels are versatile tools that project a 360-degree laser beam, creating a level reference line around an entire room or job site. They are essential for tasks such as setting foundations, installing drop ceilings, laying out walls, and grading landscapes.
The accuracy of a rotary laser level is paramount. Most professional-grade models offer accuracy within ±1/16 inch at 100 feet. For example, the Topcon RL-H5A Self-Leveling Construction Laser boasts an impressive accuracy of ±1/16 inch at 100 feet[1]. When selecting a rotary laser level, ensure that its accuracy meets the requirements of your projects.
The working range of a rotary laser level determines how far it can project its beam effectively. High-end models can have a diameter range of up to 2,600 feet or more. The Topcon RL-H5A, for instance, offers a maximum range of 2,600 feet in diameter[1]. Consider the size of your typical work areas when evaluating the range you need.
Self-leveling rotary laser levels automatically adjust to find level within a certain range, usually around ±5 degrees. This feature saves time and ensures accuracy without manual adjustments. The DeWalt 20V MAX Red Rotary Laser, for example, includes a self-leveling feature that enhances its ease of use[3].
Long battery life is crucial for uninterrupted work on job sites. Many modern rotary laser levels offer extended battery life, with some models providing up to 100 hours of runtime. The Topcon RL-H5A stands out with its impressive battery life of up to 100 hours[1].
Construction sites can be harsh environments, so a robust rotary laser level is essential. Look for models with high IP (Ingress Protection) ratings, such as IP66, which indicates strong protection against dust and water. The Topcon RL-H5A, with its IP66 rating, exemplifies this durability[1].
The Topcon RL-H5A is widely regarded as one of the best rotary laser levels available. Its combination of accuracy, range, and durability makes it a top choice for professionals[1].
Key Features:
- Accuracy: ±1/16 inch at 100 feet
- Range: 2,600 feet diameter
- Battery Life: Up to 100 hours
- IP66 rated for durability
DeWalt's offering is known for its bright red laser beam and versatility, making it suitable for both indoor and outdoor use[3].
Key Features:
- Accuracy: ±1/8 inch at 100 feet
- Range: 1,500 feet diameter
- Vertical alignment capability
- Includes high-quality grade rod and accessories
This model offers excellent value for those seeking a reliable rotary laser level without breaking the bank[3].
Key Features:
- Self-leveling within ±5 degrees
- Includes detector and tripod
- Suitable for both indoor and outdoor use
When deciding which rotary laser level to buy, consider the following factors:
1. Project Requirements: Assess the typical size and complexity of your projects. Larger job sites may require a longer range and higher accuracy.
2. Indoor vs. Outdoor Use: Some models are better suited for indoor work, while others excel in outdoor environments. Choose a versatile option if you need both.
3. Frequency of Use: If you'll be using the rotary laser level frequently, invest in a durable, professional-grade model with long battery life.
4. Budget: While it's tempting to opt for the cheapest option, remember that accuracy and reliability are crucial. Balance cost with quality and features.
5. Additional Features: Consider extras like remote controls, digital displays, or compatibility with smartphone apps for added convenience.
Once you've chosen your rotary laser level, proper setup and use are crucial for accurate results. Here's a basic guide:
1. Set up the tripod on a stable surface.
2. Mount the rotary laser level securely on the tripod.
3. Turn on the device and allow it to self-level (if applicable).
4. Adjust the rotation speed and beam type as needed for your task.
5. Use the laser detector to locate the beam at longer distances.
To ensure the longevity and accuracy of your rotary laser level:
- Clean the device after each use, especially if used in dusty environments.
- Store in a protective case when not in use.
- Regularly check and calibrate the device according to the manufacturer's instructions.
- Keep batteries charged or have spares on hand.
Rotary laser levels are not just for basic leveling tasks. They can be used for a variety of advanced applications:

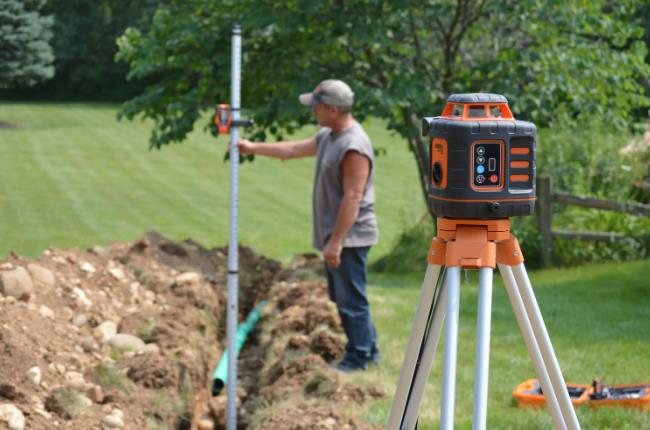

For landscaping or construction projects that require precise grading, a rotary laser level can be invaluable. By setting up the laser and using a detector mounted on a grade rod, you can accurately measure and adjust ground levels over large areas.
When installing long runs of fencing or building walls, a rotary laser level ensures that everything stays perfectly straight and level, even over significant distances.
For new construction, rotary laser levels are essential in ensuring that foundations are level and at the correct height. This is crucial for the structural integrity of the entire building.
In commercial spaces, rotary laser levels make the installation of drop ceilings much more efficient and accurate. They provide a consistent reference point for hanging the grid system.
For plumbing or drainage projects, rotary laser levels help maintain the correct slope for pipes over long distances, ensuring proper flow and preventing future issues.
The field of rotary laser levels is constantly evolving, with new technologies enhancing their capabilities:
Some newer models use green laser beams instead of red. Green lasers are often more visible in bright conditions, extending the effective range of the tool.
Advanced rotary laser levels now come with digital displays that provide precise numerical readouts of slopes and heights, increasing accuracy and ease of use.
Integration with smartphone apps allows for remote control and data logging, making it easier to manage complex projects and share information with team members.
To help you make an informed decision, here's a comparison of some top rotary laser level models:
| Model | Accuracy | Range | Battery Life | IP Rating | Price Range |
|---|---|---|---|---|---|
| Topcon RL-H5A | ±1/16" @ 100ft | 2,600ft | 100 hours | IP66 | $$$$ |
| DeWalt 20V MAX | ±1/8" @ 100ft | 1,500ft | 20 hours | IP54 | $$$ |
| Johnson Self-Leveling | ±1/8" @ 100ft | 800ft | 24 hours | IP54 | $$ |
| Spectra Precision LL300N | ±3/32" @ 100ft | 1,650ft | 90 hours | IP66 | $$$$ |
| Bosch GRL800-20HVK | ±1/16" @ 100ft | 800ft | 30 hours | IP56 | $$$ |
Choosing the right rotary laser level is a crucial decision that can significantly impact the efficiency and accuracy of your projects. By considering factors such as accuracy, range, durability, and specific features, you can select a tool that best fits your needs and budget. Whether you opt for a high-end model like the Topcon RL-H5A or a more budget-friendly option, investing in a quality rotary laser level will undoubtedly enhance your work and save time in the long run.
Remember to properly maintain and calibrate your rotary laser level to ensure its longevity and continued accuracy. With the right tool and proper use, you'll be well-equipped to tackle a wide range of leveling tasks with precision and confidence.
Calibration frequency depends on usage and handling. As a general rule, calibrate your rotary laser level at least once a year or after any significant impact or temperature change. Some manufacturers recommend more frequent calibration for heavy use. Always follow the manufacturer's guidelines for your specific model.
Yes, but visibility may be reduced. Many rotary laser levels come with detectors that can pick up the laser beam even in bright conditions. For outdoor use, consider models with brighter beams or green laser technology, which is often more visible in daylight. Using the detector in conjunction with the laser ensures accuracy regardless of lighting conditions.
Manual rotary laser levels require the user to adjust the level manually using bubble vials. Self-leveling models automatically adjust within a certain range (typically ±5 degrees) to find level. Self-leveling models are generally more accurate and easier to set up, making them preferable for most professional applications. However, manual models can be more affordable and suitable for simpler tasks.
Green laser beams are typically more visible to the human eye, especially in bright conditions or over longer distances. However, green laser levels are often more expensive and may have shorter battery life. Red lasers are more common, less expensive, and generally sufficient for most indoor applications. Consider your typical working environment and budget when choosing between red and green lasers.
Many rotary laser levels offer both horizontal and vertical operation modes. In vertical mode, the laser can be used for plumb alignment, wall layout, and other vertical applications. When choosing a rotary laser level, check if it offers vertical operation if this feature is important for your work. Some models, like the DeWalt 20V MAX, specifically highlight their vertical alignment capabilities.
