The Bosch LR30 Rotary Laser Level Receiver is a versatile tool designed to enhance precision and efficiency in various construction and surveying tasks. It is specifically engineered to detect and align with rotating laser beams, providing accurate measurements and layouts. This article will delve into the features, applications, and benefits of the Bosch LR30, exploring how it improves accuracy in different environments.

bosch lr30 rotary laser level receiver

Introduction to the Bosch LR30

The Bosch LR30 is a red-beam rotary laser receiver, capable of detecting laser beams within the 635 to 650 nm wavelength range. It is designed for both indoor and outdoor use, making it a valuable asset for construction professionals and surveyors. The receiver features an ergonomic grip, indicator lights, and audible signals to facilitate easy alignment and positioning. Additionally, it includes a strong magnet for secure attachment to metal surfaces, enhancing stability during operation.

Key Features of the Bosch LR30

- Reception Accuracy: The Bosch LR30 offers adjustable reception accuracy, with settings for "exact" and "mid-range" precision. The exact setting provides an accuracy of ±1.5 mm, while the mid-range setting offers ±3 mm. This flexibility allows users to adapt the receiver to different project requirements and environmental conditions[2][4].

- Working Range: The receiver can detect laser beams at distances ranging from 1 to 500 feet (approximately 1 to 150 meters), although this range may be affected by unfavorable conditions such as direct sunlight[1][2].

- Reception Angle and Rotation Speed: It supports a reception angle of 45 degrees and can handle rotation speeds of 150, 300, and 600 minutes per minute, making it compatible with a variety of rotary lasers[2][4].

- Environmental Durability: The Bosch LR30 operates effectively in temperatures from -10°C to 50°C and can withstand relative humidity up to 90%. It also withstands storage temperatures between -20°C and 70°C and is classified under pollution degree 2 according to IEC 61010-1[2][4].

Applications of the Bosch LR30

The Bosch LR30 is designed to enhance efficiency in various construction tasks, including:

- Layout and Leveling: It is ideal for ensuring precise horizontal and vertical alignments, which are crucial for foundation work, wall construction, and floor installation. The receiver's ability to detect laser beams over long distances makes it particularly useful for large-scale projects[2].

- Thru-Wall Detection: The receiver's accuracy adjustment feature and mount make it suitable for detecting laser beams through walls, aiding in tasks like plumbing and electrical installations. This capability helps ensure that pipes and wiring are correctly aligned and positioned[2].

- Outdoor Construction: Its durable design and compatibility with leveling rods provide stability and precision in outdoor environments, such as grading and excavating projects. The receiver's ergonomic grip and secure attachment options ensure that it remains in place even in windy or rough conditions[5].

How the Bosch LR30 Improves Accuracy

The Bosch LR30 enhances accuracy in several ways:

1. Adjustable Reception Accuracy: Users can select between exact and mid-range accuracy settings, allowing for precise alignment based on the specific needs of the project. This flexibility is particularly useful in environments where precision is critical, such as in high-rise construction or complex engineering projects[2][4].

2. Indicator Lights and Audible Signals: The combination of visual and audio feedback helps users quickly identify when the laser beam is centered or off-center, facilitating precise adjustments. This dual feedback system reduces the time spent on alignment, increasing overall efficiency[1][2].

3. Mounting Options: The receiver can be securely attached to measuring rods or metal surfaces using its holder or magnet, reducing movement and ensuring consistent readings. This stability is crucial for maintaining accuracy over extended periods of use[4].

4. Environmental Adaptability: While environmental conditions like sunlight can affect accuracy, the Bosch LR30's design allows it to perform well across a range of temperatures and humidity levels. This adaptability makes it suitable for use in diverse construction environments, from indoor renovations to outdoor infrastructure projects[2][4].

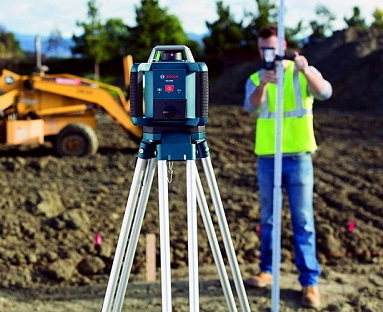

best rotary laser level uk

Comparison with Other Laser Receivers

Other laser receivers, such as the Spectra Precision LR30, offer similar functionalities but may differ in specific features like battery life, mounting options, and operating range. For instance, the Spectra Precision LR30 is known for its rugged design and compatibility with various laser transmitters, offering a broader operating range and more mounting options. However, the Bosch LR30 stands out with its ergonomic design and adjustable accuracy settings, making it a preferred choice for tasks requiring precision and adaptability[3].

Advanced Features and Accessories

The Bosch LR30 can be integrated with a variety of accessories to enhance its functionality. For example, it can be paired with leveling rods to improve stability in outdoor environments. Additionally, the receiver's compatibility with different types of rotary lasers allows users to select the most appropriate laser for their specific needs, whether it be for horizontal leveling or vertical alignment[5].

Integration with Laser Levels

When used in conjunction with laser levels, the Bosch LR30 provides a comprehensive solution for ensuring precise layouts and alignments. Laser levels offer the ability to project lines or points over long distances, which the Bosch LR30 can detect and align with, facilitating tasks such as wall construction and floor installation. This integration is particularly beneficial in large-scale construction projects where maintaining precise alignments is critical[3].

Thru-Wall Detection Techniques

For thru-wall detection, the Bosch LR30 can be mounted on a rod or attached to a wall using its magnet, allowing users to detect laser beams through walls. This capability is invaluable for plumbing and electrical installations, as it ensures that pipes and wiring are correctly positioned without the need for extensive drilling or excavation[4].

Best Practices for Using the Bosch LR30

To maximize the effectiveness of the Bosch LR30, users should follow several best practices:

- Calibration: Ensure that the receiver is properly calibrated before use to ensure accurate readings. Calibration involves adjusting the receiver's sensitivity and accuracy settings to match the specific conditions of the project[4].

- Environmental Considerations: Be aware of environmental factors that could affect accuracy, such as direct sunlight or extreme temperatures. Adjust the receiver's settings accordingly to maintain precision[2][4].

- Regular Maintenance: Regularly inspect and maintain the receiver to ensure optimal performance. This includes cleaning the lens and checking the battery level to prevent unexpected shutdowns[4].

Conclusion

The Bosch LR30 Rotary Laser Level Receiver is a valuable tool for enhancing precision and efficiency in construction and surveying tasks. Its adjustable accuracy settings, durable design, and versatile mounting options make it suitable for a wide range of applications. By understanding its features and applications, users can optimize their workflow and achieve more accurate results.

alton rotary laser level lowes

Frequently Asked Questions

1. What is the working range of the Bosch LR30 Rotary Laser Level Receiver?

The Bosch LR30 can detect laser beams at distances ranging from 1 to 500 feet (approximately 1 to 150 meters), although this range may be reduced by unfavorable environmental conditions like direct sunlight[1][2].

2. How does the Bosch LR30 improve accuracy in construction tasks?

The Bosch LR30 enhances accuracy through its adjustable reception accuracy settings, indicator lights, and audible signals. It also offers secure mounting options to reduce movement and ensure consistent readings[2][4].

3. What are the environmental operating conditions for the Bosch LR30?

The Bosch LR30 operates effectively in temperatures from -10°C to 50°C and can withstand relative humidity up to 90%. It is also designed to perform well in various lighting conditions, although direct sunlight may affect accuracy[2][4].

4. Can the Bosch LR30 be used with different types of rotary lasers?

Yes, the Bosch LR30 is compatible with rotary lasers operating at rotation speeds of 150, 300, and 600 minutes per minute, making it versatile for use with different laser models[2][4].

5. How long does the battery of the Bosch LR30 last?

The Bosch LR30 uses a single 9V battery, which provides an approximate operating time of 30 hours. It is recommended to remove the battery when not in use for extended periods to preserve battery life[2][4].
