Choosing the best outdoor rotary laser level can be daunting, especially with the multitude of options available in the market. A rotary laser level is an indispensable tool for various outdoor projects, including construction, landscaping, and surveying. It provides a 360-degree horizontal or vertical plane, ensuring accuracy and efficiency in leveling, aligning, and grading tasks[2]. This article delves into the key features, benefits, and top contenders for the best outdoor rotary laser level, helping you make an informed decision.
A rotary laser level is a sophisticated device that projects a beam of light, rotating at high speed to create a 360-degree plane of light[2]. This plane serves as an accurate reference for leveling and alignment tasks across a large area. Unlike traditional spirit levels, rotary laser levels offer a continuous and visible reference, making it easier to achieve precise measurements over long distances[2].
The core component of a rotary laser level is a diode that emits a laser beam. This beam passes through a rotating head, which spins to create a continuous plane of light. For outdoor use, where the laser beam may not be visible in bright sunlight, a laser receiver or detector is used[2]. The receiver detects the laser beam and provides visual and audible signals to guide the user to the exact level plane[2].
1. Laser Unit: The main body of the laser level, housing the laser diode and rotating head.
2. Rotating Head: The mechanism that spins the laser beam to create a 360-degree plane.
3. Laser Receiver/Detector: A device used to detect the laser beam in outdoor conditions.
4. Tripod: A stable base to mount the laser level for accurate and consistent measurements.
5. Grade Rod: A measuring stick used with the laser receiver to determine height differences.
Rotary laser levels offer several advantages over traditional leveling methods, particularly for outdoor applications.
Rotary laser levels provide superior accuracy compared to spirit levels or manual leveling techniques[2]. The best outdoor rotary laser level can achieve an accuracy of ±1/16 inch at 100 feet, ensuring precise measurements for critical tasks[1].
With a 360-degree laser plane, workers can easily align objects, surfaces, and elevations without the need for manual adjustments[2]. This significantly reduces the time and effort required for leveling tasks, improving overall project efficiency.
The best outdoor rotary laser level has an extensive range, reaching up to 2,600 feet in diameter[1]. This makes it suitable for large construction sites and landscaping projects where measurements need to be taken over considerable distances.
Rotary laser levels can be used for a wide range of outdoor applications, including:
- Construction: Leveling foundations, walls, and floors.
- Landscaping: Grading land, installing fences, and aligning garden features.
- Surveying: Measuring elevations and creating contour maps.
- Agriculture: Irrigation and drainage projects.
Selecting the best outdoor rotary laser level requires careful consideration of several factors to ensure it meets the specific needs of your project.
Accuracy is paramount when choosing a laser level. Look for models with an accuracy of ±1/8 inch at 50 feet or better for optimal results[1].
Consider the size of your typical work area. A longer range is beneficial for larger projects, but it's essential to balance range with accuracy[1].
Self-leveling functionality is a crucial feature that automatically ensures the laser beam is horizontal and level[1]. This saves time and reduces the risk of errors.
Outdoor environments can be harsh, so choose a laser level with a rugged design and a high protection rating (IP rating) to withstand dust, water, and impacts[1].
Long battery life is essential for extended outdoor use. Look for models that offer at least 20 hours of continuous operation, or consider a rechargeable battery pack[1].
Red laser beams can be difficult to see in bright sunlight. Some models offer green laser beams, which are more visible but also more expensive[1]. Alternatively, a laser receiver can be used to detect the beam.
Adjustable rotation speeds allow you to optimize the visibility of the laser beam for different tasks[1]. Higher speeds create a more solid line, while lower speeds conserve battery power.
Consider additional features such as:
- Slope Adjustment: For grading and drainage projects[1].
- Vertical Alignment: For building walls and other vertical structures[1].
- Remote Control: For convenient operation from a distance.
Based on the criteria discussed above, here are some of the top contenders for the best outdoor rotary laser level:
- Accuracy: ±1/16 inch at 100 feet[1]
- Maximum Range: 2,600 feet (diameter)[1]
- Protection Rating: IP66[1]
- Battery Life: Up to 100 hours[1]

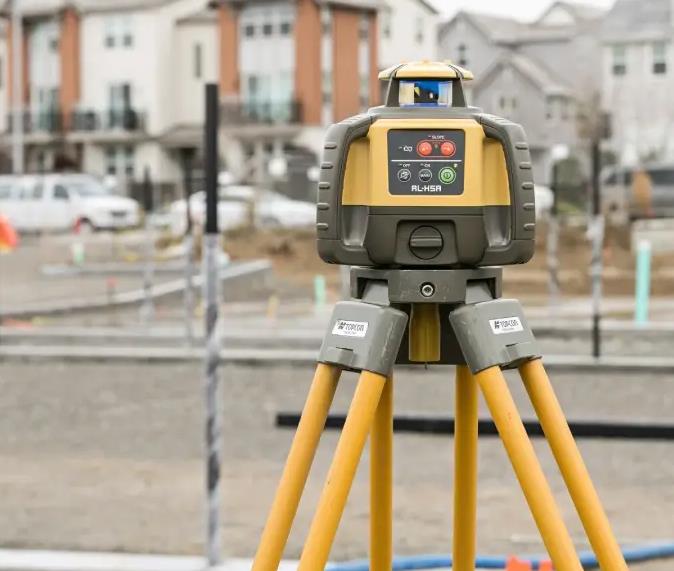

The Topcon RL-H5A is highly accurate and durable, making it ideal for construction sites. Its self-leveling feature and long battery life enhance usability[1]. However, it does not include a tripod or grade rod[1].
- Accuracy: ±1/8 inch at 100 feet[1]
- Maximum Range: 1,500 feet (diameter)[1]
- Protection Rating: IP54[1]
- Vertical Alignment: Yes[1]
The DeWalt 20V MAX offers vertical alignment in addition to horizontal leveling, making it suitable for building walls. It includes a high-end grade rod, battery, charger, and carrying case[1].
- Accuracy: ±3/32 inch at 100 feet[1]
- Maximum Range: 1,650 feet (diameter)[1]
- Protection Rating: IP66[1]
- Battery Life: Up to 90 hours[1]
The Spectra Precision LL300N-2 is known for its high accuracy and resistance to the elements. It has been drop-tested to withstand harsh conditions[1].
- Accuracy: ±1/8 inch at 50 feet[1]
- Maximum Range: 800 feet (diameter)[1]
- Protection Rating: IP54[5]
- Kit Includes: Tripod, red-tinted glasses, a flat laser target, a 13-foot grading rod, a laser receiver, a bracket for either wall-mount or drop-ceiling installation, and a padded soft case[1]
The Johnson rotary laser level kit features everything users need to start shooting grade right out of the box, making it one of the most affordable models on the market today[1].
Key specifications[5]:
- Self-leveling: ±5°
- Rotating speed: 600 RPM
- Battery life: 100 hrs (alkaline); 60 hrs (Ni-MH)
- 5-year warranty
Proper maintenance is essential to ensure the longevity and accuracy of your rotary laser level.
Keep the laser level clean and free from dust and debris. Use a soft, dry cloth to wipe the lens and housing after each use.
Store the laser level in a dry, secure location when not in use. Use the carrying case provided to protect it from impacts and environmental damage.
Regularly calibrate the laser level to ensure accuracy. Follow the manufacturer's instructions for calibration procedures.
Remove the batteries when storing the laser level for extended periods to prevent corrosion. Use high-quality batteries and replace them as needed.
The best outdoor rotary laser level is a valuable tool for achieving accurate and efficient leveling in various outdoor projects. By considering factors such as accuracy, range, durability, and battery life, you can choose a model that meets your specific needs and budget. The Topcon RL-H5A, DeWalt 20V MAX, and Spectra Precision LL300N-2 are among the top contenders, each offering unique features and benefits. Proper maintenance will ensure your laser level provides reliable performance for years to come.
Green beam laser levels are more visible than red beam laser levels, especially in bright outdoor conditions[1]. However, green beam lasers are typically more expensive[1].
Mount the laser receiver on a grade rod and turn it on. The receiver will detect the laser beam and emit visual and audible signals to guide you to the level plane[2].
An IP (Ingress Protection) rating indicates the level of protection a device has against dust and water[1]. A higher IP rating means better protection, which is crucial for outdoor use[1].
Calibrate your rotary laser level at least once a year, or more frequently if it is subjected to rough handling or extreme conditions.
Yes, many rotary laser levels can be used for both indoor and outdoor projects[1]. However, some models are specifically designed for outdoor use and may not be suitable for small indoor spaces.
