CNC (Computer Numerical Control) machines have revolutionized manufacturing by allowing for precise and automated cutting, shaping, and engraving of various materials. One of the key components in CNC machining is the concept of rotational axes, particularly the letters assigned to these axes. This article will delve into the specifics of the rotational axis letters used in CNC knife cutters, their significance, and how they impact the functionality of these machines.

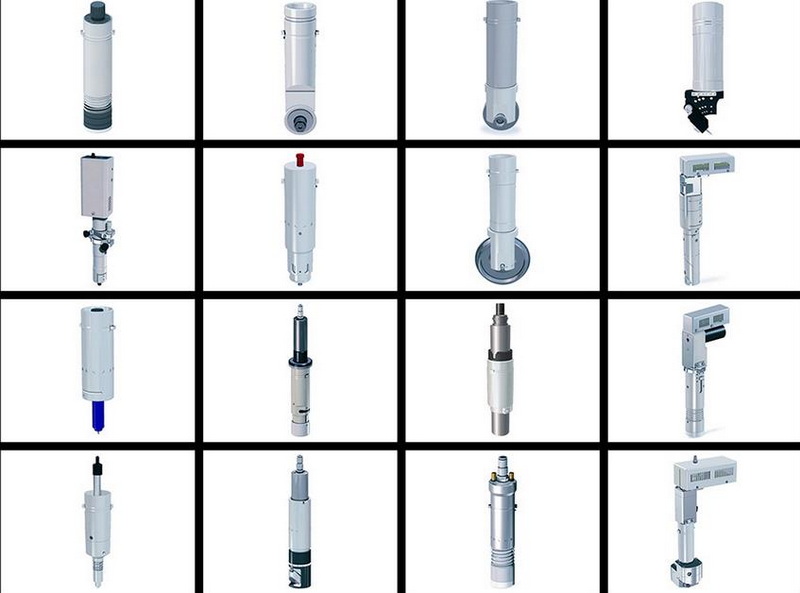

CNC knife cutters are specialized machines designed to cut materials such as fabric, vinyl, foam, and other flexible materials. These machines utilize a knife tool that moves along predefined paths to create intricate designs and shapes. The efficiency and accuracy of these cutters are significantly influenced by their axis configuration.
- Oscillating Knife Cutters: These machines use a knife that moves up and down rapidly to slice through materials.

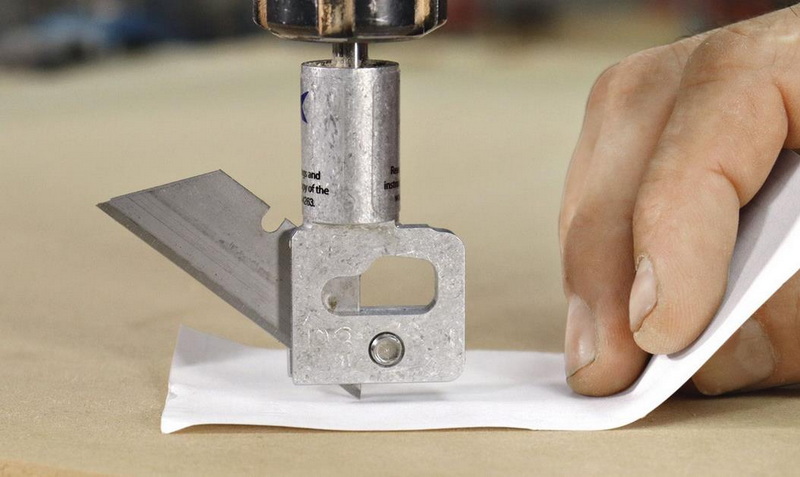

- Drag Knife Cutters: A drag knife is held in a fixed position while the machine moves the material beneath it. This type is ideal for cutting thin materials like vinyl.
- Rotary Knife Cutters: These utilize a rotating blade that can cut through thicker materials with precision.
In CNC machining, axes are crucial for defining the movement and orientation of tools. The letters assigned to these axes indicate their specific functions:
- X Axis: Typically represents horizontal movement.
- Y Axis: Represents vertical movement.
- Z Axis: Indicates depth or height movement.
- A, B, C Axes: These represent rotational movements around the X, Y, and Z axes respectively.
The rotational axes allow CNC machines to perform more complex operations by enabling multi-dimensional cutting.

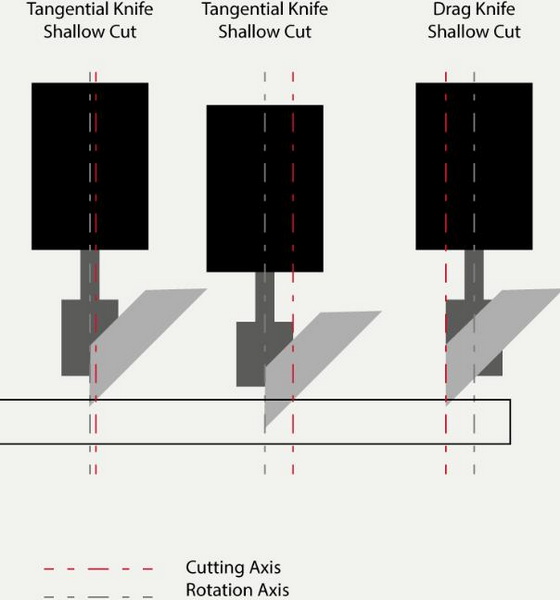

The C axis is specifically important in CNC knife cutters as it refers to the rotational axis around the Z-axis. This axis allows the cutter to rotate around its vertical axis, enabling it to cut at different angles and orientations without needing to reposition the entire workpiece.
- Curved Cuts: The ability to rotate allows for smooth curves and intricate designs that would be challenging with fixed-axis movements.
- Multi-Angle Cutting: The C axis enables cuts at various angles, which is essential for creating complex shapes or patterns.
- Improved Efficiency: By utilizing rotational movements, CNC knife cutters can reduce setup times and increase productivity.
To understand how these axes function in a real-world setting, let's look at a typical workflow involving a CNC knife cutter:
1. Design Phase: Using CAD (Computer-Aided Design) software, operators create detailed designs that specify cutting paths and angles.
2. Tool Path Generation: CAM (Computer-Aided Manufacturing) software translates these designs into machine-readable code (G-code), which includes commands for all axes.
3. Machine Setup: The CNC machine is set up with the appropriate knife tool based on the material being cut.
4. Execution: As the machine operates, it utilizes its X, Y, Z, and C axes to follow the programmed paths accurately. The C axis allows for rotation during cutting operations.
5. Final Product: The result is a precisely cut piece that matches the original design specifications.
Utilizing rotational axes in CNC knife cutting provides several advantages:
- Enhanced Precision: Rotational movements allow for more accurate cuts compared to linear-only movements.
- Versatility: Machines equipped with multiple rotational axes can handle a wider range of materials and designs.
- Reduced Material Waste: Precise cuts minimize excess material loss during production.
In today's fast-paced manufacturing environment, efficiency is key, and CNC knives deliver on this front. Once programmed, a CNC knife can operate continuously, producing identical cuts with minimal human intervention. This level of automation not only increases productivity but also reduces the likelihood of human error, ensuring consistent quality across large production runs.
For businesses dealing with custom orders or short production runs, CNC knives offer flexibility to quickly switch between different cutting patterns without extensive retooling. This adaptability is particularly valuable in industries with rapidly changing consumer demands or seasonal product variations.
Moreover, the efficiency of CNC knives extends beyond the cutting process itself. Many CNC systems can be integrated with design software, allowing for seamless transitions from digital designs to physical products. This integration streamlines the entire production workflow from concept to final cut, reducing time-to-market for new products.
As new materials are developed for various applications, the need for cutting tools that can handle these materials effectively becomes crucial. CNC knives are at the forefront of working with innovative materials due to their precise control over cutting speed, depth, and angle.
For instance:
- In aerospace applications where composite materials like carbon fiber-reinforced polymers (CFRP) are used extensively, CNC knives provide clean cuts without delamination or fraying.
- In custom knife making, advanced materials like titanium and high-performance steels can be shaped with high precision using CNC technology.
As we look toward the future, advancements in artificial intelligence (AI), machine learning (ML), and automation are likely to enhance CNC systems' capabilities even further. Here are some emerging trends:
- AI Integration: AI algorithms will analyze data collected during machining processes to optimize cutting strategies automatically.
- Automation Enhancements: Increased automation will lead to faster setups and reduced human error through robotic arms handling material loading/unloading tasks.
- Sustainability Focus: With growing concerns about environmental impact, future CNC technologies will likely prioritize eco-friendly practices by minimizing waste through efficient material use.
Understanding the rotational axis letters used in CNC knife cutters is essential for operators aiming to maximize their machine's capabilities. The C axis plays a pivotal role in enabling complex cuts and enhancing overall efficiency. As technology advances, integrating sophisticated rotational movements will continue shaping the future of CNC machining. Embracing these innovations will unlock new possibilities in precision cutting across various industries.
The C axis allows for rotation around the Z-axis, enabling angled cuts and enhancing design complexity.
Ensure proper calibration of all axes, select appropriate tools based on material type, and use accurate G-code generated from your CAD/CAM software.
No, drag knives are best suited for thin materials like vinyl; thicker or more rigid materials may require an oscillating or rotary knife cutter.
You will need CAD software for design creation and CAM software for generating tool paths compatible with your CNC machine.
Regular maintenance should be conducted after every major project or at least once a month to ensure optimal performance and longevity of your machine.
