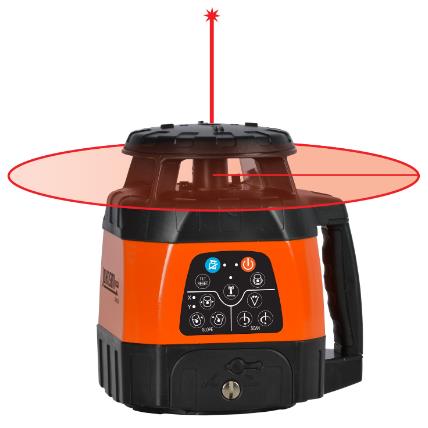

A rotary laser level is a sophisticated tool used primarily in construction and surveying to create a precise horizontal or vertical reference plane. Unlike traditional levels, which provide a single line of sight, rotary laser levels project a continuous 360-degree beam of light, allowing for greater accuracy and efficiency in various applications. This article will explore the functionality, types, applications, and advantages of rotary laser levels, as well as provide guidance on their use.
Rotary laser levels operate by emitting a laser beam that rotates at high speeds, typically between 600 to 1,000 revolutions per minute. This rapid rotation creates the optical illusion of a solid line of light that can be seen around the entire room or outdoor space. The device uses diode technology to ensure that the beam is both focused and visible over long distances.
1. Laser Diode: The source of the laser light.
2. Rotating Prism: Reflects the laser beam to create a continuous line.
3. Tripod: Provides stability and height adjustment.
4. Receiver: Detects the laser beam at greater distances, especially outdoors.
5. Control Panel: Allows users to adjust settings such as rotation speed and beam orientation.
There are two main types of rotary laser levels:
1. Self-Leveling Rotary Laser Levels: Automatically adjust to ensure they are level within a certain range (usually ±3 degrees). This feature saves time during setup and increases accuracy.
2. Manual Leveling Rotary Laser Levels: Require the user to adjust the level manually using a bubble level or similar mechanism. These are typically less expensive but require more skill to use effectively.
Rotary laser levels are versatile tools used in various applications, including:
- Construction: For leveling foundations, framing walls, and installing ceilings.
- Landscaping: To ensure proper grading and drainage.
- Surveying: For establishing benchmarks and reference points.
- Interior Design: Assisting in the installation of cabinets, shelves, and other fixtures.
- Road Construction: Used for grading roads and ensuring proper elevation for drainage.
- Precision: Provides accurate leveling over long distances.
- Time Efficiency: Reduces setup time compared to traditional leveling methods.
- Versatility: Can be used for both indoor and outdoor projects.
- Visibility: The rotating beam can be seen clearly in various lighting conditions with the aid of a receiver.
Setting up a rotary laser level involves several steps:
1. Choose a Stable Surface: Place the device on a flat, stable surface or tripod.
2. Adjust Height: Set the height according to your project requirements.
3. Turn On the Device: Activate the self-leveling feature if available.
4. Check Leveling: Use a receiver to verify that the beam is level.
To effectively use a rotary laser level:
- Position the receiver at various points within the work area to detect the beam.
- Adjust your workpiece according to the level indicated by the receiver.
- For outdoor use, ensure that you have a suitable receiver as visibility may be reduced.
1. Improper Setup: Failing to place the device on a stable surface can lead to inaccuracies.
2. Ignoring Calibration: Not checking for proper leveling before starting can result in errors.
3. Neglecting Environmental Factors: Wind or uneven ground can affect performance outdoors.
Modern rotary laser levels come equipped with advanced features that enhance their usability:
Many rotary laser levels now offer remote control capabilities, allowing users to adjust settings from a distance without having to walk back and forth between the device and their work area. This feature is particularly useful on large job sites where moving around frequently can be cumbersome.
Some rotary laser levels are designed with dual slope functionality, enabling users to set different angles for horizontal and vertical planes simultaneously. This feature is invaluable for tasks such as drainage projects where precise grading is essential.
Pulse mode allows the rotary laser level to emit intermittent beams instead of continuous ones. This mode is particularly useful outdoors where bright sunlight may make it difficult to see the laser line clearly. The pulse mode works in conjunction with a receiver that can detect these pulses even at great distances.
Many rotary laser levels are built with rugged materials designed to withstand harsh job site conditions. Features such as water resistance, dustproof casings, and shock-resistant designs ensure longevity and reliability even in challenging environments.
When selecting a rotary laser level for your projects, consider several factors:
1. Project Type: Determine whether you need a self-leveling or manual model based on your experience level and project requirements.
2. Range and Accuracy: Look for models with sufficient range (typically up to 1,000 feet) and high accuracy (within ±1/16 inch at 100 feet).
3. Features Needed: Assess whether advanced features like remote control, dual slope capability, or pulse mode would benefit your specific applications.
4. Budget Considerations: Prices can vary widely; determine what features are essential for your work without overspending.
Proper maintenance ensures longevity and accuracy from your rotary laser level:
1. Regular Calibration Checks: Periodically check calibration against known reference points to ensure ongoing accuracy.
2. Cleaning Lens and Components: Dust and debris can obstruct the laser beam; clean lenses regularly with appropriate materials.
3. Safe Storage Practices: Store your device in its case when not in use and avoid exposing it to extreme temperatures or moisture.
4. Battery Management: If using battery-powered models, replace batteries regularly and consider using rechargeable options for sustainability.
In conclusion, rotary laser levels are essential tools for achieving precision in construction and surveying tasks. Their ability to project a continuous beam of light makes them invaluable for various applications, from building foundations to landscaping projects. Understanding how these devices work and how to use them effectively can significantly enhance productivity and accuracy on any job site.
A rotary laser level is an advanced tool that projects a rotating laser beam around a room or outdoor space, providing a continuous reference line for leveling tasks.
Self-leveling rotary lasers automatically adjust themselves within a certain range (typically ±3 degrees) using internal mechanisms like pendulums or electronic sensors.
Yes, rotary laser levels are designed for both indoor and outdoor use; however, for outdoor applications, using a receiver is recommended due to visibility issues in bright sunlight.
Common applications include leveling foundations, grading land, installing drywall, aligning cabinets, conducting surveys, and road construction.
To maintain your rotary laser level, keep it clean, store it in its case when not in use, regularly check its calibration, avoid exposing it to harsh environmental conditions, and manage battery life effectively.
