Hand tools and fasteners are essential components in various industries, including construction, automotive, and manufacturing. Understanding the designations that identify the size of these tools and components is crucial for efficient and safe work practices. This article will delve into the key designations used for hand tools and fasteners, highlighting the importance of accurate sizing and providing insights into the measurement tools and techniques used.

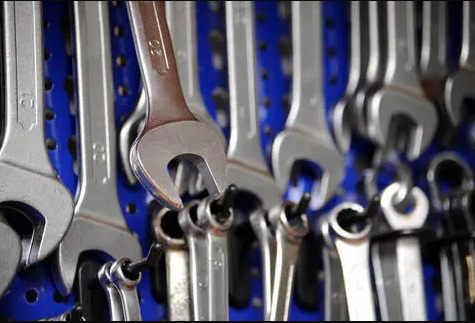

Hand tools, such as spanners (also known as wrenches), are designed to fit specific sizes of nuts and bolts. The size of a spanner is determined by the width across flats (WAF) of the fastener it is intended to fit. This measurement is critical to ensure that the tool does not slip or damage the fastener.
The metric system is widely used globally, with sizes measured in millimeters (e.g., 8 mm, 10 mm). In contrast, the imperial system, predominantly used in the United States, measures sizes in fractions of an inch (e.g., 1/2 inch, 3/4 inch).
Metric Spanner Sizes:
| Metric Size (mm) | Common Applications |
|---|---|
| 4 | Small electronics |
| 6 | DIY tasks, plumbing |
| 10 | Electrical equipment |
| 14 | Heavy-duty construction |
Imperial Spanner Sizes:
| Imperial Size (inches) | Common Applications |
|---|---|
| 1/4″ | Light DIY tasks |
| 3/8″ | Automotive parts |
| 5/8″ | Heavy-duty construction |
Fasteners, including bolts and nuts, are identified by several key dimensions: diameter, thread pitch, and length.
The diameter of a bolt refers to the distance across the shank or threaded portion. There are two types of diameters: the major diameter (outer diameter) and the minor diameter (diameter at the root of the threads).
Thread pitch is the distance between threads, measured in millimeters for metric bolts or threads per inch for imperial bolts.
Length is measured from the bottom of the head to the end of the bolt, unless the bolt has a countersunk head, in which case it is measured from the top of the head.
Several tools are used to measure hand tools and fasteners accurately.
Calipers are versatile tools used to measure the diameter of bolts and the width across flats of nuts. They are available in various models, including digital and dial options, offering high accuracy and ease of use[3].
Thread gauges are used to determine the thread pitch and diameter of bolts and screws. They are essential for ensuring that the fastener fits properly into its mating part[5].
Rivet gauges measure the diameter and grip length of rivets. These tools are crucial in industries where rivets are commonly used, such as aerospace and construction.
Accurate sizing is critical for both hand tools and fasteners. Incorrect sizing can lead to inefficiency, damage to tools and components, and safety hazards. For instance, using a spanner that is too small may not fit onto the fastener, while one that is too large may slip and cause injury or damage to the bolt head[1][2].
Using the correct size of spanner prevents damage to both the tool and the fastener. It ensures that the tool does not slip, reducing the risk of stripping bolt heads or causing nuts to split[1].
Choosing the right spanner size saves time and resources by avoiding unnecessary purchases of damaged tools or fasteners. A well-chosen spanner set can serve for years with proper care[1].
While common spanner sizes suffice for most tasks, there are specialized sizes designed for specific industries and applications.
Extra-large spanners are used in heavy-duty industrial machinery where standard tools are insufficient. These spanners range from 32 mm (1 1/4”) to 50 mm (2”) or larger and are essential for assembling and maintaining large equipment[1].
Precision spanners are designed for delicate tasks, such as electronics repair. They are typically smaller and more precise, ensuring minimal damage to sensitive components.
Hand tools, including spanners and wrenches, are governed by various standards to ensure performance and safety. For example, ANSI standards provide guidelines for socket wrenches and attachments, focusing on dimensional data and safety requirements[4].
Understanding the designations that identify the size of hand tools and fasteners is essential for ensuring safety and efficiency in various industries. By recognizing the differences between metric and imperial systems and using the appropriate measuring tools, professionals and DIY enthusiasts can avoid damaging tools and components, thereby saving time and resources.
Answer: Metric spanner sizes are measured in millimeters (e.g., 8 mm, 10 mm), while imperial sizes are measured in fractions of an inch (e.g., 1/2 inch, 3/4 inch).
Answer: The diameter of a bolt is measured using calipers, focusing on the major diameter (outer diameter) and the minor diameter (diameter at the root of the threads).
Answer: Thread pitch is the distance between threads on a bolt. It is measured in millimeters for metric bolts or threads per inch for imperial bolts, using a thread gauge.
Answer: Using the correct size of spanner prevents damage to the fastener and the tool itself. A spanner that is too small may not fit, while one that is too large may slip and cause injury or damage.
Answer: Common tools include calipers for diameter, thread gauges for thread pitch, and rivet gauges for rivet measurements.
