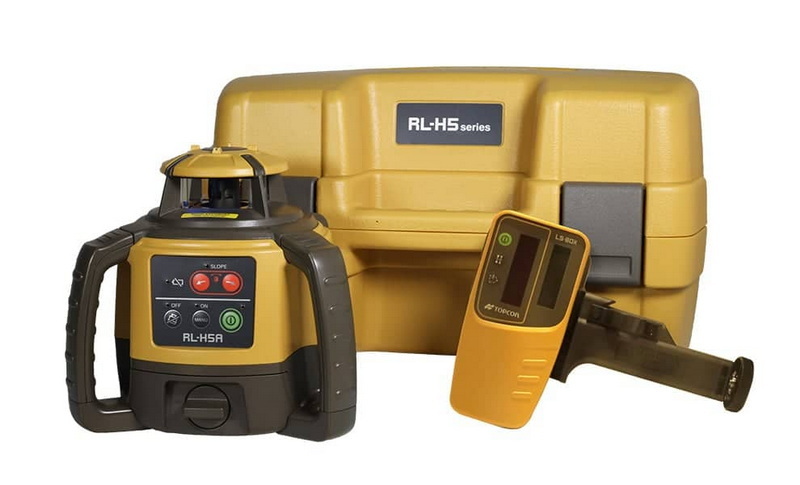

The Topcon RL-H5A laser level, paired with the LS-80X receiver, is a powerful tool designed for precision and efficiency in construction and surveying projects. This combination offers a range of features that make it ideal for large-scale operations, including self-leveling capabilities, high accuracy, and robust durability. In this article, we will delve into the key features of the Topcon RL-H5A laser level with the LS-80X receiver, exploring how these tools enhance productivity and reliability on the job site.
The Topcon RL-H5A is a red beam self-leveling rotary laser level that excels in providing accurate and reliable leveling work across large construction sites. It features an electronic self-leveling mechanism, ensuring a stable laser beam even in environments where traditional pendulum-based systems may struggle, such as areas with significant vibrations. This laser level is designed to be "jobsite tough," with an IP66 rating that protects it against dust and water, making it suitable for use in harsh weather conditions.
- Self-Leveling Capability: The RL-H5A automatically levels itself, allowing for quick setup and ensuring that the laser beam remains stable even if the unit is disturbed. It can self-level within a horizontal range of ±5°.
- Accuracy and Slope Function: The laser is accurate to ±10 arc seconds and can handle slopes up to ±8.8% (single grade), making it versatile for both flat and sloped work. However, it does not automatically calculate the grade; users must perform the calculations manually.
- Long-Range Operation: With a working area of up to 800 meters in diameter, the RL-H5A is suitable for large-scale projects.
- Rotation Speed: The laser rotates at 600 rpm, providing a consistent and reliable beam for precise leveling.
- Power Options: It operates for 100 hours with four D-cell alkaline batteries or 60 hours with an optional rechargeable Ni-MH battery pack.
The Topcon LS-80X receiver is designed to enhance the functionality of the RL-H5A laser level by providing accurate and efficient detection of the laser beam. It is optimized for use with red beam rotary lasers, extending the working range up to 3,100 feet and offering high precision with two accuracy modes: High (±0.04 inch) and Normal (±0.08 inch).
- Dual LCD Display: The receiver features dual LCD displays on both sides, allowing for easy readability from any angle.
- Eleven-Channel Grade Indicator: It provides detailed feedback on grade levels, helping users achieve precise alignment.
- Audible Alerts: The LS-80X includes a rear-mounted speaker with adjustable volume settings, ensuring that audible alerts are clear even in noisy environments.
- Dust and Water Protection: With an IP66 rating, the receiver is protected against dust and water, making it durable in various job conditions.
- Extended Battery Life: It operates for up to 120 hours on two AA batteries and includes an auto-shutoff feature to conserve battery life.
Combining the Topcon RL-H5A laser level with the LS-80X receiver offers several benefits for construction and surveying projects:
- Enhanced Accuracy: The high precision of both the laser level and the receiver ensures accurate leveling and grading, which is crucial for ensuring structural integrity and compliance with project specifications.
- Efficiency: The quick setup and self-leveling capabilities of the RL-H5A, combined with the extended range and precision of the LS-80X receiver, streamline the leveling process, reducing project timelines and increasing productivity.
- Durability: Both units are designed to withstand harsh job site conditions, including dust, water, and vibrations, ensuring that they remain operational even in challenging environments.
The Topcon RL-H5A with the LS-80X receiver is versatile and can be applied across various construction and surveying tasks:
- Sub-Base Levelling: Ensuring accurate base levels is crucial for foundation work, and this combination provides the precision needed for such tasks.
- Concrete Finishing: The high accuracy and reliability of the system make it ideal for ensuring that concrete surfaces are level and even.
- Slope Work: The ability to handle slopes up to ±8.8% makes it suitable for projects requiring precise grading, such as drainage systems.
In addition to its core features, the Topcon RL-H5A with LS-80X offers several advanced functionalities that enhance productivity:
- Manual Slope Adjustment: The RL-H5A allows for manual slope adjustments, which can be particularly useful in projects where precise grading is required. This feature is intuitive and easy to use, making it accessible to operators of various skill levels.
- Safety Alerts: The system includes safety alerts, such as an elevation alert that notifies the user if the laser level is disturbed and goes out of level. This ensures that any deviations from the intended level are quickly identified and corrected.
- Long Battery Life: Both the laser level and the receiver have extended battery lives, reducing downtime and allowing for continuous operation over long periods. This is especially beneficial in remote or hard-to-reach locations where frequent battery replacements may be impractical.
The Topcon RL-H5A and LS-80X can be integrated with other construction tools to further enhance their capabilities:
- Tripods and Grade Rods: Using a heavy-duty tripod and grade rod with the RL-H5A and LS-80X provides stability and precision, allowing for accurate measurements even in challenging environments.
- Remote Controls: While the RL-H5A does not come with a remote control, users can consider integrating external remote control systems to enhance operational flexibility, especially in situations where the laser level needs to be adjusted from a distance.
When comparing the Topcon RL-H5A with other laser levels in its class, several key differences emerge:
- Vertical Laser Option: Unlike some competitors, the RL-H5A does not offer a vertical laser option. However, this can be addressed by using a separate plumb-bob feature or vertical laser level.
- Battery Life and Durability: The RL-H5A's long battery life and robust construction make it a reliable choice for extended use on construction sites.
- Slope Handling: The manual slope capability of the RL-H5A provides flexibility for projects requiring precise grading, though it may require more manual calculation compared to models with automatic grade calculation.
The Topcon RL-H5A laser level paired with the LS-80X receiver offers a powerful combination for construction and surveying projects. Its self-leveling capability, high accuracy, and robust durability make it an essential tool for ensuring precision and efficiency on the job site. Whether for large-scale construction projects or detailed surveying tasks, this system provides the reliability and versatility needed to achieve high-quality results.
The Topcon LS-80X receiver has a working range of up to 3,100 feet when used with a red beam rotary laser.
The RL-H5A can handle slopes up to ±8.8% (single grade), but it does not automatically calculate the grade; users must perform the calculations manually.
The LS-80X receiver operates for up to 120 hours on two AA batteries and includes an auto-shutoff feature to conserve battery life.
Yes, the RL-H5A has an IP66 rating, making it dustproof and water-resistant, suitable for use in harsh weather conditions.
The RL-H5A rotates at 600 rpm, providing a consistent and reliable beam for precise leveling.
