In the HVAC (Heating, Ventilation, and Air Conditioning) industry, having the right tools is essential for efficient installation, maintenance, and repair of systems. While many tools are common across various trades, HVAC technicians rely on specific hand tools tailored to the unique demands of their work. This article explores four essential hand tools specific to HVAC, detailing their uses, features, and why they are indispensable for professionals in the field.
The adjustable pipe wrench is a fundamental tool in HVAC work, designed to grip and turn pipes and fittings of various sizes. Its adjustable jaw allows it to accommodate different pipe diameters, making it versatile for plumbing connections in HVAC systems. This tool is often the go-to for working with threaded pipes, which are common in gas lines, water supply lines, and refrigerant piping.
- Tightening or loosening threaded pipes and fittings: HVAC systems often involve connecting various pipes that carry refrigerants, water, or gas. The adjustable pipe wrench provides the necessary grip and torque to secure or remove these connections without damaging the pipe.
- Working on refrigerant lines: Refrigerant lines require careful handling to avoid leaks. The pipe wrench helps in assembling or disassembling these lines during installation or repair.
- Assisting in furnace and boiler plumbing tasks: Many HVAC systems include boilers or furnaces that require plumbing connections. The pipe wrench is essential for these tasks, ensuring tight and leak-free joints.
- Available in sizes ranging from 6 to 24 inches, with 10 to 14 inches being the most common for HVAC work.
- Made from durable materials like cast iron or aluminum to withstand high torque.
- Adjustable jaw with serrated teeth to prevent slipping on round pipes.
- Some models feature a lightweight design to reduce hand fatigue during prolonged use.
A hand seamer is a specialized tool used primarily for ductwork fabrication and repair. It allows HVAC technicians to bend, fold, and crimp sheet metal with precision, ensuring airtight and efficient duct connections. Since ductwork is a critical component of HVAC systems, proper shaping and sealing are vital to system performance and energy efficiency.
- Bending and shaping sheet metal ducts: HVAC ducts are often custom-fabricated on-site. The hand seamer helps create precise bends and folds to fit ducts into tight spaces.
- Sealing duct joints: Properly sealed ducts prevent air leaks, which can reduce system efficiency and increase energy costs. The hand seamer crimps and folds metal edges to create tight seals.
- Fabricating custom duct components: When standard duct sizes don't fit, technicians use the hand seamer to create custom pieces.
- Repairing damaged ductwork: Quick fixes to damaged ducts can be made by bending and sealing metal with this tool.
- Typically has a 3-inch wide jaw for broad, even bends.
- Made with hardened steel for durability and long-lasting performance.
- Some models include interchangeable jaws for different bending profiles.
- Ergonomic handles reduce hand strain during repetitive use.
Tube cutters are essential for cutting copper, aluminum, and plastic tubing used in refrigerant and water lines. They provide clean, precise cuts that are crucial for proper fitting and sealing. Unlike saws, tube cutters rotate around the pipe, scoring and cutting it evenly without crushing or deforming the tubing.
- Cutting refrigerant lines to length: Properly sized refrigerant lines are critical for system efficiency and safety.
- Preparing tubing for flaring or brazing: Clean cuts ensure that fittings and joints seal correctly.
- Ensuring smooth edges: Burr-free edges prevent leaks and damage to seals or O-rings.
- Cutting plastic drain lines: Many HVAC systems use plastic tubing for condensate drainage, which tube cutters can handle efficiently.
- Compact and easy to handle, often fitting in tight spaces.
- Adjustable cutting wheel to accommodate different tube diameters, typically from 1/8 inch to 1-1/8 inch.
- Provides a clean, burr-free cut, reducing the need for additional finishing.
- Some models include a deburring tool to smooth edges after cutting.
A digital multimeter is a critical diagnostic tool that measures electrical properties such as voltage, current, and resistance. It helps HVAC technicians troubleshoot electrical components and ensure system safety. Since modern HVAC systems rely heavily on electrical controls, sensors, and motors, a multimeter is indispensable for accurate diagnostics.
- Testing electrical circuits: Verifying voltage supply to components like compressors, fans, and thermostats.
- Diagnosing faulty wiring or components: Identifying shorts, open circuits, or incorrect wiring.
- Measuring voltage and continuity: Ensuring that switches, relays, and sensors are functioning properly.
- Ensuring safety compliance: Checking for proper grounding and insulation resistance to prevent electrical hazards.
- Digital display for easy and accurate readings.
- Multiple measurement modes including AC/DC voltage, current, resistance, and sometimes capacitance and temperature.
- Compact and portable with insulated probes for safety.
- Some advanced models include data hold, auto-ranging, and backlit displays for use in low-light conditions.

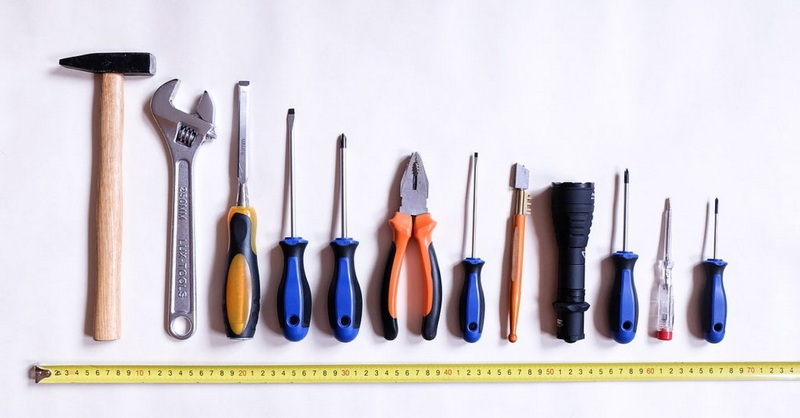

While the four tools above are specific and critical to HVAC work, technicians also rely on other hand tools such as:
- Screwdriver Sets: Including flathead, Phillips, Torx, and hex drivers for accessing panels, securing components, and adjusting controls.
- Pliers: Needle-nose, channel-lock, and lineman's pliers for gripping, bending, twisting, and cutting wires or small components.
- Tape Measure: For precise measurements during installation and duct layout.
- Hammer: Including dead blow hammers for securing parts without causing damage.
- Flaring Tools: For creating flared ends on copper tubing to ensure leak-proof connections.
- Manifold Gauge Sets: For measuring refrigerant pressure, though technically not a hand tool, they are essential for HVAC diagnostics.
The HVAC trade demands precision, safety, and efficiency, all of which hinge on having the right tools. The adjustable pipe wrench, hand seamer, tube cutter, and digital multimeter are four hand tools specific to HVAC that enable technicians to perform their jobs effectively. These tools not only facilitate installation and repair but also ensure the longevity and optimal performance of HVAC systems. Investing in quality versions of these tools is essential for any HVAC professional aiming to deliver top-notch service.
By mastering the use of these tools, HVAC technicians can improve their productivity, reduce errors, and provide better service to their customers. Whether you are a seasoned professional or just starting in the HVAC field, understanding and utilizing these tools will set you on the path to success.
A hand seamer is primarily used for bending, folding, and crimping sheet metal ductwork to create airtight and efficient duct connections.
A digital multimeter allows HVAC technicians to measure electrical properties such as voltage, current, and resistance, which is crucial for diagnosing and troubleshooting electrical issues safely.
Adjustable pipe wrenches come in various sizes and have adjustable jaws to fit a range of pipe diameters, but very large pipes may require larger or specialized wrenches.
A tube cutter provides a clean, precise, and burr-free cut specifically designed for tubing, whereas a regular saw may leave rough edges and is less precise for small diameter pipes.
While these four tools are essential, HVAC technicians typically need a broader set of hand and power tools to handle the full range of tasks in the field effectively.
