A rotary laser level is a sophisticated tool used in construction, surveying, and various other fields to establish a level plane over a large area. Unlike traditional spirit levels that provide a level reference for a limited distance, a rotary laser level projects a 360-degree laser beam, creating a horizontal or vertical plane that can be detected by a laser receiver at considerable distances. This makes it invaluable for tasks such as setting foundations, aligning fences, installing drop ceilings, and grading land[1][2].
A rotary laser level is a precision instrument that projects a rotating laser beam to create a level or plumb plane. The core components include:
- Laser Unit: Projects a highly visible laser beam.
- Rotating Head: Spins the laser beam 360 degrees.
- Leveling Mechanism: Ensures the laser is perfectly level.
- Control Panel: Allows users to adjust settings and modes.
- Receiver: Detects the laser beam, especially in bright conditions[1].
Rotary laser levels come in various types, each suited for specific applications:
- Horizontal Rotary Laser Levels: Primarily used for establishing a level plane, ideal for foundations and flat surfaces.
- Vertical Rotary Laser Levels: Designed to project a vertical plane, useful for aligning walls and plumb applications.
- Dual Grade Rotary Laser Levels: Capable of projecting both horizontal and vertical planes, with the added ability to set a specific slope or grade[2].
- Manual Leveling Rotary Laser Levels: Require manual adjustments to achieve a level plane using bubble vials.
- Self-Leveling Rotary Laser Levels: Automatically level themselves within a certain range, using either a pendulum system or electronic servo-motors[1].
Manual leveling requires the operator to adjust the laser level using built-in bubble vials. This method relies on the user's visual accuracy and the quality of the vial[1].
Steps:
1. Place the rotary laser level on a flat surface or tripod[1].
2. Position the unit approximately 1 foot from one wall and at least 20 feet from the opposite wall[1].
3. Orient the laser along the axis of the vial you intend to level. The vial should face both walls[1].
4. Adjust the screws corresponding to each vial until the bubble rests between the black lines, indicating a level position on both axes[1].
5. Turn on the laser and mark where it hits the near and far walls[1].
6. Move the laser to about 1 foot from the far wall[1].
7. Re-level the laser and adjust its height to match the mark on the far wall[1].
8. Measure any difference between the first mark and the laser line on the initial near wall[1].
Manual leveling, while being the least expensive option, offers an accuracy of about 1/8th inch per 30 feet and requires a longer setup time[1].
Self-leveling rotary laser levels use a pendulum and magnets to automatically find a level position. This method is more accurate than manual leveling[1].
Steps:
1. Set up the rotary laser level on a stable surface or tripod[1].
2. Turn on the device and allow it time to self-level. This process usually takes less than a minute[1].
3. The internal mechanism will adjust until the laser is level within its specified range.
4. Once the laser is level, it will project a stable, rotating beam[1].
Self-leveling lasers typically offer an accuracy of around 1/8th inch per 100 feet[1].
Electronic self-leveling utilizes servo-motors to achieve the highest level of accuracy. This method is also known as automatic self-leveling[1].
Steps:
1. Position the laser level on a flat surface or tripod[1].
2. Turn on the device, and the electronic system will automatically adjust the laser to its most accurate level[1].
3. The servo-motors ensure that the laser is perfectly level, compensating for any minor adjustments needed.
4. The laser will then project a highly accurate, rotating beam[1].
Electronic self-leveling lasers provide the best accuracy, typically around 1/16th inch per 100 feet[1].
Proper setup is crucial for accurate measurements. Here's how to set up a rotary laser level:
1. Choose a Stable Location:
Select a location that is free from vibrations and movement. A firm, level surface is ideal[1].

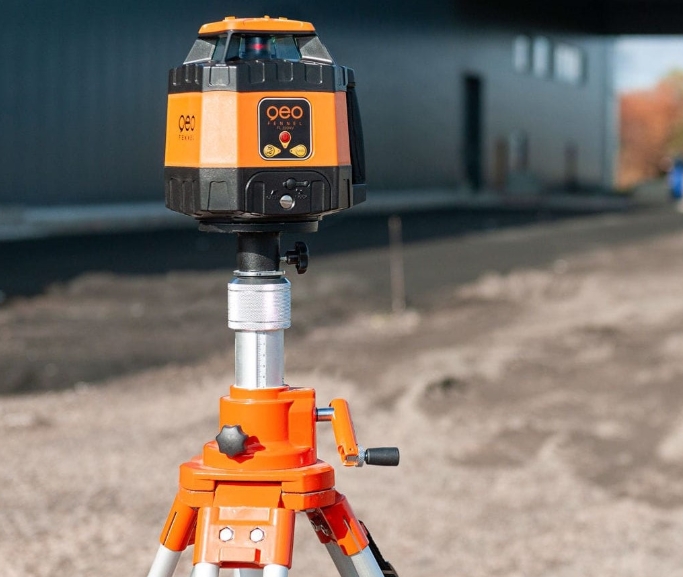

2. Mount the Laser Level:
Use a tripod for best results. Ensure the tripod is stable and the laser level is securely attached[1].
3. Power On:
Insert batteries or connect the power source and turn on the laser level[1].
4. Leveling:
If using a manual leveling laser, adjust the screws until the bubble vials indicate a level position[1].
For self-leveling lasers, allow the device a minute to automatically level[1].
5. Testing:
Verify the level by checking multiple points within the laser's range to ensure consistency.

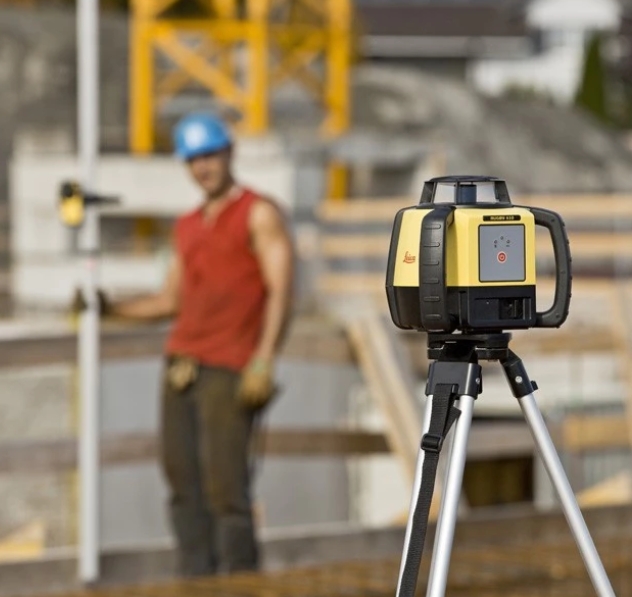

In bright outdoor conditions, the laser beam may be difficult to see. A laser receiver (also known as a detector) is used to detect the laser beam and provide an audible or visual indication when the beam is found[1].
Steps:
1. Mount the Receiver:
Attach the receiver to a grade rod or other measuring device[2].
2. Power On:
Turn on the receiver and set the desired sensitivity level.
3. Scanning:
Move the receiver up or down until it detects the laser beam. The receiver will emit a beep or display a visual signal[1].
4. Marking:
Once the laser beam is detected, mark the position on the grade rod or surface[1].
Rotary laser levels are versatile tools used across various industries. Here are some common applications:
- Foundation Layout: Establishing level lines for pouring concrete foundations[1].
- Wall Alignment: Ensuring walls are plumb and aligned correctly[2].
- Drop Ceilings: Installing level drop ceilings with precision[1].
- Flooring: Leveling floors before tiling or laying other materials[1].
- Grading: Leveling land for proper drainage and aesthetics[2].
- Fencing: Aligning fence posts to create a straight and level fence line[1].
- Decking: Ensuring a level surface for deck construction[1].
- Elevation Measurements: Determining elevation differences over large areas[2].
- Site Layout: Establishing reference points for construction projects[2].
- Picture Hanging: Hanging pictures and artwork in a straight line[2].
- Cabinet Installation: Ensuring cabinets are level and aligned[1].
Modern rotary laser levels come with advanced features that enhance their utility.
Some rotary lasers can be set to project a slope or grade, which is essential for drainage and other specific applications[2].
Steps:
1. Enter Slope Mode:
Activate the slope setting mode on the laser level[2].
2. Set the Grade:
Use the control panel to input the desired slope percentage or angle[2].
3. Verify:
Check the slope using the laser receiver at various points to ensure accuracy[2].
Scanning mode allows the laser to project a beam over a defined arc instead of a full 360-degree rotation. This is useful for indoor applications where you only need a reference line on one wall[2].
Steps:
1. Activate Scan Mode:
Select the scanning mode on the laser level[2].
2. Set the Angle:
Adjust the scanning angle to cover the desired area[2].
3. Position:
Position the laser so that the scanning beam covers the area where you need a level or plumb reference[2].
Dual slope functionality allows you to set different slopes on two axes simultaneously, which is particularly useful for complex grading projects[2].
Steps:
1. Enter Dual Slope Mode:
Select the dual slope mode on the laser level[2].
2. Set X-Axis Slope:
Input the desired slope for the X-axis[2].
3. Set Y-Axis Slope:
Input the desired slope for the Y-axis[2].
4. Verify:
Check both slopes using the laser receiver to ensure accuracy[2].
Even with careful setup and operation, issues can arise. Here are some common problems and how to address them:
Inaccurate Readings:
- Cause: Laser level not properly calibrated, unstable surface, or interference[3].
- Solution: Calibrate the laser level, ensure a stable setup, and remove any obstructions[3].
Laser Beam Not Visible:
- Cause: Bright sunlight, low battery, or laser malfunction[1].
- Solution: Use a laser receiver, replace the batteries, or have the laser repaired[1][3].
Self-Leveling Issues:
- Cause: Laser level outside its self-leveling range, damaged internal mechanism[1].
- Solution: Place the laser on a more level surface or have it serviced[1][3].
Receiver Not Detecting Beam:
- Cause: Receiver not properly aligned, low battery, or incorrect settings[1].
- Solution: Ensure the receiver is aligned with the laser beam, replace batteries, and check the settings[1].
Power Issues:
- Cause: Battery not properly connected, or charging system malfunction[3].
- Solution: Check the battery connections, and inspect the charging system[3].
Proper maintenance ensures the longevity and accuracy of your rotary laser level:
- Cleaning: Clean the laser lens and housing regularly with a soft, dry cloth[3].
- Storage: Store the laser level in a protective case in a dry, cool place[3].
- Battery Care: Remove batteries when storing the laser for extended periods[3].
- Calibration: Have the laser level professionally calibrated annually or as needed[3].
- Inspection: Regularly inspect the laser for any signs of damage or wear[3].
Rotary laser levels are indispensable tools for achieving precision in a wide range of applications, from construction to landscaping. By understanding the different types of lasers, leveling methods, and setup procedures, users can maximize the accuracy and efficiency of their work. Proper maintenance and troubleshooting skills further ensure the reliable performance of these valuable instruments. Whether you're setting foundations, aligning walls, or grading land, a rotary laser level provides the accuracy and consistency needed for professional results.
Answer: Calibration of a rotary laser level is best done by a professional at a certified laser level repair center[3]. They have the specialized equipment to ensure accuracy. However, a simple field check can be performed by setting up the laser and marking a level line at a set distance. Rotate the laser 180 degrees and check if the beam aligns with the initial mark. If there's a significant deviation, it's time for professional calibration[3].
Answer: The range of a rotary laser level can vary depending on the model and manufacturer. Typically, you can expect a range of up to 600 meters (approximately 2000 feet) with a laser receiver[2]. Some high-end models may offer even greater ranges, while basic models might have a shorter range[2].
Answer: While rotary laser levels can be used outdoors, direct sunlight can make the laser beam difficult to see[1]. Using a laser receiver is essential in bright conditions to detect the laser beam accurately[1]. Some receivers also have features to filter out ambient light, improving their performance in sunlight[1].
Answer: The primary difference between red and green beam laser levels is the visibility of the laser beam. Green laser beams are typically four times brighter than red beams, making them easier to see, especially in bright indoor environments and over longer distances[2]. Green beam lasers are generally more expensive but offer improved visibility[2].
Answer: If your laser receiver isn't detecting the beam, first ensure that the receiver is powered on and the batteries are fresh[1]. Check that the receiver is set to the correct sensitivity level and is aligned with the laser beam[1]. Also, make sure there are no obstructions between the laser and the receiver. If the problem persists, try cleaning the sensor on the receiver and refer to the manufacturer's troubleshooting guide[1].
