Rotary laser levels have become indispensable tools in construction, landscaping, and various other industries where precise leveling and alignment are crucial. These versatile instruments emit a rotating laser beam that creates a level line across an entire work area, making them ideal for both indoor and outdoor applications. In this comprehensive guide, we'll explore the ins and outs of using a rotary laser level kit, providing you with the knowledge and skills to tackle your projects with confidence and accuracy.

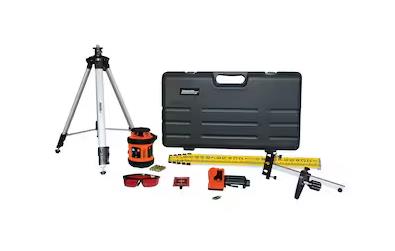

Before diving into the usage, it's essential to familiarize yourself with the components of a typical rotary laser level kit:
1. Rotary Laser Level: The main unit that emits the rotating laser beam.
2. Tripod: Provides a stable platform for the laser level.
3. Laser Detector: Helps locate the laser beam in bright outdoor conditions.
4. Grade Rod: A telescoping rod used with the detector to measure elevations.
5. Remote Control: Allows for convenient adjustment of the laser's settings.
6. Rechargeable Batteries: Power source for the laser level.
7. Carrying Case: Protects and organizes all components.
Select a central location in your work area that provides a clear line of sight to all points you need to measure or level.
1. Extend the tripod legs to a comfortable working height.
2. Ensure the tripod is as level as possible using the built-in bubble vial.
3. Secure the tripod firmly on stable ground.
1. Attach the rotary laser level to the tripod using the 5/8" thread mount.
2. Tighten the mounting screw to secure the laser level in place.
1. Turn on the rotary laser level using the power button.
2. Allow the unit to self-level, which typically takes about 30 seconds.
3. Once self-leveled, the laser will start rotating, creating a level plane.
1. Setting a Level Line for Cabinetry or Tile Work
- Adjust the laser's height to your desired level.
- Mark reference points on the walls using the visible laser line.
- Use these marks to ensure perfect alignment of cabinets or tiles.
2. Creating a Level Ceiling
- Position the laser level in the center of the room.
- Rotate the laser head 90 degrees to project the beam upwards.
- Use the laser line as a guide for installing ceiling joists or drywall.
3. Checking Floor Levelness
- Set up the laser level at one end of the room.
- Use the laser detector attached to a grade rod to check floor elevations across the room.
- Note any high or low spots that may need correction.
1. Grading a Landscape
- Set up the laser level on high ground.
- Use the laser detector and grade rod to measure elevations across the site.
- Adjust soil levels based on the readings to achieve the desired grade.
2. Setting Fence Posts
- Position the laser level at one end of the fence line.
- Use the laser detector to ensure each post is set at the correct height.
- Adjust post heights as needed before securing them in place.
3. Laying a Foundation
- Set up the laser level outside the foundation area.
- Use the laser detector and grade rod to check elevations of footings and foundation walls.
- Ensure all points are level or at the correct slope for drainage.
Many rotary laser levels offer a slope mode for creating intentional grades:
1. Enter slope mode using the control panel or remote.
2. Set the desired slope percentage (e.g., 2% for drainage).
3. The laser will automatically tilt to project the specified slope.
For improved visibility in certain conditions:
1. Activate scanning mode using the control panel or remote.
2. Adjust the scan angle (typically 10°, 45°, or 90°) as needed.
3. The laser will oscillate back and forth within the selected angle, creating a brighter line.
Some models feature a plumb down point for easy alignment:
1. Use the plumb down beam to position the laser directly over a specific point on the ground.
2. This ensures accurate alignment for tasks like setting columns or partition walls.
To ensure the longevity and accuracy of your rotary laser level:
1. Clean the laser aperture and housing regularly with a soft, dry cloth.
2. Store the kit in its carrying case when not in use.
3. Recharge batteries as needed and replace them when they no longer hold a charge.
4. Have the unit calibrated annually or after any significant impact.
Mastering the use of a rotary laser level kit can significantly improve the efficiency and accuracy of your leveling and alignment tasks. By following the steps and techniques outlined in this guide, you'll be well-equipped to tackle a wide range of projects with confidence. Remember to always prioritize safety, maintain your equipment, and practice to hone your skills with this versatile tool.
Most professional-grade rotary laser levels offer accuracy within ±1/16 inch per 100 feet (±1.5mm per 30m). However, accuracy can vary between models, so it's essential to check the specifications of your particular unit.
Yes, rotary laser levels can be used in bright sunlight, but you'll need to use the laser detector to locate the beam. The detector picks up the laser signal even when it's not visible to the naked eye.
It's recommended to calibrate your rotary laser level annually or after any significant impact or drop. Some manufacturers offer calibration services, or you can perform a field calibration check using the methods outlined in your user manual.
Self-leveling rotary lasers automatically level themselves within a certain range (typically ±5°), making setup quicker and easier. Manual lasers require the user to level the unit using bubble vials, which can be more time-consuming but may offer more control in certain situations.
While many rotary laser levels have some degree of water resistance, it's best to avoid using them in heavy rain or submerging them in water. Always check your unit's IP rating to determine its level of water and dust protection.
