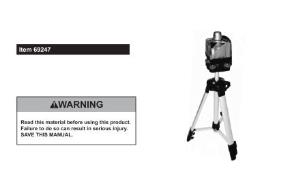

Rotary laser levels are essential tools for construction and DIY projects, providing accurate leveling and alignment over long distances. The Pittsburgh Rotary Laser Level, available from Harbor Freight, is a popular choice for both professionals and hobbyists. In this comprehensive guide, we'll explore how to use this versatile tool effectively, ensuring your projects are perfectly level and aligned.
Before diving into the usage instructions, let's familiarize ourselves with the key components of the Pittsburgh Rotary Laser Level:
- Laser head: The rotating part that emits the laser beam
- Control panel: Where you can adjust settings and turn the device on/off
- Tripod mount: For stable positioning of the laser level
- Vials: Built-in bubble levels for initial setup
- Battery compartment: Houses the power source
Select a central location in your work area where the laser level can project its beam to all necessary points. Ensure the surface is as flat and stable as possible.
For best results, use a tripod to mount your Pittsburgh Rotary Laser Level. This provides stability and allows for easy height adjustments. If a tripod isn't available, you can place the level on a flat surface, but be extra careful to ensure it's stable.
Open the battery compartment and insert the required batteries, typically four AA batteries. Make sure to align them according to the polarity indicators in the compartment[1].
Use the built-in bubble vials to get the laser level approximately level. Adjust the tripod legs or use the tri-brack adjustment screws on the base of the level to center the bubbles in the vials[5].
Turn on the laser level using the power switch. Allow the unit a few moments to self-level if it has this feature.
Depending on your model, you may need to press a separate button to activate the laser beam. Some models may start rotating automatically, while others allow you to control the rotation speed[1].
If your model allows for speed adjustment, use the rotation control switch to set the desired speed. Faster rotation creates a more visible line, while slower rotation can be useful for pinpointing specific locations[1].
Before starting your project, it's wise to check the calibration of your laser level. Here's a simple method:
1. Set up the laser level about 15-20 feet from a wall.
2. Mark the point where the laser hits the wall.
3. Rotate the laser 180 degrees and mark the new point.
4. The difference between these points should be minimal (within the stated accuracy of your model).
If the difference is significant, your laser level may need professional calibration[5].
When pouring concrete for foundations, use the rotary laser level to ensure a consistent height:
1. Set up the laser level on stable ground near the foundation area.
2. Adjust the height of the laser to match your desired foundation level.
3. Use a laser detector or the visible beam to mark the correct height on stakes around the perimeter.
4. As you pour concrete, use these marks to ensure an even pour.
For drop ceiling installation, the rotary laser level is invaluable:
1. Mount the laser level at your desired ceiling height.
2. Rotate the laser to project a level line around the room.
3. Use this line to mark wall angles and hang ceiling grid components.
When grading land or creating slopes for drainage:
1. Set up the laser level at a known height.
2. Use a laser detector on a grade rod to measure elevations at various points.
3. Adjust the ground level as needed to achieve the desired grade.
To ensure straight fences or walls:
1. Position the laser level at one end of the intended line.
2. Project the beam along the path of the fence or wall.
3. Use the beam as a guide for placing posts or bricks.
In bright sunlight, the laser beam may be difficult to see. Use these strategies:
- Work during early morning or late afternoon when sunlight is less intense.
- Use a laser detector for precise measurements without needing to see the beam.
- If possible, create shade over your work area.
To maximize battery life:
- Use high-quality, fresh batteries.
- Turn off the laser when not in use, even for short periods.
- In cold weather, keep spare batteries warm in your pocket.
Proper care ensures longevity and accuracy:
- Always engage the pendulum lock before moving or storing the laser level[5].
- Store in a dry, dust-free environment.
- Use the provided carrying case for transportation.
Perform a calibration check at the start of each project or if the laser level has been bumped or dropped. This ensures continued accuracy in your work.
- Check battery installation and replace if necessary.
- Ensure the power switch is fully engaged.
- Verify that the pendulum lock is disengaged.
- Confirm the laser is within its self-leveling range.
- Check for and remove any obstructions to the rotating head.
- Perform a calibration check and adjust if needed.
- Clean the laser output window with a soft, dry cloth.
- Replace batteries with fresh ones.
- Reduce ambient light or use a laser detector.
The Pittsburgh Rotary Laser Level is a powerful tool that can significantly improve the accuracy and efficiency of your construction and DIY projects. By following the steps outlined in this guide, you can set up, operate, and maintain your laser level effectively. Remember to always prioritize safety, regularly check calibration, and protect your tool from damage. With practice, you'll find that your Pittsburgh Rotary Laser Level becomes an indispensable part of your toolkit, helping you achieve professional-grade results in all your leveling tasks.
The accuracy of the Pittsburgh Rotary Laser Level can vary depending on the specific model, but most are accurate within ±1/4 inch at 100 feet. Always check the product specifications for the exact accuracy of your model.
Yes, you can use the Pittsburgh Rotary Laser Level outdoors. However, in bright sunlight, you may need to use a laser detector to locate the beam accurately. Some models also come with outdoor-specific features like increased visibility modes.
It's recommended to check the calibration of your rotary laser level before each major project or at least once a month if used regularly. If the tool has been dropped or bumped, perform a calibration check immediately.
A rotary laser level projects a 360-degree laser line by rapidly rotating a laser beam, making it ideal for large areas and outdoor use. A line laser level projects fixed lines, usually in a cross pattern, and is better suited for indoor use and smaller projects.
Replacing the laser diode is not typically a user-serviceable task. If your laser level's beam becomes weak or fails, it's best to contact Harbor Freight customer service or a professional repair service for assistance.
