The Pittsburgh Motorized Rotary Laser Level is a versatile and powerful tool for ensuring accurate measurements and leveling in various construction and DIY projects. Whether you're a professional contractor or a dedicated DIY enthusiast, mastering the use of this device can significantly improve the precision and efficiency of your work. In this comprehensive guide, we'll explore the features, setup process, and practical applications of the Pittsburgh Motorized Rotary Laser Level, helping you make the most of this invaluable tool.
The Pittsburgh Motorized Rotary Laser Level is designed to project a 360-degree laser beam, creating a perfectly level reference line across an entire work area. This makes it an essential tool for tasks such as installing drop ceilings, laying tile, hanging cabinets, or grading outdoor spaces. The motorized rotation of the laser head ensures a consistent and accurate level line, even over long distances.

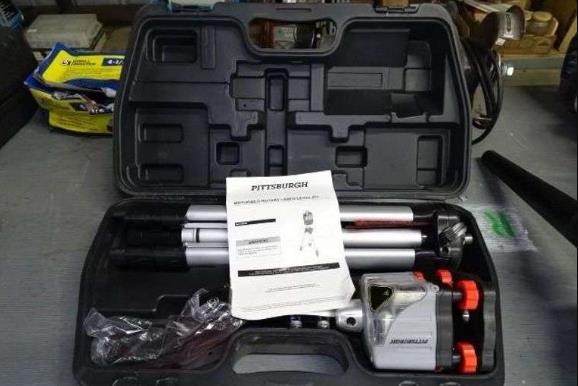

Key features of the Pittsburgh Motorized Rotary Laser Level include:
- 360-degree rotating head
- Self-leveling capability
- Adjustable rotation speed
- Horizontal and vertical leveling modes
- Included tripod for easy setup
- Laser detector for outdoor use
- Protective carrying case
Before you can start using your Pittsburgh Motorized Rotary Laser Level, it's crucial to set it up correctly. Follow these steps to ensure proper setup:
1. Choose a suitable location: Select a stable surface or use the included tripod to position the laser level.
2. Install batteries: Open the battery compartment and insert four AA batteries, ensuring correct polarity[1].
3. Mount on tripod (if using): Attach the laser level to the tripod by threading the bolt at the top of the tripod through the hole at the center of the laser level's base[3].
4. Level the unit: Use the tri-brack adjustment screws to level the laser. Adjust until the bubbles in the vial levels are centered[3].
5. Unlock the pendulum: Push the pendulum lock to the right to free the pendulum and allow self-leveling[2].
6. Power on: Turn on the laser level using the power switch.
7. Allow stabilization: Give the laser lines 4-6 seconds to stabilize before beginning any measurements[6].
Now that your Pittsburgh Motorized Rotary Laser Level is set up, let's explore how to use it for different applications:
1. Ensure the laser level is in horizontal mode.
2. Activate the laser by turning the power/rotation control switch clockwise[1].
3. Adjust the rotation speed as needed using the rotation control switch.
4. Use the projected laser line as a reference for leveling across your work area.
1. Set the laser level in vertical mode.
2. Turn on the vertical laser line.
3. Use the projected vertical line as a plumb reference for tasks like wall tiling or door frame installation.
1. Position the laser level at one end of the area to be checked.
2. Measure the vertical distance from the laser beam to the surface at both ends.
3. The difference in measurements indicates the slope of the surface[1].
1. Set up the laser level near one object.
2. Align the laser beam with the desired height on the reference object.
3. Use the laser beam to mark the same height on distant objects[1].
To ensure the best results when using your Pittsburgh Motorized Rotary Laser Level, keep these tips in mind:
- Regularly check the calibration of your laser level to maintain accuracy.
- Use the included laser detector for outdoor applications or in bright light conditions.
- Clean the laser lens and vial levels regularly to prevent dust accumulation.
- Always engage the pendulum lock when transporting the laser level to prevent damage.
- For maximum accuracy, allow the laser level to acclimate to the ambient temperature before use.
Proper maintenance of your Pittsburgh Motorized Rotary Laser Level will ensure its longevity and continued accuracy:
1. Clean the exterior with a soft, dry cloth after each use.
2. Store the laser level in its protective case when not in use.
3. Remove batteries if storing for an extended period.
4. Periodically check and tighten any loose screws or components.
5. Have the laser level professionally calibrated annually or if you suspect any inaccuracies.
As you become more comfortable with your laser level, you can explore more advanced techniques:
Use the vertical mode to project a perfectly plumb line for tasks like wallpaper hanging or installing wall tiles.
Set up the laser level on a tripod and use it to check for high or low spots across a large floor area.
For outdoor projects, use the laser level with its detector to establish consistent grades for drainage or landscaping features.
If you encounter problems with your Pittsburgh Motorized Rotary Laser Level, try these solutions:
- If the laser doesn't turn on, check the batteries and ensure they're installed correctly.
- If the laser line is weak, clean the lens and check for any obstructions.
- If the self-leveling feature isn't working, make sure the pendulum lock is disengaged and the unit is within its self-leveling range.
Incorporating the Pittsburgh Motorized Rotary Laser Level into your workflow can significantly improve your efficiency and accuracy. Here are some ways to make the most of this tool:
- Use it in conjunction with a laser detector for extended range and outdoor use.
- Combine it with traditional measuring tools for comprehensive project planning.
- Experiment with different rotation speeds to find the best visibility for your working conditions.
While using the Pittsburgh Motorized Rotary Laser Level, always prioritize safety:
- Never look directly into the laser beam or point it at others.
- Wear laser safety glasses when working with the laser for extended periods.
- Ensure the laser level is securely mounted to prevent accidental falls.
- Be aware of your surroundings and any potential hazards when setting up the laser level.
The Pittsburgh Motorized Rotary Laser Level is a powerful tool that can dramatically improve the accuracy and efficiency of your construction and DIY projects. By following the setup instructions, understanding its various applications, and implementing the tips and techniques outlined in this guide, you'll be well-equipped to tackle a wide range of leveling tasks with confidence and precision.
Remember to maintain your laser level properly, regularly check its calibration, and always prioritize safety when using it. With practice and experience, you'll find that the Pittsburgh Motorized Rotary Laser Level becomes an indispensable part of your toolkit, helping you achieve professional-quality results in all your projects.
It's recommended to check the calibration of your laser level before each use and perform a full calibration at least once a year or if you suspect any inaccuracies. Regular calibration ensures the continued accuracy of your measurements.
Yes, you can use the laser level outdoors. However, for best visibility in bright conditions, you should use the included laser detector. This device helps you locate the laser beam even when it's not visible to the naked eye due to sunlight.
The Pittsburgh Motorized Rotary Laser Level can project a beam up to 100 feet in ideal conditions[3]. However, the effective range may vary depending on lighting conditions and whether you're using the laser detector.
To replace the batteries, locate the battery compartment on the laser level. Loosen the battery cover knob and remove the cover. Replace the four AA batteries, ensuring you follow the polarity markings in the compartment. Then, replace the cover and tighten the knob[1].
If your laser level won't self-level, first ensure that the pendulum lock is disengaged by pushing it to the right[2]. Also, check that the laser level is within its self-leveling range, typically within ±6 degrees of level. If the problem persists, check the batteries or consult the user manual for further troubleshooting steps.
