Using a rotary laser level for grading is an essential skill for construction and landscaping professionals. This tool allows for precise leveling and grading, ensuring that surfaces are adequately sloped for drainage and other purposes. In this comprehensive guide, we will explore how to effectively use a rotary laser level for grading, including setup, operation, and practical tips.

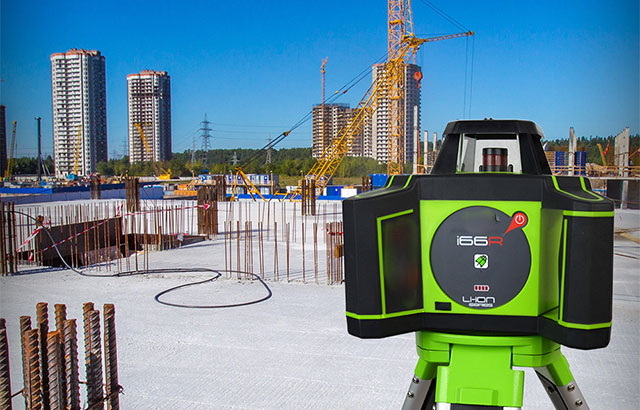

A rotary laser level is a type of leveling instrument that projects a rotating laser beam around a 360-degree plane. This tool is invaluable for grading tasks because it provides a consistent reference point across large areas.
Key Features:
- Self-Leveling: Most rotary lasers automatically adjust to ensure the beam is level.
- Rotating Beam: The beam rotates continuously, allowing users to see the level line from any angle.
- Durability: Designed for outdoor use, many rotary lasers are weather-resistant and rugged.
Before starting your grading project, ensure you have the following equipment:
- Rotary Laser Level: Choose one with the appropriate range and features for your project.
- Tripod: A sturdy tripod is essential for stability.
- Grade Rod (Leveling Rod): This helps measure the height of the laser beam.
- Laser Detector/Receiver: Used to detect the laser beam over long distances or in bright sunlight.
- Measuring Tape: For precise measurements.
- Safety Gear: Depending on your project, consider wearing gloves, safety glasses, and hard hats.

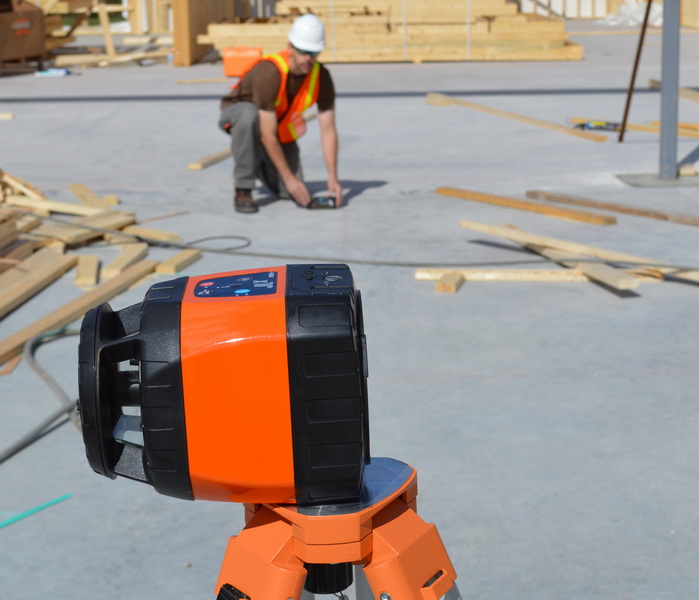

1. Choose a Stable Location:
- Set up your tripod on firm, level ground. Ensure it is stable and secure.
2. Mount the Laser Level:
- Attach the rotary laser level to the tripod securely. Make sure it is at eye level or slightly above for easy visibility.

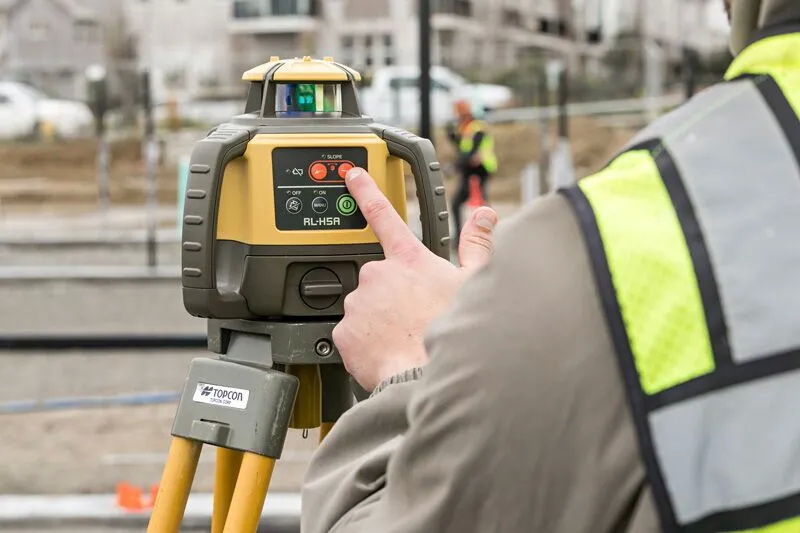

3. Power On and Self-Level:
- Turn on the laser level and allow it to self-level. This process usually takes a few seconds. The device will indicate when it is ready by stopping any blinking lights.
4. Adjust for Desired Height:
- Position the base of your grade rod at the desired height where you want to start measuring your grade.
Once your setup is complete, you can start measuring grades:
1. Find Initial Level:
- Adjust the laser detector on the grade rod until you hear a continuous beep, indicating that it is aligned with the laser beam.
2. Determine Desired Fall:
- Calculate how much fall (slope) you need based on your project requirements (e.g., 1 inch drop per 10 feet). This calculation can be crucial for ensuring proper drainage.
3. Adjust Detector Height:
- Move the laser detector up or down on the rod according to your calculated fall distance and secure it.
4. Walk to Grading Area:
- Move to where you want to establish your grade and place the grade rod vertically.
5. Check Level Again:
- Adjust the height of the rod until you again hear a continuous beep from the detector, indicating that it has found the new level.
6. Excavate or Fill as Necessary:
- Depending on whether you need to lower or raise the ground level, dig out soil or add material until you reach the desired height indicated by the detector.
- Use a Helper: Having someone assist can make it easier to communicate when adjusting heights or moving equipment.
- Check Calibration: Regularly check that your rotary laser is calibrated correctly, especially if moving it between locations.
- Consider Environmental Factors: Be aware of wind or uneven ground that may affect stability during setup.
- Use Markers: For larger areas, consider placing markers at key points along your grading path to maintain consistency in slope.
- Take Breaks: If working on extensive grading projects, take breaks to reassess your work periodically. This can help catch any errors early before they become more significant issues.
Rotary laser levels are commonly used in various grading applications:
- Landscaping: Establishing slopes for drainage in gardens and yards ensures water flows away from structures.
- Construction Sites: Setting foundations or ensuring proper drainage around buildings is critical for structural integrity.
- Road Construction: Grading roads for proper elevation and drainage helps maintain road safety and longevity.
- Irrigation Systems: Proper grading allows for effective water distribution across agricultural fields or gardens.
For those looking to deepen their understanding and effectiveness with rotary laser levels, consider these advanced techniques:
1. Creating Contours:
- Use multiple points of reference around your site to create contour lines that dictate how land should be shaped. This method is particularly useful in landscaping projects where aesthetic appeal matters alongside functionality.
2. Setting Up Multiple Lasers:
- For large projects, setting up multiple rotary lasers at different points can help cover more area efficiently without needing to move equipment frequently.
3. Integrating with Other Tools:
- Combine your rotary laser with other tools like GPS systems or digital levels for even greater precision in grading tasks.
4. Using Software Applications:
- Some modern rotary lasers can connect with software applications that help calculate grades automatically based on input parameters. This integration can save time and reduce human error during calculations.
5. Regular Maintenance Checks:
- Regularly inspect all components of your rotary laser setup, including batteries, lenses, and mechanical parts, to ensure everything functions smoothly throughout its use.
Using a rotary laser level for grading tasks significantly enhances accuracy and efficiency in construction projects. By following proper setup procedures, understanding how to measure grades effectively, and utilizing helpful tips, users can achieve precise results every time. The versatility of this tool makes it invaluable not only in construction but also in landscaping and roadwork applications, ensuring that professionals can deliver high-quality results consistently.
A rotary laser level is an instrument that projects a rotating beam of light around a horizontal plane, providing reference points for leveling tasks across large areas.
To set up your rotary laser level, find stable ground, mount it on a tripod, turn it on to allow self-leveling, and adjust it to your desired height using a grade rod.
Yes, most rotary laser levels are designed for outdoor use and are built to withstand various weather conditions while providing accurate readings.
If your rotary laser isn't leveling correctly, check its calibration according to manufacturer instructions and ensure it's placed on stable ground without obstructions.
Regularly check calibration, keep lenses clean from dust and debris, store it properly when not in use, and follow manufacturer guidelines for maintenance.
