The Pittsburgh Motorized Rotary Laser Level Kit is a versatile and essential tool for various construction, surveying, and DIY projects. This comprehensive guide will walk you through the process of using this powerful device effectively, ensuring you achieve accurate and precise leveling results for your projects.
The Pittsburgh Motorized Rotary Laser Level Kit is a professional-grade tool designed to provide accurate leveling measurements across a wide range of applications. It features a 360-degree rotating head and can work effectively up to a range of 100 feet[4]. This self-leveling device offers convenience and precision, making it an invaluable asset for both professionals and DIY enthusiasts.

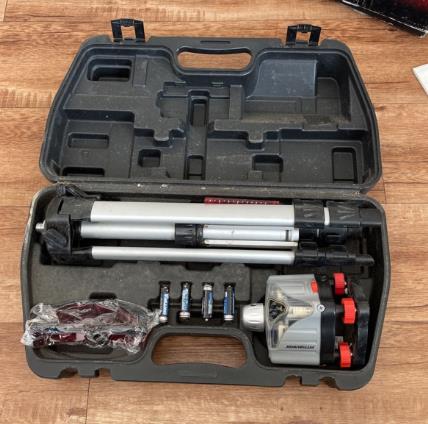

Before diving into the usage instructions, let's familiarize ourselves with the components typically included in the Pittsburgh Motorized Rotary Laser Level Kit:
1. Rotary laser level unit
2. Tripod
3. Laser receiver
4. Mounting bracket
5. Batteries
6. Carrying case
7. User manual
Select a stable surface or use the included tripod to set up your laser level. Ensure the area is free from vibrations and strong magnetic fields that could affect the accuracy of the device.

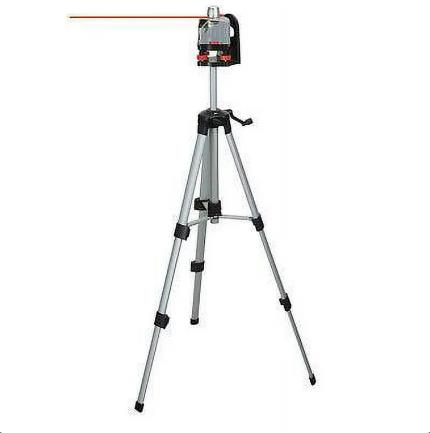

If using the tripod:
1. Extend the tripod legs to the desired height.
2. Attach the laser level to the tripod using the mounting bracket.
3. Ensure the device is securely fastened.
If placing on a surface:
1. Choose a flat, stable surface.
2. Use the built-in bubble levels to roughly align the unit.
1. Insert the batteries into the laser level unit[3].
2. Turn on the device using the power switch.
3. Allow the self-leveling mechanism to adjust. This usually takes a few seconds.
The Pittsburgh Motorized Rotary Laser Level typically offers multiple rotation speeds. Adjust the speed based on your project requirements:
- Slower speeds are ideal for indoor use and shorter distances.
- Faster speeds work better for outdoor applications and longer distances.
For extended range or outdoor use:
1. Turn on the laser receiver.
2. Move the receiver up and down until it detects the laser beam.
3. Use the indicators on the receiver to determine the exact level.
Once the laser level is set up and rotating:
1. Use the laser beam as a reference line.
2. Mark points along walls, floors, or other surfaces where the beam intersects.
3. These marks will serve as your level reference points.
1. Set up the laser level in the center of the room.
2. Rotate the laser to create a level line across the floor.
3. Use the laser receiver to check various points on the floor.
4. Mark high and low spots for adjustment.
1. Position the laser level to project a horizontal line on the wall.
2. Use this line as a reference for hanging pictures, shelves, or cabinets.
3. Ensure each item aligns with the laser line for perfect leveling.

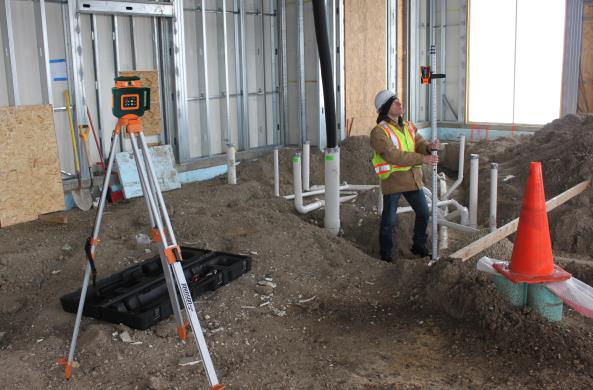

1. Set up the laser level on high ground.
2. Use the rotating beam to establish a consistent grade across the landscape.
3. Use the laser receiver on a grade rod to check elevations at various points.
1. Mount the laser level on a tripod at the desired ceiling height.
2. Project the laser line onto the ceiling surface.
3. Use this line as a guide for installing ceiling tiles, light fixtures, or drop ceilings.
To ensure the longevity and accuracy of your Pittsburgh Motorized Rotary Laser Level:
1. Clean the laser aperture and body with a soft, dry cloth after each use.
2. Store the device in its carrying case when not in use.
3. Remove batteries if storing for an extended period[3].
4. Periodically check and calibrate the device according to the manufacturer's instructions.
- Check if the laser is turned on and rotating.
- Ensure you're within the operating range (up to 100 feet)[4].
- Use the laser receiver for better detection, especially outdoors or in bright conditions.
- Verify that the self-leveling process is complete.
- Check for nearby sources of vibration or magnetic interference.
- Ensure the device is properly mounted and stable.
- Replace batteries if the laser beam appears weak or inconsistent.
- Use fresh, high-quality batteries for optimal performance[3].
When using the Pittsburgh Motorized Rotary Laser Level Kit, always prioritize safety:
1. Never look directly into the laser beam or point it at others.
2. Avoid using the device near reflective surfaces that could redirect the beam.
3. Keep the laser level out of reach of children.
4. Turn off the device when not in use to conserve battery life and prevent accidental exposure.
The Pittsburgh Motorized Rotary Laser Level Kit is a powerful tool that can significantly improve the accuracy and efficiency of your leveling tasks. By following this comprehensive guide, you'll be well-equipped to utilize this device effectively across a wide range of applications. Remember to always prioritize safety, maintain your equipment properly, and refer to the user manual for specific instructions related to your model.
The Pittsburgh Motorized Rotary Laser Level has a working range of up to 100 feet, making it suitable for both indoor and outdoor applications[4].
Yes, the Pittsburgh Motorized Rotary Laser Level features a self-leveling mechanism that automatically adjusts to provide accurate leveling within a certain range.
Absolutely. The Pittsburgh Motorized Rotary Laser Level is designed for both indoor and outdoor use. For outdoor applications, especially in bright conditions, it's recommended to use the included laser receiver for better visibility and accuracy.
While the frequency of calibration can vary depending on usage, it's generally recommended to check the calibration of your laser level before starting any critical project or at least once every six months. Refer to your user manual for specific calibration instructions.
The Pittsburgh Motorized Rotary Laser Level typically uses standard alkaline batteries. Always refer to your specific model's user manual for the correct battery type and installation instructions[3].
