Using a Johnson rotary laser level can significantly enhance your accuracy and efficiency in construction and landscaping projects. This guide will walk you through the setup, operation, and practical applications of a Johnson rotary laser level, ensuring you make the most of this essential tool.

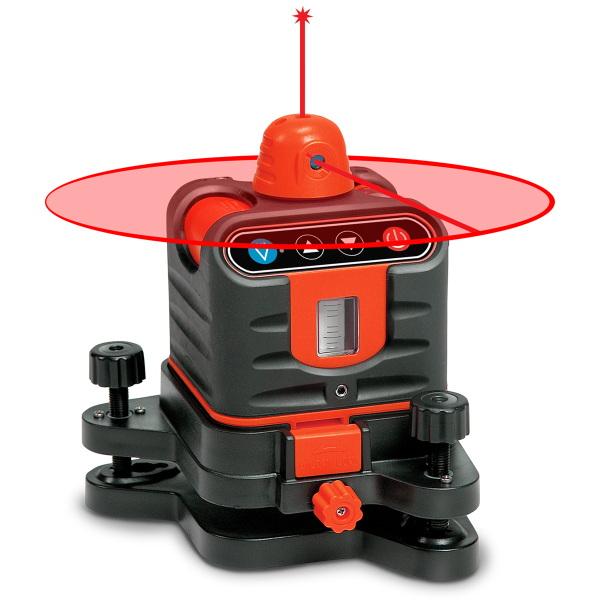

A rotary laser level is a versatile tool used for various leveling tasks. The Johnson rotary laser level is known for its durability, accuracy, and ease of use. It projects a rotating laser beam that creates a level reference line around a job site, which is invaluable for tasks such as grading, framing, and installing fixtures.
- Self-Leveling Mechanism: Automatically adjusts to ensure the beam is level.
- Durability: Built to withstand tough job site conditions.
- Visibility: Many models feature bright lasers that are easily visible even in daylight.
- Versatility: Suitable for indoor and outdoor use.
Setting up your Johnson rotary laser level is straightforward. Follow these steps to ensure proper operation:

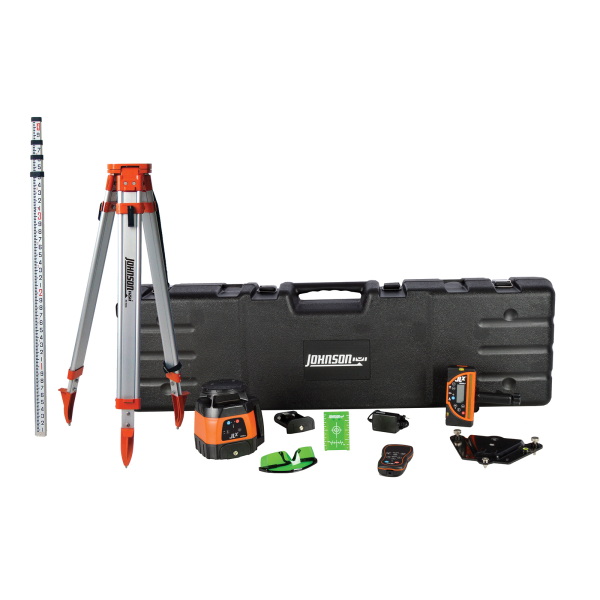

1. Gather Your Tools: Ensure you have your rotary laser level, tripod, batteries (if required), and any additional accessories like a laser detector.
2. Assemble the Tripod:
- Extend the tripod legs to a stable height.
- Securely attach the laser level to the tripod using the threaded mount.
3. Power On the Device:
- Insert batteries if necessary. Most models require either AA batteries or a rechargeable battery pack.
- Turn on the device by pressing the power button.
4. Leveling the Device:
- For self-leveling models, simply place the device on a flat surface and wait for it to self-level.
- If manual leveling is required (in vertical mode), adjust the leveling screws until the bubble in the vial is centered.
5. Adjusting Settings:
- Set the rotation speed according to your needs (high speed for outdoor use with detectors, low speed for indoor visibility).
- If applicable, enable any additional features such as slope settings.
Once set up, you can start using your rotary laser level effectively:
1. Positioning: Place your rotary laser level at one end of the area you wish to level.
2. Projecting the Beam:
- Activate the self-leveling feature (if applicable).
- The laser will begin rotating and projecting a horizontal line around the room or job site.
3. Marking Reference Points:
- Use a pencil or marker to indicate where the beam hits surfaces at various points around your workspace.
1. Switch to Vertical Mode: Lock the pendulum if necessary and adjust manually until level.
2. Use for Layouts:
- This mode is particularly useful for aligning walls or installing fixtures at specific heights.
3. Ensure Accuracy: Regularly check that your adjustments maintain vertical alignment as you work.
Johnson rotary laser levels are ideal for various tasks across different fields:
- Grading and Excavation: Establishing accurate slopes for drainage.
- Framing Walls: Ensuring studs are plumb and aligned properly.
- Installing Cabinets and Shelving: Achieving level installations across multiple units.
- Tile Installation: Ensuring tiles are laid evenly on floors or walls.
When working outdoors, visibility can be an issue due to sunlight. Here's how to effectively use your rotary laser level in outdoor settings:
- Use with a Detector: Pair your laser with a detector to catch the beam when it's not visible directly. This is crucial for larger outdoor areas where precision is necessary.
- Establish Ground Levels: Use your rotary laser to set grades for landscaping projects like patios or decks by determining where soil needs to be added or removed.
- Aligning Structures: Whether you're building fences or foundations, use the rotating beam to ensure everything aligns correctly over long distances.
To ensure longevity and accuracy of your Johnson rotary laser level:
- Keep it clean and free from dust and debris.
- Store it in its protective case when not in use.
- Regularly check battery levels and replace them as needed.
Many Johnson rotary laser levels come equipped with advanced features that enhance their functionality:
- Variable Speed Control: Adjusts how quickly the laser rotates; slower speeds improve visibility in bright conditions while faster speeds allow for quicker setups in less light.
- Scan Mode: Limits rotation to a specific angle (like 30 or 60 degrees) which can help focus on particular areas without needing full rotation visibility.
- Dual-Axis Slope Mode: Allows users to set slopes in both X and Y axes for more complex grading tasks, such as creating drainage paths or sloped surfaces.
Even experienced users can make mistakes when using a rotary laser level. Here are some common pitfalls to avoid:
- Not Allowing Time to Self-Level: Always give your self-leveling device time to adjust before taking measurements; rushing this step can lead to inaccurate results.
- Neglecting Calibration Checks: Regularly verify that your device is calibrated correctly, especially after transporting it between job sites or after heavy use.
- Ignoring Environmental Factors: Be aware of how wind or uneven ground can affect readings outdoors; secure your tripod firmly on stable ground whenever possible.
Using a Johnson rotary laser level can greatly enhance your construction projects by providing accurate leveling references quickly and efficiently. By following this guide, you can set up, operate, and maintain your device effectively, ensuring optimal performance on every job site. With its versatility across various applications—both indoors and outdoors—a rotary laser level is an indispensable tool for any contractor or DIY enthusiast looking to achieve professional results in their work.
The range varies by model but many can project a beam up to 2,000 feet in diameter outdoors when used with a detector.
Yes, they are designed for both indoor and outdoor use, making them versatile for various projects.
Most models will indicate when they are out of self-leveling range with visual or audible alarms; regular checks against known levels can also help verify calibration.
Check battery levels first; if they are fine, ensure that there is no obstruction or dirt on the lens that could be affecting visibility.
While not always necessary indoors due to visibility, using a detector outdoors or in bright conditions can significantly enhance accuracy in locating the beam.
