Using a Dewalt rotary laser level can significantly enhance the accuracy and efficiency of your construction or DIY projects. This guide will walk you through everything you need to know about setting up and using a Dewalt rotary laser level, including tips, techniques, and common applications.

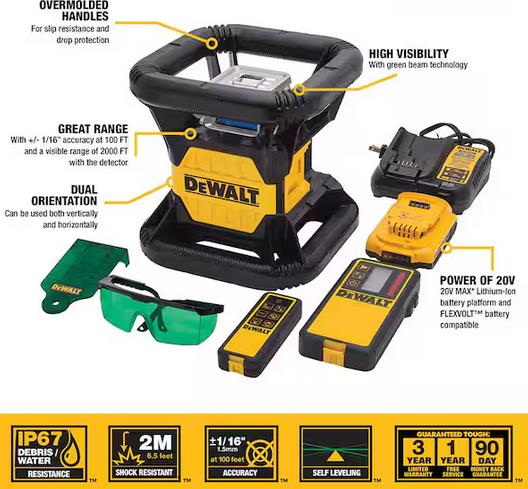

Rotary laser levels are essential tools for achieving precise horizontal and vertical alignments across large distances. They work by rotating a laser beam 360 degrees, allowing users to establish a level reference line around a room or outdoor area. Dewalt's rotary laser levels are particularly known for their durability and accuracy, making them suitable for both indoor and outdoor applications.
- 360-Degree Coverage: Provides a complete level reference around the workspace.
- High Accuracy: Many models offer accuracy within 1/16 inch at 100 feet.
- Durability: Designed to withstand tough job site conditions.
- Ease of Use: Self-leveling features simplify setup.
Before you begin using your Dewalt rotary laser level, it's essential to set it up correctly. Follow these steps:
1. Choose the Right Location:
- Place the laser level on a stable surface such as a tripod, sawhorse, or flat ground.
- Ensure that the surface is as level as possible.
2. Power On the Device:
- Insert the required batteries (usually D batteries) into the unit.
- Turn on the rotary laser level using the power button.
3. Self-Leveling Feature:
- If your model has a self-leveling feature, allow it to calibrate itself. This usually takes less than a minute.
- For manual leveling models, adjust the leveling screws until the bubble vial indicates that the unit is level.
4. Check for Obstructions:
- Ensure that there are no obstructions in the path of the laser beam for accurate readings.
Once your rotary laser level is set up, you can start using it for various applications.
1. Aim at Target Surface:
- Point the laser at the wall or surface where you want to establish a level line.
2. Make Marks:
- Use a pencil or chalk to mark where the laser beam hits the wall.
3. Repeat as Necessary:
- Move around the room to mark additional points as needed.

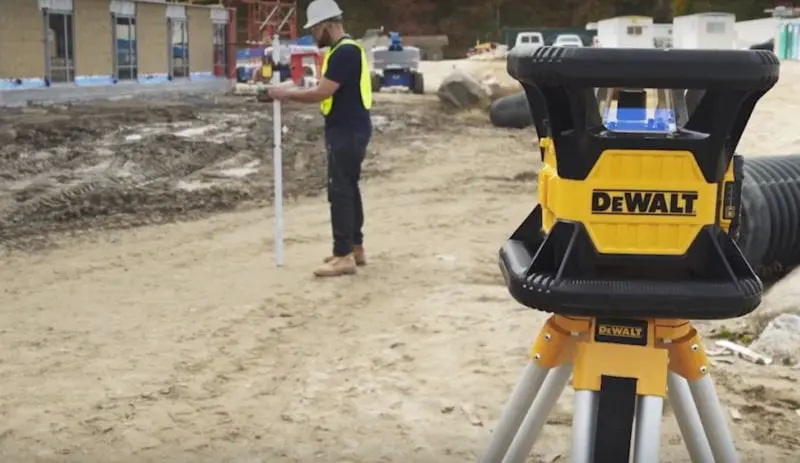

1. Using with a Detector:
- For outdoor use where visibility may be limited, attach a laser detector to a grade rod.
- Adjust the detector until it beeps, indicating it has found the laser line.
2. Establishing Grades:
- Move the detector up or down on the grade rod to set specific elevations for digging or grading tasks.
- Visibility: Green lasers are more visible in daylight compared to red lasers; consider this when choosing your model.
- Safety First: Always wear protective eyewear when operating laser equipment to avoid eye damage from direct exposure to laser beams.
- Battery Management: Keep spare batteries on hand, especially for long projects where power may be an issue.
- Framing: Ensuring walls are straight and level during construction.
- Tile Installation: Establishing level lines for tile placement on floors and walls.
- Landscaping: Grading land accurately for drainage and aesthetics.
- Fencing: Ensuring fence posts are installed at the same height.
Dewalt rotary lasers come equipped with various advanced features that enhance their usability and precision:
This feature allows users to create slopes in both horizontal (X-axis) and vertical (Y-axis) directions. This is particularly useful in applications like drainage systems where precise angles are crucial.
Scan mode enables users to project a narrow beam of light at specific angles (e.g., 15°, 45°, or 90°). This can help in aligning objects more accurately without needing to reposition the entire unit.
Some models include Bluetooth connectivity that allows users to connect their rotary laser to mobile devices via an app. This feature provides additional functionalities such as tool tracking and remote adjustments.
Regular calibration checks ensure that your rotary laser is functioning correctly:
1. Positioning:
- Set up your tripod between two walls that are at least 50 feet apart.
2. Leveling Check:
- Turn on the device and allow it to self-level.
- Mark where the beam hits both walls and measure any discrepancies.
3. Adjustments:
- If needed, make adjustments until both marks align within acceptable accuracy limits (usually specified in your user manual).
To ensure longevity and optimal performance of your Dewalt rotary laser level:
- Clean Regularly: Dust and debris can interfere with laser visibility; clean lenses with a soft cloth regularly.
- Store Properly: Keep your device in its case when not in use to protect it from physical damage.
- Battery Care: Remove batteries if storing for an extended period to prevent corrosion.
Using a Dewalt rotary laser level can greatly improve your project's accuracy and efficiency. By following proper setup procedures and understanding how to utilize its features effectively, you can achieve professional-level results in your construction or DIY tasks. With advanced features like dual-axis slope mode and Bluetooth connectivity, these tools provide versatility across various applications while ensuring precision every step of the way.
A rotary laser level is a tool that emits a rotating laser beam, providing a constant reference point for horizontal and vertical alignment over large distances.
To calibrate, place it on a stable surface or tripod, power it on, and allow it to self-level (if applicable). For manual models, adjust leveling screws until bubble vials indicate correct alignment.
Yes, Dewalt rotary laser levels are designed for both indoor and outdoor use. For outdoor applications, use a detector to ensure visibility over longer distances.
Check that it's placed on a stable surface and not exceeding its self-leveling range (usually around 4 degrees). If issues persist, consult the user manual for troubleshooting tips.
The visibility range varies by model; many Dewalt lasers can be seen up to 1500 feet with an appropriate detector under ideal conditions.
