Rotary laser levels have become indispensable tools in the construction industry, revolutionizing the way professionals achieve precise measurements and alignments. These versatile devices project a 360-degree laser beam, creating a level reference plane that can be used for a wide range of applications, from grading and excavation to installing drop ceilings and cabinets. In this comprehensive guide, we'll explore the ins and outs of using a construction rotary laser level, providing you with the knowledge and techniques to maximize its potential on your job sites.
A rotary laser level is a sophisticated measuring instrument that emits a rotating laser beam to create a perfectly level plane across a large area. It consists of a laser diode that spins rapidly inside a housing, projecting a continuous line of light that can be used as a reference for leveling and alignment tasks.
There are two main types of rotary laser levels:
1. Manual Rotary Laser Levels: These require the user to manually adjust the device to achieve level using built-in bubble vials.
2. Self-Leveling Rotary Laser Levels: These models use either a pendulum system or electronic servo-motors to automatically level themselves within a certain range, typically around 5 degrees.
Self-leveling models are generally preferred for their ease of use and accuracy, especially in construction settings where time is of the essence[1].
The first step in using a rotary laser level is selecting an appropriate setup location. Consider the following factors:
- Stability of the ground
- Visibility across the work area
- Protection from wind and other environmental factors

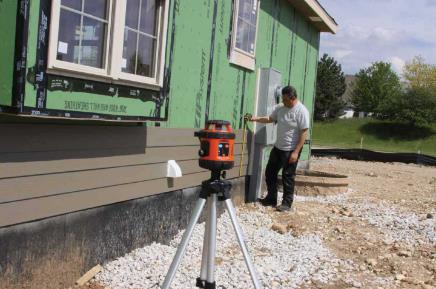

Most rotary laser levels are designed to be mounted on a tripod for stability and height adjustment. Follow these steps:
1. Extend the tripod legs and ensure they are locked securely.
2. Attach the laser level to the tripod using the threaded mount.
3. Roughly level the tripod by adjusting the leg lengths.
For self-leveling models, ensure the device is within its self-leveling range. Manual models will require more precise adjustment using the bubble vials[2].
Once your rotary laser level is securely mounted, it's time to power it on:
1. Press the power button to turn on the device.
2. For self-leveling models, allow the unit time to find level. This process typically takes less than a minute.
3. Once level is achieved, the laser will begin to rotate, creating a 360-degree reference plane.
Rotary laser levels excel at ensuring cabinets and countertops are perfectly level. Here's how to use them for this purpose:
1. Set up the laser level in the center of the room.
2. Adjust the height of the laser to match the desired cabinet or countertop height.
3. Use the laser line as a reference to mark level points around the room.
4. Install cabinets or countertops, checking against the laser line for accuracy.
For installing drop ceilings, follow these steps:
1. Mount the laser level at the desired ceiling height.
2. Rotate the laser to project both horizontal and vertical lines if your model allows.
3. Use the horizontal line to mark the perimeter of the room for the track installation.
4. Use the vertical lines to ensure T-bar hangers are plumb.
Outdoor use of rotary laser levels often requires additional equipment due to the brightness of sunlight and the larger areas involved.
For grading and excavation tasks:
1. Set up the laser level on stable ground or a tripod.
2. Turn on the laser and allow it to self-level.
3. Use a laser detector attached to a grade rod to find the laser plane at various points across the site.
4. Adjust the ground level as needed to match the desired grade[3].
When working on foundations:
1. Establish a benchmark elevation using the laser level and detector.
2. Mark this elevation on stakes around the foundation perimeter.
3. Use these marks to ensure consistent footing depths and wall heights.
Many rotary laser levels offer slope or grade setting capabilities:
1. Set up the laser level as usual.
2. Use the slope controls to adjust the laser plane to the desired angle.
3. Lock in the slope setting.
4. Use a laser detector to check elevations along the slope.
Some high-end models offer dual slope capability, allowing you to set different slopes on the X and Y axes:
1. Set up the laser and enter dual slope mode.
2. Input the desired slope percentage for each axis.
3. The laser will adjust to create a plane with the specified slopes.
To ensure the longevity and accuracy of your rotary laser level:
- Clean the lens and housing regularly with a soft, dry cloth.
- Store the device in its protective case when not in use.
- Check and replace batteries as needed.
- Have the unit calibrated annually or after any significant impacts[4].
When using a rotary laser level, always:
- Wear appropriate eye protection designed for laser safety.
- Avoid looking directly into the laser beam.
- Be aware of reflective surfaces that might redirect the laser beam.
- Follow all manufacturer safety guidelines and warnings.
Mastering the use of a construction rotary laser level can significantly improve the efficiency and accuracy of your projects. From basic leveling tasks to complex grading operations, these versatile tools have become indispensable on modern construction sites. By following the guidelines and techniques outlined in this article, you'll be well-equipped to tackle a wide range of leveling challenges with confidence and precision.
Remember that practice makes perfect. As you become more familiar with your rotary laser level, you'll discover new applications and refine your techniques. Always prioritize safety and maintain your equipment properly to ensure reliable performance for years to come.
Rotary laser levels are highly accurate, typically offering precision within ±1/16 inch over 100 feet. However, accuracy can vary between models, so it's important to check the specifications of your particular device. Regular calibration and proper use are crucial for maintaining this level of accuracy.
While the laser beam itself may be difficult to see in bright sunlight, rotary laser levels can still be effectively used outdoors with the help of a laser detector. The detector can pick up the laser signal even when it's not visible to the naked eye, allowing for accurate measurements in sunny conditions.
It's generally recommended to calibrate your rotary laser level at least once a year or after any significant impact or drop. Some professionals choose to calibrate their devices more frequently, especially if they're used for high-precision work. Always refer to your manufacturer's guidelines for specific calibration recommendations.
Green laser beams are typically more visible to the human eye than red lasers, especially in brighter conditions or over longer distances. However, green laser levels often consume more power and can be more expensive. Red lasers are still highly effective for most applications and tend to have longer battery life.
Yes, many rotary laser levels offer both horizontal and vertical beam options. To use the vertical function, you typically need to rotate the laser housing 90 degrees on its mount. This allows you to project a vertical plane for tasks such as wall plumbing, door frame installation, or tile layout.
