Bosch rotary laser levels are essential tools for construction professionals and DIY enthusiasts alike. These precision instruments provide accurate measurements and alignments for various projects, from simple home improvements to large-scale construction sites. In this comprehensive guide, we'll explore how to use a Bosch rotary laser level effectively, covering setup, operation, and best practices.

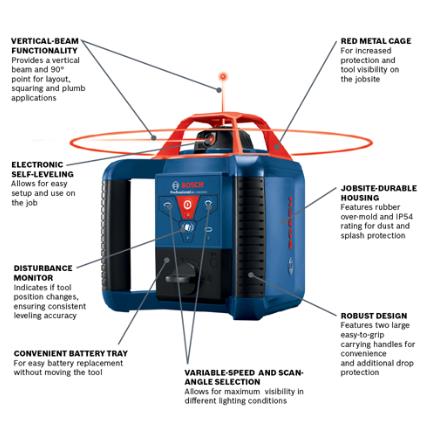

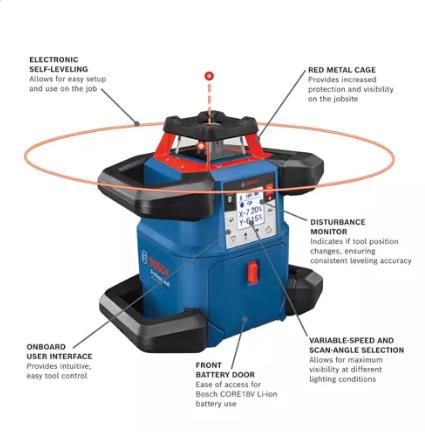

Bosch rotary laser levels are advanced tools designed to project a 360-degree laser beam, creating a level reference plane. They are self-leveling, meaning they automatically adjust to provide accurate measurements within seconds of being set up.
1. Laser unit
2. Tripod
3. Receiver/detector
4. Remote control (for some models)
5. Laser target plate
6. Laser viewing glasses
Select a stable surface or use a tripod to set up your laser level. Ensure the area is free from vibrations and strong magnetic fields that could affect accuracy.

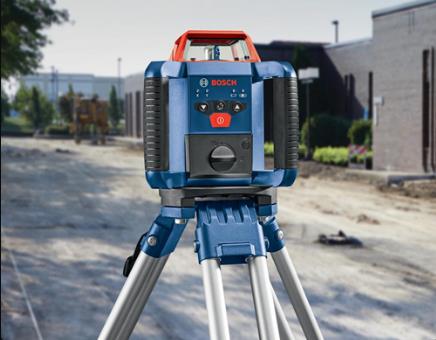

If using a tripod:
1. Extend the tripod legs and place it on a stable surface.
2. Attach the laser level to the tripod using the mounting thread.
3. Adjust the tripod to roughly level the laser unit.
If placing on a surface:
1. Find a flat, stable surface at the appropriate height.
2. Place the laser level on the surface, ensuring it's roughly level.
Locate the power button, usually marked with a power symbol (⏻), and press it to turn on the laser level. Some models may emit a beep or flash their lasers briefly to indicate they're ready[1].
Once powered on, the Bosch rotary laser level will begin its self-leveling process. During this time, you may notice:
- The leveling indicator flashing green
- The laser beam flashing or rotating slowly
Wait until the leveling indicator turns solid green, indicating that the device has successfully self-leveled[7].
Bosch rotary laser levels typically offer multiple operating modes to suit different applications. Common modes include:
1. Rotational mode
2. Line mode
3. Point mode
To switch between modes, use the dedicated buttons on the laser unit or the remote control[1][7].
In rotational mode, you can adjust the speed of the rotating laser beam. This is particularly useful when working with or without a laser receiver:
- Higher speeds (e.g., 300 rpm) are better when using a laser receiver
- Lower speeds improve visibility of the laser beam when working without a receiver
Use the rotational operation button to cycle through available speeds[1].
For outdoor use or in bright conditions, a laser receiver is essential. To use the receiver:
1. Turn on the receiver and select the appropriate sensitivity setting.
2. Move the receiver up and down to locate the laser beam.
3. Use the indicators on the receiver to determine if you need to move it up or down to find the level point[4].
Once you've set up your Bosch rotary laser level and selected the appropriate mode:
1. Use the laser beam as a reference for your project.
2. Mark points along the laser line for consistent leveling or alignment.
3. For vertical alignments, use the plumb beam feature if available on your model[1].
Some Bosch rotary laser levels offer a slope function, allowing you to create intentional slopes for drainage or other purposes. Consult your specific model's manual for instructions on using this feature[8].
This feature alerts you if the laser level has been disturbed, ensuring continued accuracy. If activated:
1. The rotation will stop.
2. The laser will flash.
3. The shock-warning indicator will blink red.
To reset, press the shock-warning button and allow the device to re-level[2].
To maintain accuracy, perform regular calibration checks as outlined in your user manual. This typically involves:
1. Setting up the laser level a specific distance from a wall.
2. Marking the laser point.
3. Rotating the device 180 degrees and marking the new point.
4. Comparing the two points to check for discrepancies[10].
1. Always allow the laser level to fully self-level before use.
2. Keep the laser level and receiver clean and protected from dust and moisture.
3. Use the included laser viewing glasses to improve beam visibility in bright conditions.
4. Regularly check and replace batteries to ensure consistent performance.
5. When working outdoors, shield the laser level from direct sunlight to prevent overheating.
Bosch rotary laser levels are versatile tools suitable for a wide range of applications, including:
1. Construction site leveling
2. Installing drop ceilings
3. Aligning walls and partitions
4. Setting grades for landscaping
5. Installing cabinets and fixtures
6. Laying tile or flooring
Mastering the use of a Bosch rotary laser level can significantly improve the accuracy and efficiency of your projects. By following the steps outlined in this guide and practicing with your specific model, you'll be able to tackle a wide range of leveling and alignment tasks with confidence. Remember to always prioritize safety, maintain your equipment, and refer to your user manual for model-specific instructions.
Bosch rotary laser levels are known for their high accuracy, typically within ±1/16 inch at 100 feet (±1.5 mm at 30 m). However, accuracy can vary slightly between models, so always check the specifications for your specific device.
Yes, most Bosch rotary laser levels are designed for both indoor and outdoor use. For outdoor applications, especially in bright sunlight, you'll need to use the laser receiver to detect the beam accurately.
It's recommended to check the calibration of your Bosch rotary laser level before each major project or at least once a month if used regularly. If you suspect the device has been knocked or dropped, perform a calibration check immediately.

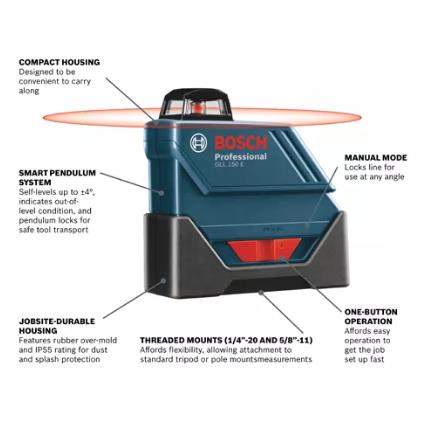

A rotary laser level projects a 360-degree laser plane, ideal for large areas and long-distance leveling. A line laser level projects fixed lines, which is more suitable for smaller indoor projects like tiling or cabinet installation.
While many Bosch rotary laser levels have some degree of water resistance, it's best to avoid using them in heavy rain or wet conditions. Always check your model's IP rating for specific water and dust resistance information.
