Rotary laser levels have become indispensable tools in construction and landscaping projects, particularly for grading tasks. These versatile devices provide accurate and efficient means of establishing level planes and slopes across large areas. In this comprehensive guide, we'll explore the ins and outs of using a basic rotary laser level for grading, covering everything from setup to advanced techniques.

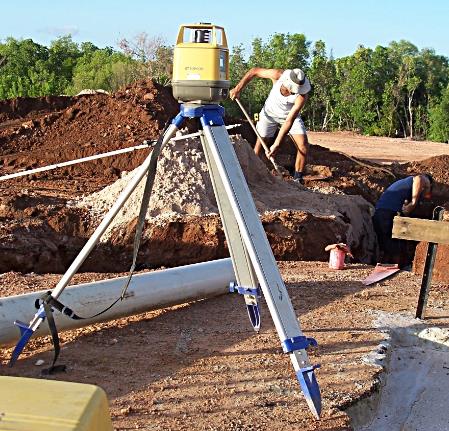

Before diving into the practical aspects, it's essential to understand what a rotary laser level is and how it works. A rotary laser level is a device that projects a continuous 360-degree laser beam, creating a level plane of light[1]. This beam rotates at high speed, giving the appearance of a solid line when viewed from a distance.
1. Laser Unit: The main device that emits the rotating laser beam.
2. Tripod: Provides a stable platform for the laser unit.
3. Detector/Receiver: Picks up the laser beam and indicates whether a point is above, below, or at level.
4. Grade Rod: A measuring stick used with the detector to determine elevations.
- Manual Leveling: Requires manual adjustment using bubble vials.
- Self-Leveling: Uses a pendulum system to automatically level within a certain range.
- Electronic Self-Leveling: Employs servo motors for the highest accuracy[3].
Proper setup is crucial for accurate grading. Follow these steps to ensure your rotary laser level is ready for use:
1. Choose a Suitable Location: Select a spot with a clear view of the entire area you need to grade[1].
2. Set Up the Tripod: Place the tripod on stable ground. Ensure it's firmly planted and level.
3. Mount the Laser Unit: Securely attach the laser unit to the tripod.
4. Power On and Self-Level: Turn on the laser and allow it to self-level if it has this feature[2].
5. Verify Calibration: It's good practice to check the calibration before starting any major project[3].
Once your rotary laser level is set up, you can begin using it for grading:
1. Determine Your Reference Point: Choose a starting point for your grade.
2. Set Up the Detector: Attach the laser detector to a grade rod.
3. Find Level: Move the detector up and down the rod until it indicates level[2].
4. Mark Reference Points: Use stakes or flags to mark level points across your work area.
5. Adjust for Grade: If you need a slope, use the grade setting feature on your laser level.
For projects requiring a precise slope:
1. Calculate the Grade: Determine the rise or fall over a given distance.
2. Use the Grade Setting Feature: Input the desired grade into your laser level.
3. Verify the Grade: Check multiple points along the slope to ensure accuracy[6].
Some projects may require slopes in two directions:
1. Set the Primary Slope: Follow the steps for setting a specific grade.
2. Rotate the Laser: Turn the unit 90 degrees.
3. Set the Secondary Slope: Input the grade for the perpendicular direction[8].
- Regularly check the laser level's calibration.
- Use the detector's fine-resolution mode for more precise measurements.
- Account for the height of the laser above the ground in your calculations.
- In bright sunlight, use laser enhancement glasses or a sun shield.
To ensure your rotary laser level remains accurate and functional:
- Clean the laser unit and accessories after each use.
- Store in a dry, dust-free environment.
- Check and replace batteries regularly.
- Have the unit professionally calibrated annually.
Rotary laser levels are versatile tools used in various grading applications:
1. Excavation: Ensuring proper depth and slope for foundations and basements.
2. Drainage Systems: Creating the correct fall for water flow in pipes and ditches.
3. Landscaping: Leveling gardens, lawns, and hardscaping elements.
4. Road Construction: Establishing proper grades for road surfaces and shoulders.
5. Agricultural Land Leveling: Preparing fields for irrigation and crop management.
Let's walk through a practical example of using a rotary laser level to grade a driveway:
1. Site Assessment: Determine the desired slope for proper drainage (typically 1-2%).
2. Setup: Position the laser level at the high point of the driveway.
3. Reference Measurement: Take a reading at the starting point.
4. Grading Process:
- Move the detector along the planned driveway path.
- Adjust the ground level to match the laser beam at the correct grade.
- Use stakes to mark grade points every few feet.
5. Verification: Double-check the grade along the entire length of the driveway.
This process ensures a consistent slope that will prevent water pooling and erosion.
Mastering the use of a basic rotary laser level for grading can significantly improve the efficiency and accuracy of your construction or landscaping projects. By understanding the principles behind these devices and following the proper setup and operation procedures, you can achieve professional-grade results. Remember to always prioritize safety, maintain your equipment, and practice to refine your skills. With time and experience, using a rotary laser level will become second nature, allowing you to tackle even the most challenging grading tasks with confidence.
Rotary laser levels can be extremely accurate, with many models offering precision within 1/16 inch over 100 feet. The accuracy depends on the quality of the laser level, with electronic self-leveling models typically providing the highest precision[3].
Yes, rotary laser levels can be used outdoors, but visibility may be limited in bright sunlight. To overcome this, use a laser detector, which can pick up the beam even when it's not visible to the naked eye. Some models also offer brighter beams or green lasers, which are more visible in daylight conditions[6].
Calibration typically involves checking the laser's level in multiple directions and adjusting if necessary. Here's a basic process:
1. Set up the laser on a flat surface or tripod between two walls.
2. Mark the laser line on both walls.
3. Rotate the laser 180 degrees and mark the lines again.
4. Compare the lines – they should match if the laser is calibrated.
5. If they don't match, consult your user manual for adjustment instructions or seek professional calibration[3].
The main difference is visibility. Green laser beams are typically more visible to the human eye, especially in bright conditions or over longer distances. However, green laser levels are often more expensive and may consume more battery power. Red lasers are more common and generally sufficient for most applications, especially when used with a detector[6].
To set a grade or slope:
1. Set up your laser level as usual.
2. Use the grade setting feature on your laser or remote control.
3. Input the desired grade (usually as a percentage or ratio).
4. The laser will automatically adjust its plane to the specified grade.
5. Use your detector to check and mark points along the slope[8].
Always refer to your specific model's instructions, as the exact process may vary between different laser levels.
