Rotary laser levels are indispensable tools in construction, landscaping, and surveying projects. These devices provide accurate horizontal and vertical reference lines over long distances, making them invaluable for tasks such as grading, setting foundations, and installing drop ceilings. However, to ensure the reliability of these tools, it's crucial to know how to test and calibrate them properly. In this comprehensive guide, we'll explore the step-by-step process of testing a rotary laser level, discuss common issues, and provide tips for maintaining accuracy.

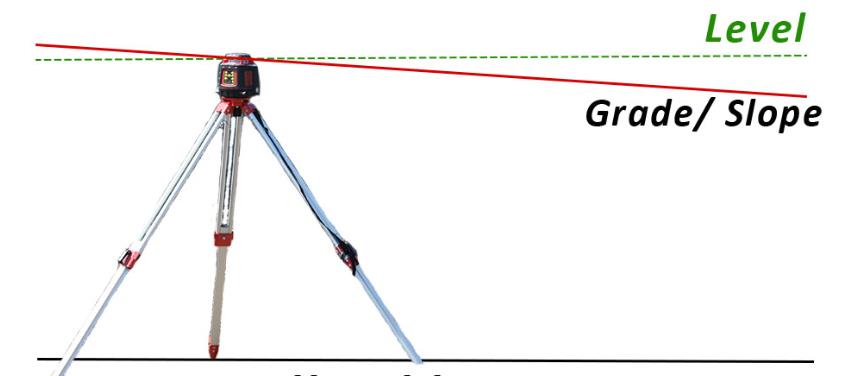

Before diving into the testing process, it's important to understand what a rotary laser level is and how it works. A rotary laser level projects a 360-degree laser beam that rotates rapidly, creating a level plane of light. This plane can be used as a reference for various construction and surveying tasks.
Key components of a rotary laser level include:
1. Laser diode
2. Rotating prism or mirror
3. Self-leveling mechanism
4. Control panel
5. Detector or receiver
Most rotating lasers will also self-level – typically when positioned within four degrees of level (depending on the manufacturer). Some will also let the user know if it has been thrown off-course. It's often referred to as a 'height alert' feature – meaning the laser will stop working and alert you if its height has been bumped out of level.
Regular testing of your rotary laser level is crucial for several reasons:
1. Ensure accuracy: Over time, laser levels can drift out of calibration due to wear and tear or accidental impacts.
2. Maintain project quality: Inaccurate measurements can lead to costly mistakes in construction projects.
3. Comply with standards: Many industries have specific accuracy requirements for leveling equipment.
4. Extend tool life: Regular testing helps identify issues early, preventing further damage.

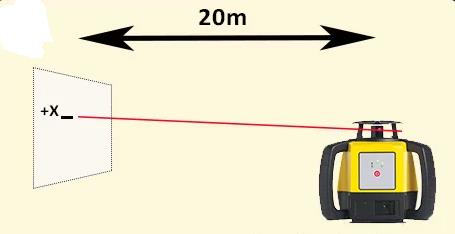

Now, let's dive into the process of testing your rotary laser level. This method is known as the "180-degree test" and is widely used in the industry.
- Choose a suitable location: Find a room with two opposing walls at least 30 feet apart.
- Mount the laser level: Set up your rotary laser level on a stable tripod or flat surface.
- Ensure stability: Make sure the tripod or surface is secure and won't move during the test.
- Place the laser level about 1 foot away from one wall.
- Align it so that the laser beam hits both opposing walls.
- Turn on the laser and allow it to self-level if it has this feature.
- On the far wall (Wall A), mark the exact point where the laser beam hits.
- Label this mark "A1".
- Carefully rotate the laser level 180 degrees without changing its height or position.
- Ensure it's still about 1 foot from the near wall.
- On the near wall (Wall B), mark where the laser beam hits.
- Label this mark "B1".
- Move the laser level to about 1 foot from Wall B.
- Align it so the laser beam hits mark B1.
- On Wall A, mark where the laser beam now hits.
- Label this mark "A2".
- Measure the vertical distance between marks A1 and A2 on Wall A.
- If this distance is within the manufacturer's specified accuracy (typically 1/8 inch per 100 feet), your laser level is calibrated correctly.
The difference between A1 and A2 represents twice the actual error of your laser level. To calculate the true error:
1. Measure the distance between the two walls.
2. Divide the A1-A2 difference by 2.
3. Compare this to the manufacturer's accuracy specification.
For example, if the walls are 30 feet apart and the A1-A2 difference is 1/4 inch:
- True error = 1/4 inch ÷ 2 = 1/8 inch
- Error per 100 feet = (1/8 inch ÷ 30 feet) × 100 = 0.417 inches per 100 feet
If your laser level's specified accuracy is ±1/8 inch per 100 feet, this result would indicate that calibration is needed.
While the 180-degree test is the most common, there are other methods to test your rotary laser level:

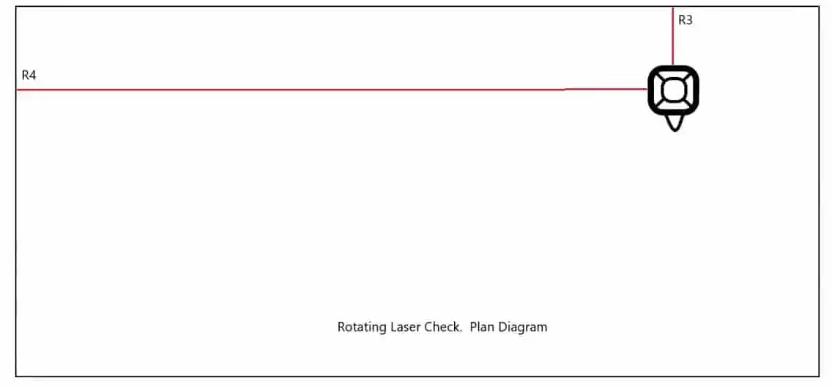

This method involves setting up the laser in the center of a room and marking the beam position on all four walls. Rotate the laser 90 degrees three times, marking each position. If all marks align, the laser is accurate.
For lasers with vertical beam capability:
1. Set up the laser close to a wall.
2. Project a vertical line and mark two points on the wall.
3. Use a plumb bob to check if the laser line is truly vertical.
For testing over longer distances:
1. Set up the laser on a tripod.
2. Use a laser detector on a grade rod at various distances.
3. Compare readings to ensure consistency over range.
Even with regular testing, you may encounter issues with your rotary laser level. Here are some common problems and solutions:
1. Laser won't self-level:
- Check if it's within the self-leveling range (usually ±5°).
- Ensure the locking mechanism is disengaged.
- Check for low battery power.
2. Weak or dim laser beam:
- Replace batteries.
- Clean the laser output window.
- Check if the laser is in pulse/detector mode, which can appear dimmer.
3. Inconsistent readings:
- Verify that the tripod or surface is stable.
- Check for nearby sources of vibration.
- Ensure the laser is not in manual mode.
4. Detector not picking up the beam:
- Check detector batteries.
- Ensure the detector is set to the correct sensitivity.
- Verify that the laser is in pulse/detector mode if required.
To keep your rotary laser level in top condition:
1. Clean regularly: Use a soft, dry cloth to remove dust and debris.
2. Store properly: Keep in a protective case when not in use.
3. Handle with care: Avoid drops and impacts.
4. Use fresh batteries: Replace batteries regularly or use rechargeable options.
5. Protect from extreme temperatures: Avoid leaving the laser in very hot or cold environments.
For those who need to perform more precise calibration, consider these advanced techniques:
This method involves checking both the X and Y axes of the laser:
1. Set up the laser as in the 180-degree test.
2. Mark the beam position on all four walls.
3. Rotate the laser 90 degrees and repeat the markings.
4. Compare the marks to ensure they align on all walls.
Some high-end rotary lasers have built-in temperature compensation. To test this:
1. Allow the laser to acclimate to room temperature.
2. Perform a standard calibration test.
3. Move the laser to a significantly warmer or cooler environment.
4. Allow it to acclimate, then retest to ensure accuracy is maintained.
When using a rotary laser level indoors:
- Take advantage of the visible beam for direct alignment.
- Use the laser for installing drop ceilings, aligning cabinets, or setting tile.
- In large spaces, consider using a detector for increased range.
Outdoor use presents unique challenges:
- Always use a detector, as the laser beam is often not visible in daylight.
- Set up a benchmark point for consistent measurements across a site.
- Be aware of how temperature changes throughout the day can affect accuracy.
To maximize efficiency, consider how rotary laser levels can work with other tools:
- Combine with GPS systems for precise site mapping.
- Use with machine control systems on excavators or graders for automated earthmoving.
- Pair with digital measuring devices for comprehensive site documentation.
Proper training is essential for anyone using a rotary laser level:
- Ensure all users understand the principles of operation and calibration.
- Conduct regular safety briefings on laser eye protection.
- Practice proper setup and testing procedures to maintain accuracy.
As technology advances, we can expect to see improvements in rotary laser levels:
- Increased range and accuracy through improved optics and electronics.
- Integration with smartphones and tablets for remote control and data logging.
- Enhanced durability and battery life for extended field use.
Testing and maintaining a rotary laser level is crucial for ensuring accurate measurements in construction and surveying projects. By following the steps outlined in this guide, you can confidently verify the calibration of your rotary laser level and address any issues that arise. Regular testing, combined with proper care and maintenance, will extend the life of your rotary laser level and keep it operating at peak performance. Remember, while DIY testing is valuable, it's also important to have your laser level professionally calibrated periodically, especially for high-precision work. By staying proactive with testing and maintenance, you'll always have a dependable tool ready for your leveling needs.
It's recommended to test your rotary laser level before each major project or at least once a month if used regularly. More frequent testing may be necessary if the tool has been subjected to rough handling or extreme conditions.
Yes, extreme temperatures can affect the accuracy of laser levels. Most are designed to operate optimally between 14°F and 113°F (-10°C to 45°C). Always allow your laser level to acclimate to the working temperature before use and testing.
If your laser level fails the accuracy test, first try repeating the test to ensure it wasn't due to user error or environmental factors. If it consistently fails, consult the user manual for calibration instructions. If self-calibration isn't possible or doesn't resolve the issue, seek professional calibration services.
The color of the laser beam doesn't affect accuracy. Green lasers are often perceived as brighter and more visible to the human eye, especially in bright conditions, but this doesn't impact their precision. Both red and green lasers can be equally accurate when properly calibrated.
Yes, you can test your rotary laser level outdoors, especially for long-range accuracy checks. However, ensure you choose a calm day with minimal wind and stable ground conditions. For precise indoor testing, use the wall-to-wall method described in this guide.
