Shaping sheet metal with hand tools is a traditional yet versatile technique used in various industries, from automotive repair to crafting decorative items. This method allows for precision and control, making it ideal for small-scale projects or when power tools are not available. In this article, we will explore the essential tools, techniques, and steps involved in shaping sheet metal using hand tools.
Hand tools are essential for metal fabrication, offering flexibility and precision. Common tools include hammers, mallets, dollies, and shears. Each tool serves a specific purpose: hammers and mallets are used for shaping and forming, dollies help in smoothing and curving, and shears are used for cutting.
1. Ball Peen Hammer: This is a versatile tool used for shaping and forming metal. The ball end is ideal for creating smooth curves, while the peen end is used for flattening and shaping edges.
2. Dolly: A dolly is a small metal tool with different curved surfaces. It is used to shape metal into various curves and can act as a miniature anvil.

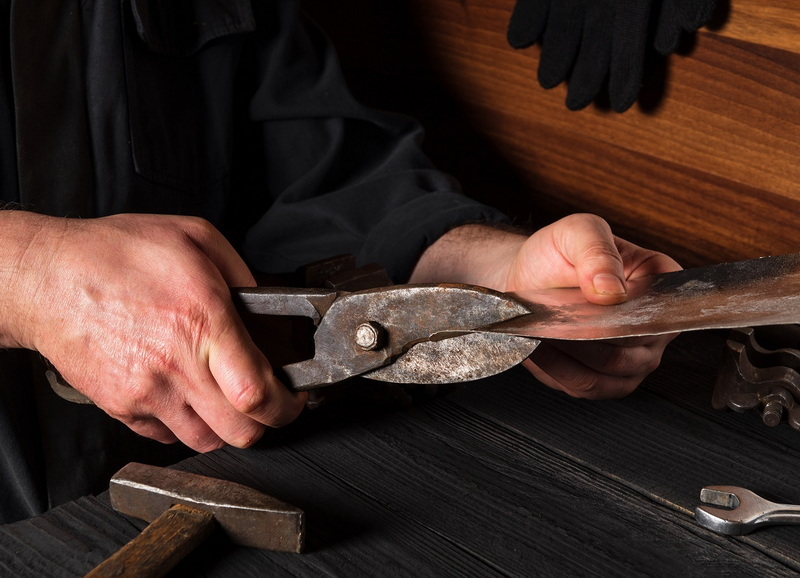

3. Shears: These are used to cut sheet metal. There are various types, including tin snips and throatless shears, each suitable for different thicknesses and shapes of metal.
4. Sandbag: A sandbag is often used as a support when shaping metal. It allows the hammer to strike the metal without causing it to deform unevenly.
5. Mallet: A mallet is used for shaping and forming without leaving marks on the metal surface. It is particularly useful for delicate work.

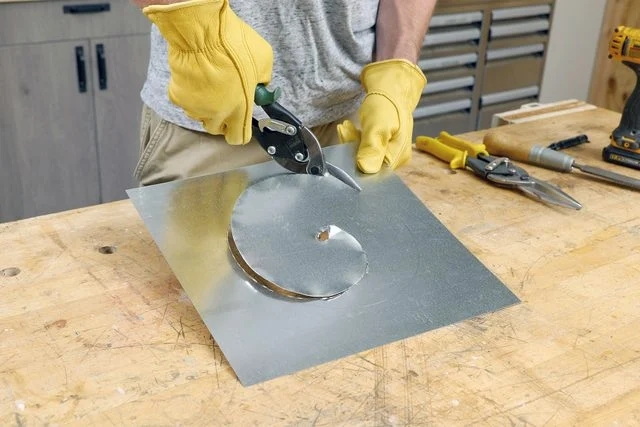

Before shaping, the desired shape must be marked on the sheet metal. Use a Sharpie or similar marker to draw the outline. Cutting can be done using tin snips or a hacksaw, depending on the thickness and precision required.
This technique involves using a ball peen hammer to shape metal over a wooden block. The wood acts as a mold, allowing the metal to take on the desired curve.
1. Prepare the Wood: Use a softwood like pine. Create a concave dent in the wood by hitting it with the ball end of the hammer.
2. Shape the Metal: Place the metal over the dent and hammer it gently with the ball end. Move the metal around to achieve a smooth curve.
A dolly is used to smooth and curve metal. It acts as a support, allowing the hammer to shape the metal without causing it to buckle.
1. Place the Metal on the Dolly: Position the metal over the curved surface of the dolly.
2. Hammer the Metal: Use a hammer to gently tap the metal, smoothing it over the dolly's curve.
- Stretching: This involves using an English wheel or a dolly and hammer to stretch the metal. It is useful for creating smooth, curved surfaces.
- Shrinking: This technique involves heating an overstretched area and allowing it to cool, causing the metal to shrink back into place.
To form corners and edges, use a combination of hammering and bending techniques. A metal forming stake can be helpful for creating sharp corners.
When working with hand tools and sheet metal, safety is crucial:
- Safety Glasses: Protect your eyes from flying metal shards.
- Leather Gloves: Prevent cuts from sharp edges.
- Ear Protection: Use earplugs to protect your hearing from the hammering noise.
For those new to metal shaping, here are some tips to keep in mind:
- Start with Thin Metal: Begin with thinner sheet metal to get a feel for the tools and techniques.
- Practice on Scrap Metal: Use scrap metal to practice different techniques before working on your project.
- Use the Right Tool for the Job: Familiarize yourself with each tool's purpose to avoid damaging the metal or the tool.
1. Over-Hammering: Avoid hitting the metal too hard, as this can cause it to buckle or deform unevenly.
2. Incorrect Tool Use: Using the wrong tool for a task can lead to poor results or damage to the metal.
3. Insufficient Support: Always use a dolly or sandbag to support the metal during shaping.
For more complex projects, consider learning advanced techniques such as:
- Metal Welding: This allows you to join multiple pieces of metal together.
- Metal Finishing: Techniques like polishing and buffing can enhance the appearance of your finished project.
Shaping sheet metal with hand tools requires patience, skill, and the right equipment. By mastering these techniques, you can create intricate and precise shapes for various applications. Whether you're a professional fabricator or a hobbyist, understanding how to use hand tools effectively can enhance your projects and provide a sense of accomplishment.
The most common hand tools include ball peen hammers, dollies, shears (such as tin snips), and mallets. Each tool serves a specific purpose in cutting, shaping, and smoothing the metal.
To prevent buckling, use a dolly or a sandbag as a support. These tools help distribute the force evenly, allowing the metal to take on the desired shape without deforming.
Always wear safety glasses to protect your eyes, leather gloves to prevent cuts, and ear protection to safeguard your hearing from the hammering noise.
While it's possible to shape thick sheet metal with hand tools, it can be challenging and time-consuming. Thicker metals may require more force and specialized tools, such as heavier hammers or mechanical stretchers.
Use sandpaper to smooth out rough edges. Start with coarse grit and gradually move to finer grits for a smoother finish.
