The Cen Tech Rotary Laser Level Kit is an invaluable tool for ensuring precise alignment in various construction and DIY projects. Whether you're hanging shelves, installing cabinets, or leveling a floor, this versatile instrument can significantly improve your accuracy and efficiency. In this comprehensive guide, we'll walk you through the process of setting up and using the Cen Tech Rotary Laser Level Kit to achieve perfect alignment every time.
Before diving into the setup process, it's essential to familiarize yourself with the components of the Cen Tech Rotary Laser Level Kit. This kit typically includes:
1. The rotary laser level unit
2. A tripod or mounting base
3. A laser receiver
4. Batteries
5. A carrying case
The rotary laser level emits a 360-degree laser beam that creates a level plane around the room. This beam can be used as a reference point for various alignment tasks.
Begin by selecting an appropriate location for your Cen Tech Rotary Laser Level Kit. Ideally, place it on a stable surface or use the included tripod for better stability and adjustability[1].
Insert the batteries into the rotary laser level unit. Ensure they are correctly oriented according to the polarity indicators[7].

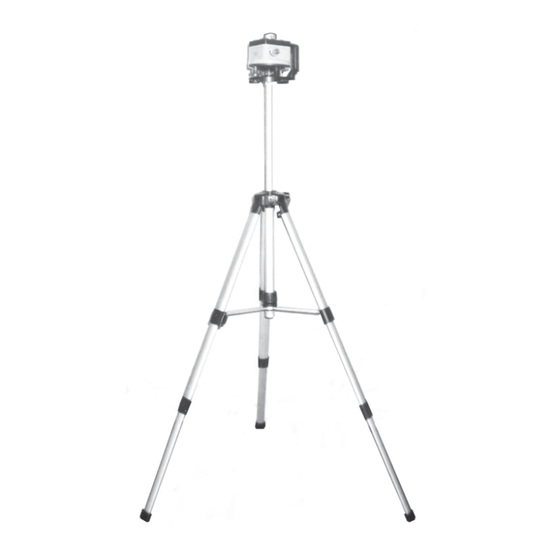

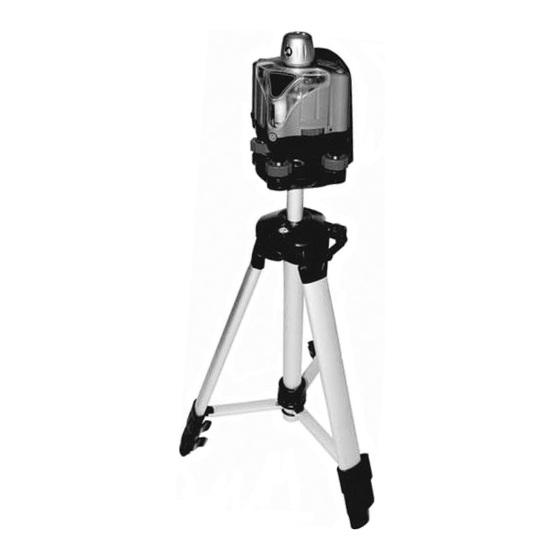

If using a tripod, securely attach the laser level to it. Make sure it's firmly connected to prevent any unwanted movement during operation[1].
Locate the power button on your Cen Tech Rotary Laser Level and switch it on. You should see the laser beam begin to project[7].
Many modern rotary laser levels, including some Cen Tech models, have a self-leveling feature. Give the unit a minute or two to automatically adjust and find its level[1].
If your model doesn't have self-leveling or you need to make fine adjustments:
a. Locate the bubble vials on the laser level unit.
b. Adjust the leveling screws until the bubbles in both vials are centered between the black lines[1].
Most Cen Tech Rotary Laser Level Kits allow you to adjust the rotation speed of the laser beam. Choose a speed that suits your project needs[1].
For precise alignment:
a. Project the laser beam onto two opposing walls.
b. Mark the points where the beam hits each wall.
c. Rotate the laser level 180 degrees and compare the new beam positions with your original marks.
d. If there's a discrepancy, adjust the laser level until the beam hits the same spots in both orientations[1].
For outdoor use or in bright conditions where the laser beam might be hard to see:
a. Turn on the laser receiver.
b. Move the receiver up and down until it detects the laser beam.
c. Use the indicators on the receiver to find the exact level[7].
1. Regular Calibration: Periodically check and recalibrate your Cen Tech Rotary Laser Level Kit to ensure continued accuracy[1].
2. Battery Management: Always have spare batteries on hand. Low battery power can affect the laser's performance[7].
3. Clean with Care: Keep the laser emission window clean for the best results. Use a soft, dry cloth to gently wipe away any dust or debris[7].
4. Proper Storage: When not in use, store your Cen Tech Rotary Laser Level Kit in its carrying case to protect it from damage and dust[7].
While primarily used for horizontal leveling, many Cen Tech Rotary Laser Level Kits can also be used for vertical alignment:
1. Place the laser level on its side, ensuring it's stable.
2. Turn on the unit and allow it to self-level (if applicable).
3. The laser will now project a vertical plane, perfect for tasks like aligning wall tiles or checking door frames for plumbness[1].
Some projects require intentionally sloped surfaces. Advanced Cen Tech Rotary Laser Level Kits often include a manual slope mode:
1. Switch the laser level to manual mode.
2. Use the slope adjustments (often labeled as X-axis and Y-axis) to create the desired angle.
3. Lock in the settings once you've achieved the correct slope[1].
If you're having trouble seeing the laser beam:
1. Check if you're using the laser level in bright conditions. Consider using the laser receiver or working in a dimmer environment.
2. Ensure the rotation speed isn't set too high, which can make the beam appear fainter.
3. Verify that the laser emission window is clean and unobstructed[5].
If you suspect your Cen Tech Rotary Laser Level is providing inaccurate readings:
1. Double-check that the unit is properly leveled.
2. Ensure the laser level is securely mounted and not subject to vibrations.
3. Perform a calibration check as outlined in the user manual[5].
While using the Cen Tech Rotary Laser Level Kit, always prioritize safety:
1. Eye Protection: Never look directly into the laser beam, as it can cause eye damage. Always wear appropriate laser safety glasses when necessary[2].
2. Proper Setup: Ensure the laser level is securely mounted to prevent accidental falls or damage to the unit[1].
3. Environmental Awareness: Be mindful of reflective surfaces in your work area that could unexpectedly redirect the laser beam[2].
As you become more comfortable with your Cen Tech Rotary Laser Level Kit, consider exploring more advanced applications:
1. Multi-room Leveling: Use the laser receiver to extend the effective range of your laser level, allowing you to maintain consistent levels across multiple rooms or large outdoor spaces.
2. Ceiling Installation: Utilize the vertical beam function to assist in installing dropped ceilings or aligning light fixtures.
3. Landscaping: Apply your laser level skills to outdoor projects like grading land for proper drainage or setting up perfectly level decking.
To ensure the longevity and accuracy of your Cen Tech Rotary Laser Level Kit:
1. Regular Cleaning: Gently clean the laser emission window and other components with a soft, dry cloth after each use.
2. Calibration Checks: Perform periodic calibration checks as outlined in your user manual to maintain accuracy.
3. Proper Storage: Always store the kit in its protective case when not in use, keeping it away from extreme temperatures and humidity.
4. Battery Care: Remove batteries if storing the unit for an extended period to prevent potential damage from battery leakage.
The Cen Tech Rotary Laser Level Kit is a powerful tool that, when used correctly, can significantly enhance the precision and efficiency of your projects. By following this comprehensive guide, you'll be well-equipped to set up and utilize your laser level for perfect alignment in a wide range of applications. Remember to prioritize safety, maintain your equipment, and practice regularly to fully harness the capabilities of this versatile instrument.
The Cen Tech Rotary Laser Level Kit typically offers accuracy within ±1/4 inch at 100 feet. However, it's essential to regularly calibrate the unit to maintain this level of precision.
Yes, the Cen Tech Rotary Laser Level Kit can be used outdoors. In bright conditions, you may need to use the included laser receiver to detect the beam more easily.
It's recommended to check the calibration of your Cen Tech Rotary Laser Level before each major project or at least once a month if used frequently. Follow the calibration instructions in your user manual for best results.
The range can vary depending on the specific model and environmental conditions. Typically, these units can project a visible beam up to 100-200 feet in ideal conditions, and even further when used with the laser receiver.
Most Cen Tech Rotary Laser Level Kits are compatible with rechargeable batteries. However, always check your specific model's user manual to ensure compatibility and proper usage.
