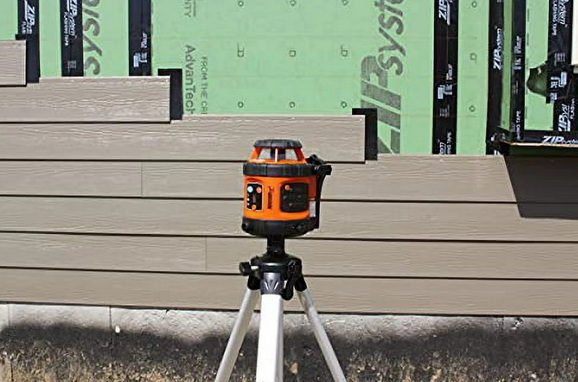

The Acculine Pro Rotary Laser Level is a powerful tool designed to enhance precision and efficiency in various construction and layout tasks. This article will guide you through setting up and using this device effectively, ensuring you achieve the best results in your projects.
The Acculine Pro Rotary Laser Level is equipped with advanced features such as automatic leveling, slope adjustment, and a robust design suitable for both indoor and outdoor applications. Its ability to emit a rotating laser beam provides a 360-degree reference line, making it ideal for tasks like leveling floors, aligning walls, and setting foundations.
- Automatic Leveling: Quickly adjusts to ensure the laser beam is perfectly level.
- Slope Adjustment: Allows for precise inclination adjustments in both X and Y axes.
- Rotating Laser Beam: Provides a continuous reference line for comprehensive coverage.
- Remote Control: Offers convenience by allowing adjustments from a distance.
1. Unpack the Device: Carefully remove the Acculine Pro Rotary Laser Level from its packaging and ensure all components are included (laser unit, remote control, tripod, and batteries).
2. Install Batteries: Insert the batteries into both the laser unit and the remote control. Ensure they are securely placed to avoid any disruptions during operation.
3. Assemble the Tripod: Attach the laser unit to the tripod, making sure it is securely fastened. This will provide stability and prevent any movement during use.
1. Choose a Location: Select a central location for the laser to ensure optimal coverage of your work area. Ideally, this should be on a stable surface or tripod.
2. Level the Tripod: Adjust the tripod legs to level the laser unit. This is crucial for accurate readings.
1. Power On: Press the power button on the remote control or the laser unit itself to activate the device.
2. Enter Auto-Level Mode: The laser will automatically adjust to level itself. Wait for the indicator lights to stabilize, confirming it has reached level status.
1. Select Axis: Use the remote control to select either the X or Y axis for slope adjustment by pressing the X/Y button.
2. Adjust Slope: Press the up/down arrow keys on the remote to adjust the slope angle. A single press provides fine tuning, while continuous pressing allows for quicker adjustments.
1. Attach Detector: Mount the laser detector on a staff or rod and position it within the laser beam's path.
2. Read Measurements: The detector will indicate when it is aligned with the laser beam, providing precise measurements.
The Acculine Pro Rotary Laser Level can also be used for plumb and square alignments. By setting the laser to emit a vertical beam, you can ensure that walls are perfectly plumb. For square alignments, use the laser's horizontal beam to create a reference line and then rotate it 90 degrees to check for squareness.
In outdoor conditions, visibility of the laser beam can be limited. Using a laser receiver can enhance visibility and accuracy. Position the receiver within the beam's path, and it will indicate when it is aligned, allowing for precise measurements even in bright sunlight.
- Regular Calibration: Ensure the laser is calibrated regularly to maintain accuracy.
- Clean the Lens: Keep the laser lens clean to prevent beam distortion.
- Use in Stable Conditions: Avoid using the laser in windy or unstable environments.
- Protect from Direct Sunlight: In outdoor settings, use a sunshade or canopy to protect the laser from direct sunlight, which can affect its performance.
- Beam Misalignment: Check if the tripod is stable and ensure proper leveling.
- Failure to Level: Verify that the batteries are correctly installed and not depleted.
- Laser Beam Distortion: Clean the lens and ensure it is free from debris.
The Acculine Pro Rotary Laser Level is a versatile tool that simplifies layout and leveling tasks with its advanced features and ease of use. By following the setup and usage guidelines outlined above, you can maximize its potential and achieve precise results in your projects.
Calibration involves aligning the laser beam with a reference point. Use the remote control to adjust the beam until it matches your reference line. Confirm the calibration by pressing the 'ENT' button on the remote.
The range typically varies depending on the model, but most rotary laser levels can cover distances up to 1,000 feet with the aid of a detector.
To adjust the slope, use the remote control to select the axis (X or Y) and then press the up/down arrow keys to adjust the angle.
Yes, the Acculine Pro Rotary Laser Level is suitable for outdoor use. However, ensure it is protected from direct sunlight and extreme weather conditions.
Common issues include beam misalignment or failure to level. Check the tripod stability, ensure proper battery installation, and refer to the user manual for detailed troubleshooting steps.
