Introduction

A vertical rotary laser level is a versatile tool used in various construction projects to establish vertical planes. It projects a 360-degree beam around a room, allowing for precise alignment and leveling. This article will guide you through setting up and calibrating a vertical rotary laser level to ensure accurate results.

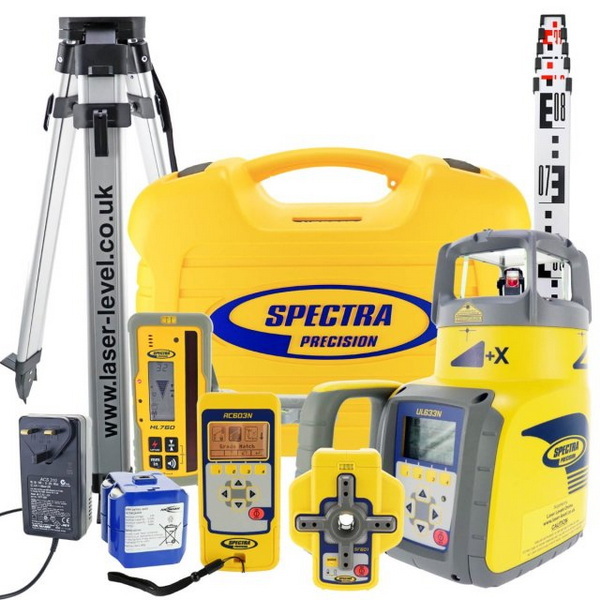

vertical rotary laser level

Importance of Calibration

Calibration is crucial for maintaining the accuracy of your laser level. Factors like drops, vibrations, or temperature changes can affect its calibration, leading to inaccurate readings. Regular calibration ensures that your projects are aligned correctly, saving time and resources.

Setting Up a Vertical Rotary Laser Level

Step 1: Choose a Stable Surface

1. Select a Level Surface: Place the laser on a stable, level surface or tripod. Ensure the tripod's head is level using a carpenter's level.

2. Secure the Laser: Mount the laser level securely on the tripod. Use the tripod's legs to adjust and level the surface if necessary.

Step 2: Power On and Self-Level

1. Turn On the Laser: If your laser is self-leveling, turn it on and allow it to level itself. This process usually involves a pendulum system or electronic motors.

2. Adjust Rotation Speed: Select the appropriate rotation speed based on your project's requirements. Higher RPMs are suitable for longer distances, while lower RPMs are better for shorter ranges.

Step 3: Use a Detector

1. Laser Detector: For outdoor applications or when the beam is not visible, use a laser detector to locate the beam. This is especially useful in bright conditions.

Calibrating a Vertical Rotary Laser Level

Calibration ensures that your laser level provides accurate readings. Here's how to calibrate it:

Step 1: Set Up Equipment

1. Place the Tripod: Position the tripod at least 100 feet from a wall or pole. Level the tripod's head carefully using a carpenter's level.

2. Secure the Laser: Mount the laser level on the tripod and ensure it is properly secured.

Step 2: Mark Reference Points

1. Turn On the Laser: Direct the laser towards a target wall or pole. Turn it on and use a detector to mark a point on the wall, labeled as +X.

2. Rotate and Mark Again: Rotate the laser 180° and repeat the process, marking another point labeled as –X.

Step 3: Determine True Level

1. Find the Center Point: The center point between +X and –X marks the true level. This should be within the specified accuracy of your laser level.

Step 4: Adjust the Laser

1. Adjust the Laser: If the laser beam does not align with the true level, adjust the laser using the adjuster knob until it matches.

Advanced Techniques for Using a Vertical Rotary Laser Level

Using a Laser Level for Grading

1. Slope Measurement: Use the laser to measure slopes by adjusting the beam's angle. This is useful for landscaping and excavation projects.

2. Drainage Planning: Ensure proper drainage by aligning the laser beam with the desired slope for water runoff.

Integrating with Other Tools

1. Combining with Total Stations: Use a total station to measure distances and angles while the laser provides a reference plane for leveling.

2. Using with GPS Systems: In large-scale projects, integrate GPS systems to enhance positioning accuracy and efficiency.

Safety Precautions

- Avoid Direct Eye Exposure: Never look directly into the laser beam as it can cause eye damage.

- Use Barricades: Set up barricades or warning signs when using the laser in public areas.

Tips for Maintenance

1. Regular Cleaning: Clean the laser lens and detector regularly to ensure optimal performance.

2. Battery Maintenance: Check and replace batteries as needed to avoid power loss during critical operations.

Conclusion

Setting up and calibrating a vertical rotary laser level is crucial for achieving accurate results in construction projects. By following these steps and maintaining regular calibration, you can ensure that your projects are aligned correctly and efficiently.

topcon rotary laser level for sale

Frequently Asked Questions

1. What is a Vertical Rotary Laser Level Used For?

A vertical rotary laser level is used to establish vertical planes in construction projects. It projects a 360-degree beam, allowing for precise alignment and leveling in both indoor and outdoor applications.

2. How Often Should I Calibrate My Laser Level?

Calibration should be performed regularly, especially after the laser has been dropped or exposed to significant temperature changes. Follow the manufacturer's instructions for calibration procedures.

3. What is the Difference Between Manual and Electronic Self-Leveling?

- Manual Leveling: Requires adjusting the laser using bubble vials. It is less accurate and more time-consuming but less expensive.

- Electronic Self-Leveling: Uses a pendulum or motors to automatically level the laser, offering higher accuracy and faster setup.

4. Can I Use a Vertical Rotary Laser Level Outdoors?

Yes, vertical rotary laser levels can be used outdoors with a laser detector. This setup is ideal for projects requiring long-range leveling, such as excavation or building construction.

5. How Do I Choose the Right Rotation Speed for My Project?

Select a higher RPM for longer distances to ensure the beam is visible and detectable by the receiver. Lower RPMs are suitable for shorter ranges and indoor applications.
