Rotary laser levels are essential tools in the construction industry, providing accurate and efficient leveling solutions for various projects. Among these, manual leveling rotary lasers require more skill and patience to set up but offer flexibility in setting slopes and grades. This article will guide you through the process of setting up a manual leveling rotary laser for construction purposes.
Rotary laser levels project a rotating beam of light to create a 360-degree level reference plane. This allows for precise alignment and leveling across large areas, making them indispensable for tasks such as grading, foundation laying, and installing fixtures. Rotary lasers can be categorized into two main types: manual and self-leveling.
Manual leveling rotary lasers require the operator to adjust the device using built-in bubble vials until it is perfectly level. This method demands precision and can be time-consuming, especially over long distances. However, it offers the advantage of setting desired slopes or grades manually, which is beneficial for experienced users working on smaller sites or projects requiring frequent grade adjustments.
Self-leveling rotary lasers, on the other hand, use an internal mechanism to automatically adjust the laser beam to a level position. This feature significantly reduces setup time and ensures high accuracy, making it ideal for larger projects where speed and precision are crucial.
Setting up a manual leveling rotary laser involves several steps to ensure accurate and reliable operation.
1. Select a Flat Surface: Place the rotary laser level on a flat, stable surface. A tripod is highly recommended for optimal stability and flexibility in height adjustment.
2. Positioning: Ensure the laser is positioned in a way that its beam can reach all areas where leveling is required.
1. Use Bubble Vials: Adjust the laser until the bubble vials show the bubbles centered between the black lines. This indicates that the laser is level along both axes.
2. Reference Points: Use reference points on walls or other surfaces to align the laser beam. This helps in ensuring that the beam is parallel to the desired plane.
1. Turn On the Laser: Once aligned, turn on the laser and mark where the beam hits the walls or surfaces.
2. Check Consistency: Move the laser to different positions and verify that the beam remains consistent with your initial marks.

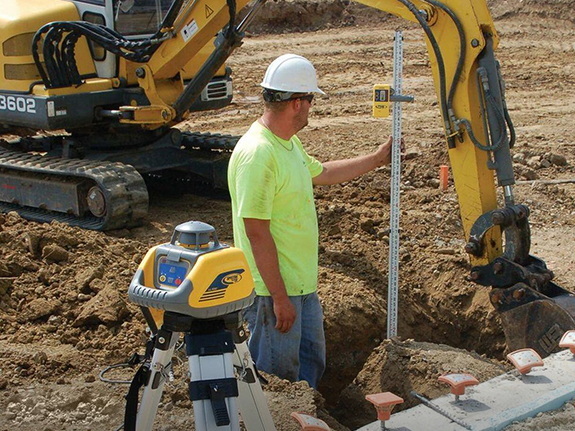

If you need to set a specific slope or grade, adjust the laser accordingly. Use a laser detector or receiver to ensure the beam is at the desired angle relative to your reference plane or slope.
1. Verify Leveling: Double-check that the laser beam is level by rotating the unit 180 degrees and ensuring the beam hits the same mark.
2. Calibration: If necessary, perform a calibration check to ensure the laser's accuracy over distance.
Calibration is crucial to maintain the accuracy of your rotary laser level. Here's how to calibrate it:
Place the rotary laser level on a stable, level surface and ensure it is self-leveled or manually adjusted to level.
Rotate the unit 180 degrees and mark where the horizontal beam hits a wall. Rotate it back and verify that the beam hits the same mark. If not, adjust the calibration screws.
Project the vertical beam onto a wall and verify its verticality using a plumb line. Adjust if necessary.
Project both horizontal and vertical beams onto perpendicular walls. Use a framing square to ensure the beams form a perfect 90-degree angle. Adjust calibration screws if needed.
Verify that the laser remains accurate over longer distances by projecting the beam onto surfaces at varying distances.
When working with rotary laser levels, safety is paramount:
- Avoid Direct Eye Exposure: Never look directly into the laser beam as it can cause eye damage.
- Use Safety Glasses: Wear appropriate laser safety glasses when working near the beam.
- Avoid Reflective Surfaces: Do not point the laser at reflective surfaces to prevent beam reflection.
When selecting a rotary laser level for construction, consider the following factors:
- Working Range: Ensure the laser has a sufficient working range for your project size.
- Accuracy: Choose a model with high accuracy, especially if precision is critical.
- Self-Leveling vs. Manual: Decide whether you need the convenience of self-leveling or the flexibility of manual leveling.
When using rotary laser levels, several common mistakes can reduce their effectiveness:
- Not Calibrating: Always calibrate your laser level before use to ensure accuracy.
- Ignoring Surface Stability: Ensure the surface is stable and level to prevent vibrations affecting the laser's accuracy.
- Using in Direct Sunlight: While rotary lasers can be used outdoors, they may not be visible in daylight. Use a laser detector for accurate leveling.
- Overlooking Battery Life: Ensure your laser and detector have sufficient battery life to complete your tasks.
Modern rotary laser levels often come with advanced features that enhance their functionality:
- Grade Setting: Some models allow you to set specific slopes or grades, which is useful for projects requiring precise inclines.
- Remote Control: Many rotary lasers can be controlled remotely, allowing you to adjust settings without physically accessing the device.
- Vertical Self-Alignment: This feature helps in aligning the laser beam vertically, which is crucial for tasks like installing pipes or ducts.
To maximize the effectiveness of your rotary laser level:
- Regular Maintenance: Regularly clean and maintain your laser level to ensure optimal performance.
- Proper Storage: Store your laser level in a protective case when not in use to prevent damage.
- Training: Ensure that all users are trained in the proper setup and operation of the laser level to avoid errors.
Setting up a manual leveling rotary laser for construction requires attention to detail and patience. By following the steps outlined above, you can ensure accurate and reliable operation of your rotary laser level. Whether you're working on a small DIY project or a large-scale construction site, understanding how to properly set up and calibrate your rotary laser level is crucial for achieving precise leveling and alignment.
Manual rotary lasers require the user to adjust the device to level using bubble vials, offering flexibility in setting slopes. Self-leveling lasers automatically adjust to level, providing quicker setup and higher accuracy.
To ensure accuracy over long distances, perform a calibration check by projecting the beam onto surfaces at varying distances and verifying that it remains level.
Rotary laser levels can be used outdoors, but the beam may not be visible in daylight. Use a laser detector or receiver to capture the beam and provide audible or visual indicators for accurate leveling.
Always avoid direct eye exposure to the laser beam, use safety glasses, and avoid pointing the laser at reflective surfaces to prevent beam reflection.
Calibrate your rotary laser level periodically, especially after extensive use or if you notice any inaccuracies in its operation.
