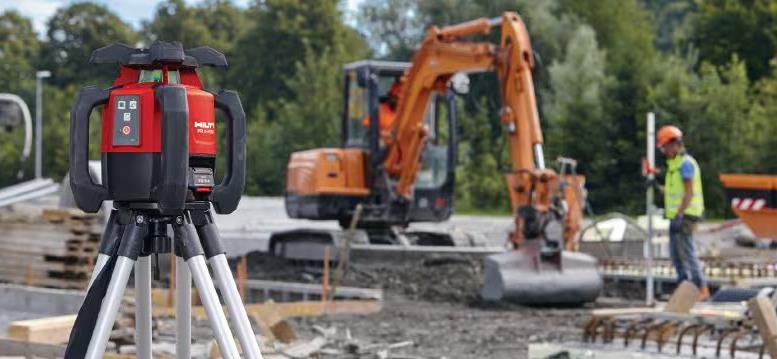

Rotary laser levels are essential tools in construction, surveying, and other industries that require precise leveling and alignment. However, like any complex equipment, they can encounter issues that require repair. This comprehensive guide will walk you through the process of diagnosing and fixing common problems with rotary laser levels, helping you maintain your equipment and avoid costly replacements.

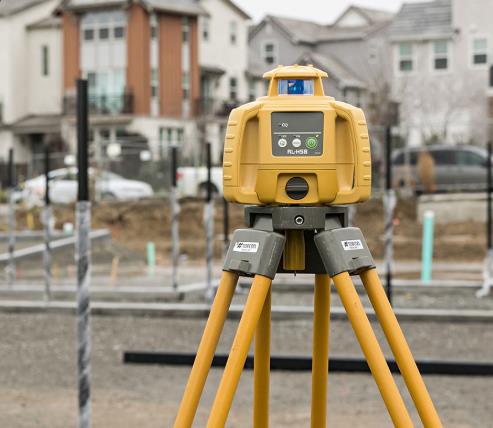

Before diving into repairs, it's crucial to understand how rotary laser levels work. These devices project a laser beam that rotates 360 degrees, creating a level plane of light. This plane can be used as a reference for various construction and surveying tasks.
One of the most frequent issues with rotary laser levels is related to power supply. If your device won't turn on or shuts off unexpectedly, follow these steps:
1. Check the battery charge and connections.
2. Clean the battery contacts with a soft cloth.
3. If using rechargeable batteries, ensure they're properly charged.
4. For alkaline batteries, replace them with fresh ones.
If these steps don't resolve the issue, there might be a problem with the internal power supply circuit. In this case, you may need to open the device and check for loose connections or damaged components.

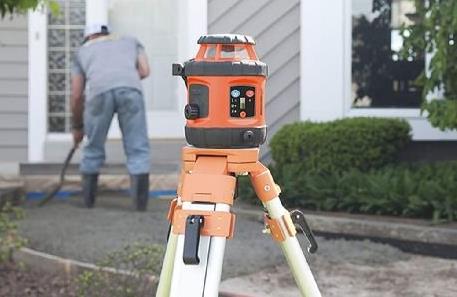

Inaccurate readings are often due to calibration problems. Here's how to check and adjust the calibration:
1. Set up the laser level on a tripod or stable surface.
2. Mark a point on a wall at a known distance (e.g., 50 feet).
3. Rotate the laser 180 degrees and mark another point.
4. Measure the distance between the two points. If it's more than 1/8 inch at 50 feet, calibration is needed.
To calibrate:
1. Locate the calibration screws (usually under rubber plugs).
2. Adjust the screws slowly while checking the laser line position.
3. Repeat the calibration check to ensure accuracy.
If the laser beam is weak or not visible, the laser diode might be failing. Here's what you can do:
1. Clean the laser output window with a soft, lint-free cloth.
2. Check if the laser is in pulse mode (if available) and switch modes.
3. If the problem persists, the diode may need replacement.
Replacing a laser diode is a delicate process and may require professional assistance. If you're comfortable with electronics, follow these steps:
1. Open the laser level housing carefully.
2. Locate the laser diode assembly.
3. Desolder the old diode and replace it with a new one of the same specifications.
4. Reassemble the device and test.
If the laser level doesn't self-level or takes too long to do so, the problem might be with the self-leveling mechanism. Here's how to troubleshoot:
1. Ensure the device is within its self-leveling range (usually ±5 degrees).
2. Check for any physical obstructions in the pendulum mechanism.
3. Clean the pendulum area with compressed air to remove dust.
If these steps don't resolve the issue, the self-leveling mechanism may need professional repair or replacement.
If the laser beam doesn't rotate or rotates unevenly, the rotation motor might be faulty. To address this:
1. Check for any visible obstructions in the rotation mechanism.
2. Clean the rotating prism or mirror with a soft cloth.
3. If the problem persists, the motor may need replacement.
Replacing the rotation motor is a complex task and may require professional assistance. If you're experienced with electronics, you can attempt it by:
1. Opening the laser level housing.
2. Locating the rotation motor.
3. Disconnecting and removing the old motor.
4. Installing the new motor and reconnecting the wires.
5. Reassembling and testing the device.
For more complex issues, you may need to delve deeper into the device's electronics. Here are some advanced repair techniques:
If you've identified a problem with the circuit board, such as a blown component or a loose connection, you can attempt to repair it:
1. Use a multimeter to test for continuity and identify faulty components.
2. Replace any damaged components using a soldering iron and appropriate replacement parts.
3. Check for cold solder joints and reflow them if necessary.
Some issues can be resolved by updating the device's firmware:
1. Check the manufacturer's website for available firmware updates.
2. Follow the instructions provided to update the firmware.
3. If the update process fails, you may need to reflash the firmware using specialized equipment.
For precision issues that can't be resolved through calibration, you may need to adjust the optical alignment:
1. Open the laser level housing.
2. Locate the optical assembly.
3. Carefully adjust the alignment screws while monitoring the laser output.
4. Perform a calibration check after making adjustments.
To reduce the likelihood of issues and extend the life of your rotary laser level, follow these preventive maintenance tips:
1. Regular Cleaning: Keep the device clean, especially the laser output window and rotating prism.
2. Proper Storage: Store the laser level in a dry, dust-free environment when not in use.
3. Battery Care: Remove batteries during long-term storage to prevent corrosion.
4. Calibration Checks: Perform regular calibration checks, especially after transporting the device or if it has been subjected to vibration.
5. Handle with Care: Avoid dropping or subjecting the laser level to strong impacts.
Even with proper maintenance, user errors can lead to inaccurate readings or damage to the device. Here are some common mistakes to avoid:
1. Ignoring Environmental Factors: Temperature changes and vibrations can affect accuracy. Allow the device to acclimate to the environment before use.
2. Exceeding the Self-Leveling Range: Always ensure the device is set up within its specified self-leveling range.
3. Using Incorrect Power Sources: Only use the recommended batteries or power adapters for your specific model.
4. Neglecting Calibration: Regular calibration checks are crucial for maintaining accuracy.
5. Improper Transportation: Use the provided carrying case to protect the device during transport.
When selecting a rotary laser level, consider the following factors to ensure you get a device that meets your needs and is less likely to require frequent repairs:
1. Accuracy: Look for models with high accuracy ratings, typically ±1/16 inch per 100 feet.
2. Range: Consider the maximum range you'll need for your projects.
3. Self-Leveling Capability: Self-leveling models are generally more accurate and easier to use.
4. Durability: Choose models with robust construction and good IP ratings for dust and water resistance.
5. Battery Life: Longer battery life means less downtime and fewer battery replacements.
6. Warranty and Support: A good warranty and reliable customer support can be invaluable if issues arise.
While many issues can be resolved through DIY repairs, some problems are best left to professionals. Consider seeking expert help in the following situations:
1. The device is still under warranty, and DIY repairs might void it.
2. You're uncomfortable working with delicate electronic components.
3. The issue persists after attempting the troubleshooting steps outlined in this guide.
4. The repair requires specialized tools or equipment you don't have access to.
5. The cost of professional repair is less than the cost of a new device.
Rotary laser levels are invaluable tools in many industries, and proper maintenance and repair can significantly extend their lifespan. By understanding common issues and their solutions, you can keep your device in top working condition and minimize downtime. Regular calibration checks, proper care, and prompt attention to any problems will ensure your rotary laser level continues to provide accurate measurements for years to come.
It's recommended to calibrate your rotary laser level at least once a year or after any significant impact or transportation. Some professionals prefer to check calibration before each major project to ensure accuracy.
Always use the type of batteries specified by the manufacturer. Using incorrect batteries can lead to poor performance or damage to the device. If your laser level uses rechargeable batteries, only use the charger provided or recommended by the manufacturer.
First, check if you're using the device within its specified range. If you're working outdoors or in bright conditions, use a laser detector. Clean the laser output window and check if the device has a pulse mode for increased visibility. If the problem persists, the laser diode may need replacement.
While many rotary laser levels have some degree of water resistance, it's best to avoid using them in heavy rain. Check your device's IP rating for water resistance. If you must use it in damp conditions, ensure it's properly protected and dry it thoroughly after use.
If you've attempted the troubleshooting steps in this guide and the issue persists, or if you notice any physical damage to the device, it's time to seek professional repair. Also, if the device is making unusual noises, failing to self-level, or showing significant inaccuracies even after calibration, professional assessment is recommended.
