Dovetail joints are a hallmark of traditional woodworking, renowned for their strength and aesthetic appeal. These joints consist of interlocking tails and pins that provide a robust connection between two pieces of wood, making them ideal for constructing drawers, cabinets, and other furniture pieces. While modern machinery can simplify the process, learning to cut dovetail joints by hand is a fundamental skill for woodworkers seeking to master their craft. In this article, we will explore the tools and techniques required to create beautiful dovetail joints using hand tools.
Dovetail joints are characterized by their distinctive interlocking pattern, where the tails of one piece fit into the pins of another. This design allows for a strong and rigid connection that resists pull-out forces, making it perfect for applications where durability is crucial.
There are several types of dovetail joints, including:
- Through Dovetail: The most common type, where both tails and pins are visible from both sides.
- Half-Blind Dovetail: Only the tails are visible from one side, while the pins are hidden.
- Sliding Dovetail: Used for connecting shelves to side walls or between shelves in drawer dividers.
To begin, you will need a few essential tools:
1. Marking Gauge: Used to mark consistent lines across the wood.
2. Saws: A backsaw or a Japanese dozuki saw with rip teeth are ideal for cutting dovetail joints.
3. Chisels: A set of sharp chisels in various sizes for removing waste wood.
4. Marking Knife: For marking precise lines on the wood.
5. Dividers: Help in marking out the dovetail pattern.
6. Mallet: For tapping chisels and assembling the joint.
- Dovetail Plane: Optional, but useful for creating precise tails.
- Coping Saw or Fret Saw: For removing waste from the bottom of the dovetail cuts.
Ensure your wood is square and free of defects. Decide on the design and layout of your dovetail joint. It's crucial to select wood that is straight-grained and free from knots to ensure clean cuts and a strong joint.
Use a marking gauge to mark the baseline for the tails. Set the gauge to the thickness of the wood and mark along the entire edge where the dovetails will be cut. Ensure the gauge is set accurately to maintain consistency across all cuts.

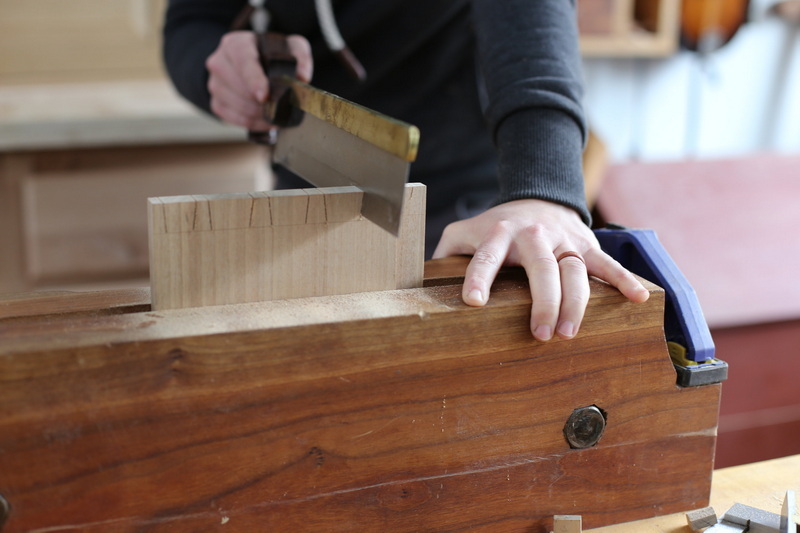

Place the board in a vise and use a backsaw to cut along the marked lines. Cut from the side facing you to avoid splintering the wood. Use a gentle, consistent motion to maintain straight cuts.
Use chisels to remove the waste wood between the tails. Start with a wide chisel for bulk removal and finish with a smaller one for precision. Always chisel away from the line to avoid damaging the joint.
Use the tails as a template to mark the pins on the other board. Ensure the marks are precise and consistent. This step requires patience and attention to detail to ensure a snug fit.
Cut the pins using a backsaw, following the same technique as for the tails. It's essential to maintain the same angle and precision as the tails for a smooth fit.
Carefully tap the tails into the pins using a mallet. Ensure the joint is snug but not forced. If the fit is too tight, use a small chisel to slightly widen the pins.
- Precision is Key: Use sharp tools and take your time to ensure accurate cuts.
- Practice Makes Perfect: Don't be discouraged if your first attempts aren't flawless; practice will improve your skills.
- Use Quality Tools: Invest in good-quality saws and chisels for better results.
- Maintain a Clean Workspace: Keep your workspace organized to avoid mistakes and ensure all tools are within reach.
If your cuts are uneven, check your saw for proper alignment and ensure you're using the correct technique. Practice cutting on scrap wood to develop muscle memory.
If the joint feels loose, check for gaps in the pins or tails. Use a small chisel to slightly widen the pins or tails to achieve a snug fit.
To avoid splintering, always cut from the side facing you and use a sharp saw. Apply gentle pressure to prevent the saw from binding.
A dovetail plane can help refine the tails and ensure they are perfectly square. This tool is especially useful for creating precise joints in hardwoods.
For a decorative touch, you can create unevenly spaced or angled dovetail joints. This adds visual interest and can be used to create unique furniture designs.
Cutting dovetail joints by hand is a rewarding skill that enhances any woodworking project. With the right tools and techniques, you can create strong and beautiful joints that add value to your work. Whether you're a beginner or an experienced woodworker, mastering hand-cut dovetail joints will elevate your craftsmanship and provide a sense of accomplishment.
The essential tools include a marking gauge, saws (backsaw or Japanese dozuki), chisels, a marking knife, dividers, and a mallet. Additional tools like a dovetail plane and coping saw can be useful but are not necessary.
Use a marking gauge to mark consistent lines, and ensure your tools are sharp. Use a fine-tipped pencil to darken the gauge lines for better visibility.
A backsaw or a Japanese dozuki saw with rip teeth is ideal for cutting dovetail joints. Avoid using crosscut saws as they can slow down the process and produce uneven cuts.
Use chisels to remove waste, starting with a wide chisel for bulk removal and finishing with a smaller one for precision. A coping saw can also be used to remove waste from the bottom of the cuts.
Common mistakes include using dull tools, not marking lines accurately, and applying too much force when assembling the joint. Always use sharp tools, double-check your markings, and tap the joint together gently.
