How To Make A Rotary Laser Level?

Views: 222 Author: Loretta Publish Time: 2024-12-24 Origin: Site

Inquire

Content Menu

● Understanding Rotary Laser Levels

● Materials Needed

● Step-by-Step Construction

>> Step 1: Designing the Chassis

>> Step 2: Mounting the Laser Diode

>> Step 3: Installing the Rotating Mirror

>> Step 4: Wiring the Electronics

>> Step 5: Testing the Setup

● Using Your Rotary Laser Level

● Tips for Effective Use

● Conclusion

● FAQ

>> 1. What is the accuracy of a rotary laser level?

>> 2. Can I use my rotary laser level outdoors?

>> 3. How do I calibrate my rotary laser level?

>> 4. What types of projects can benefit from using a rotary laser level?

>> 5. Is it difficult to make my own rotary laser level?

● Citations:

Creating a rotary laser level can be an exciting project for DIY enthusiasts and professionals alike. This guide will walk you through the process of making a rotary laser level from scratch, detailing the materials needed, construction steps, and tips for effective use. By the end of this article, you will have a comprehensive understanding of how to create your own rotary laser level.

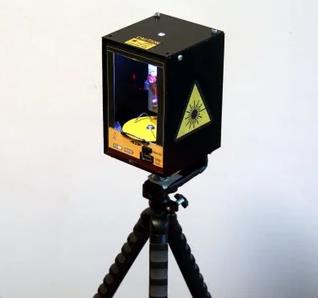

How To Make A Rotary Laser Level 1

Understanding Rotary Laser Levels

What is a Rotary Laser Level?

A rotary laser level is a tool used in construction and surveying to project a level line around a room or worksite. It emits a rotating laser beam that creates a level reference point, which can be used for various applications such as leveling foundations, installing ceilings, or aligning structures.

Types of Rotary Laser Levels

1. Manual Leveling: Requires the user to adjust the device manually using bubble vials.

2. Self-Leveling: Utilizes a pendulum mechanism to automatically find level.

3. Electronic Self-Leveling: Employs servo motors for precise leveling, often with advanced features like remote control.

Materials Needed

To build your rotary laser level, you will need the following materials:

- Laser Diode: A compact laser module that emits a visible beam.

- Rotating Mirror: To reflect the laser beam 360 degrees.

- Chassis: A sturdy base to hold all components (can be made from metal or high-density plastic).

- Tripod or Mounting Bracket: For stability and height adjustment.

- Power Source: Batteries or a rechargeable power supply.

- Control Circuitry: To operate the laser and manage power (can include switches and relays).

- Miscellaneous Tools: Soldering iron, drill, screws, wire, etc.

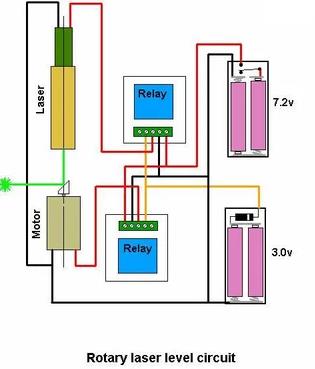

How To Make A Rotary Laser Level

Step-by-Step Construction

Step 1: Designing the Chassis

Start by designing your chassis. The chassis should be robust enough to hold all components securely.

- Use materials like aluminum or heavy-duty plastic for durability.

- Ensure there are mounting points for the laser diode and rotating mirror.

Step 2: Mounting the Laser Diode

- Securely mount the laser diode at the top of your chassis.

- Ensure that it is aligned properly to project straight downwards.

Step 3: Installing the Rotating Mirror

- Attach a small motor to rotate the mirror at a 45-degree angle to reflect the laser beam horizontally.

- Ensure that the mirror is securely fixed and can rotate freely without obstruction.

Step 4: Wiring the Electronics

- Connect the power source to the laser diode and motor.

- Use appropriate wiring techniques to ensure safety and functionality.

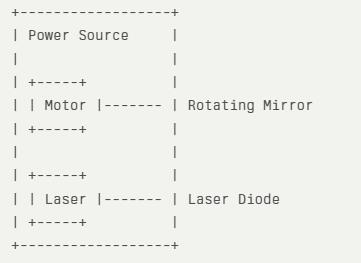

Wiring the Electronics

Step 5: Testing the Setup

Once everything is assembled:

1. Power on your device.

2. Check if the laser beam is visible and rotating correctly.

3. Adjust any misalignments in the setup.

Using Your Rotary Laser Level

Now that you have constructed your rotary laser level, here's how to use it effectively:

1. Set Up: Place your rotary laser level on a stable surface or tripod at your desired height.

2. Power On: Turn on the device and allow it to self-level if applicable.

3. Marking Levels:

- Use a receiver or detector if working outdoors where visibility may be an issue.

- Make marks on walls or surfaces where you need level references.

4. Adjust as Necessary: If you need specific elevations, adjust your tripod height accordingly.

Tips for Effective Use

- Ensure your rotary laser level is calibrated before each use.

- Keep it away from direct sunlight when working outdoors; use a receiver for better visibility.

- Regularly check battery levels if using battery-operated devices.

Conclusion

Building your own rotary laser level can save costs while providing you with an essential tool for various projects. With careful assembly and proper usage techniques, you can achieve accurate leveling results that will enhance your construction or DIY endeavors.

Calibrate A Rotary Laser Level

FAQ

1. What is the accuracy of a rotary laser level?

The accuracy typically ranges from ±1/8 inch at 100 feet for manual levels to ±1/16 inch at 100 feet for electronic self-leveling models.

2. Can I use my rotary laser level outdoors?

Yes, but ensure you have a receiver as the laser may not be visible in bright sunlight.

3. How do I calibrate my rotary laser level?

To calibrate, set it up at least 100 feet away from a wall, mark where it hits at different angles, and adjust until all marks align within specified accuracy limits.

4. What types of projects can benefit from using a rotary laser level?

Projects such as installing cabinets, leveling floors, framing walls, and grading land can greatly benefit from using a rotary laser level.

5. Is it difficult to make my own rotary laser level?

With basic electronics knowledge and careful assembly following this guide, making your own rotary laser level can be quite manageable for DIY enthusiasts.
