Making a guitar neck with hand tools is a challenging yet rewarding process that requires patience, skill, and attention to detail. This article will guide you through the steps involved in crafting a guitar neck using traditional hand tools, highlighting the techniques and tools necessary for each stage.
Guitar necks are typically made from hardwoods like mahogany or maple, chosen for their stability and tonal qualities. The process involves several key steps: preparing the neck blank, installing the truss rod, shaping the neck, and attaching the fingerboard.

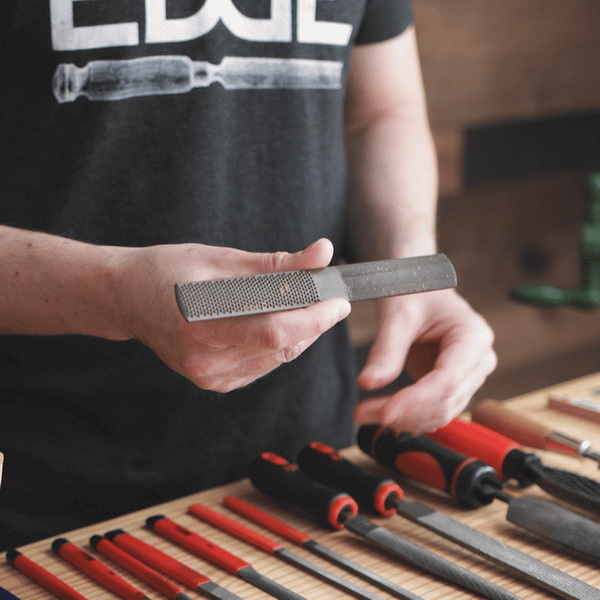

- Rasps: For shaping and smoothing the neck.
- Spokeshave: Ideal for removing wood and creating smooth surfaces.
- Chisels: Useful for precise cuts and adjustments.
- Sandpaper: Essential for final smoothing.
- Draw Knife: Optional for rough shaping.
- Hand Plane: Can be used for flattening surfaces.
- Files: Such as Razor Files or Half-Round Files for fine adjustments[4].
When selecting wood for your guitar neck, consider the tonal qualities and stability of the material. Mahogany and maple are popular choices due to their durability and sound-enhancing properties. It's crucial to ensure the wood is properly dried and planed before use[2].
1. Cutting the Blank: Use a bandsaw to cut the neck wood into a rough shape. Ensure the grain runs vertically (quartersawn) for stability.
2. Flattening the Blank: Use a hand plane to flatten both sides of the neck blank.
1. Routing the Truss Rod Channel: Use a router to create a channel for the truss rod. This is crucial for maintaining neck stability under string tension.
2. Installing the Truss Rod: Glue the truss rod into the channel using epoxy.
1. Rough Shaping: Use a draw knife or spokeshave to remove excess wood and begin shaping the neck.
2. Fine Shaping: Switch to rasps for finer adjustments and smoothing.
3. Final Smoothing: Use sandpaper to achieve a smooth finish.
4. Using Files for Precision: For precise adjustments, especially around the heel and fretboard transition, use files like Razor Files or Half-Round Files[4].
1. Preparing the Fingerboard: Radius the fingerboard using a router jig or by hand.
2. Gluing the Fingerboard: Apply wood glue and clamp the fingerboard onto the neck.
1. Drilling Tuner Holes: Use a hand drill or drill press to create holes for the tuning machines.
2. Shaping the Headstock: Use rasps and scrapers to smooth the headstock transitions.
3. Determining Headstock Thickness: Ensure the headstock is thick enough to support the tuning machines but thin enough to maintain aesthetic appeal[5].
- Using Templates: While not necessary, templates can help achieve consistent shapes. You can create your own templates or use pre-made ones from suppliers like StewMac[2].
- Working with Different Woods: Maple and mahogany are common, but other hardwoods can be used. Each wood type may require adjustments in tooling and technique.
- Safety Precautions: Always wear protective gear when working with sharp tools.
- Precision is Key: Measure multiple times before cutting to avoid costly mistakes[3].
When building a guitar neck, it's crucial to avoid common pitfalls:
- Incorrect Neck Angle: Ensure the neck angle is appropriate for the bridge you're using to avoid intonation issues[3].
- Inadequate Truss Rod Installation: Always install the truss rod before gluing the fretboard to prevent structural issues[3].
- Poor Wood Choice: Select woods that are stable and suitable for guitar construction.
For those looking to improve their skills, online courses like "The Art of Guitar Neck Carving" by Tom offer comprehensive guidance on hand-carving techniques, tool selection, and achieving consistent results[1]. This course includes a downloadable blueprint for a neck carving jig and covers topics such as neck design elements and template creation.
Crafting a guitar neck with hand tools is a labor-intensive process that requires dedication and practice. By following these steps and using the right tools, you can create a high-quality neck that enhances the playability and sound of your guitar. Remember to measure carefully, choose the right materials, and avoid common mistakes to ensure a successful build.
Answer: Essential tools include rasps, spokeshave, chisels, sandpaper, and a draw knife. Power tools like a router and drill press can also be useful.
Answer: Choose hardwoods like mahogany or maple for stability and tonal quality. Ensure the wood is quartersawn for better dimensional stability.
Answer: The truss rod helps maintain neck stability by adjusting tension to counteract string pull, preventing warping or bowing.
Answer: Use a combination of rasps for shaping and sandpaper for final smoothing. Regularly check the neck's symmetry and feel.
Answer: Yes, you can make a guitar neck without specialized jigs. Use hand tools and reference existing necks for shape and dimensions.
