Dovetail joints are one of the most iconic and challenging forms of woodworking joinery, often considered the hallmark of a skilled craftsman. These joints are renowned for their strength and beauty, making them a staple in high-quality furniture construction. In this article, we will explore the process of creating a dovetail joint using hand tools, a skill that requires patience, precision, and practice.
Dovetail joints consist of interlocking tails and pins that provide exceptional strength and resistance to pull-out forces. They are commonly used in drawer construction, cabinets, and other furniture pieces where durability is crucial. There are several types of dovetail joints, including through dovetails, half-blind dovetails, and sliding dovetails, each with its unique application and challenges.
- Through Dovetail: This is the most basic form, where both the tails and pins are visible from both sides of the joint.
- Half-Blind Dovetail: Only the tails are visible from one side, making it ideal for drawer fronts.
- Sliding Dovetail: Used for connecting shelves to side walls or between shelves in drawer dividers.
To hand-cut dovetail joints, you will need a variety of specialized tools. Here is a list of the essential tools:
- Marking Gauge: Used to mark consistent lines across the wood.
- Marking Knife: Essential for precise marking of the tails and pins.
- Dovetail Saw: A specialized saw with rip teeth for cutting the tails and pins.
- Chisels: A set of sharp chisels is necessary for removing waste and fine-tuning the joint.
- Mallet: Used to tap chisels gently.
- Square: Ensures accurate right angles.
- Coping or Fret Saw: Helps in removing waste from tight spaces.
- Dovetail Jig: While not necessary, a jig can significantly improve accuracy and speed.
- Sliding Bevel or Dovetail Marker: Useful for marking consistent angles.
Ensure your lumber is square and free of defects. This step is crucial as it affects the overall quality of the joint.
Use a marking gauge to mark the baseline for the tails. Typically, the tails are laid out in a symmetrical pattern. You can use a ruler or dividers to space them evenly.

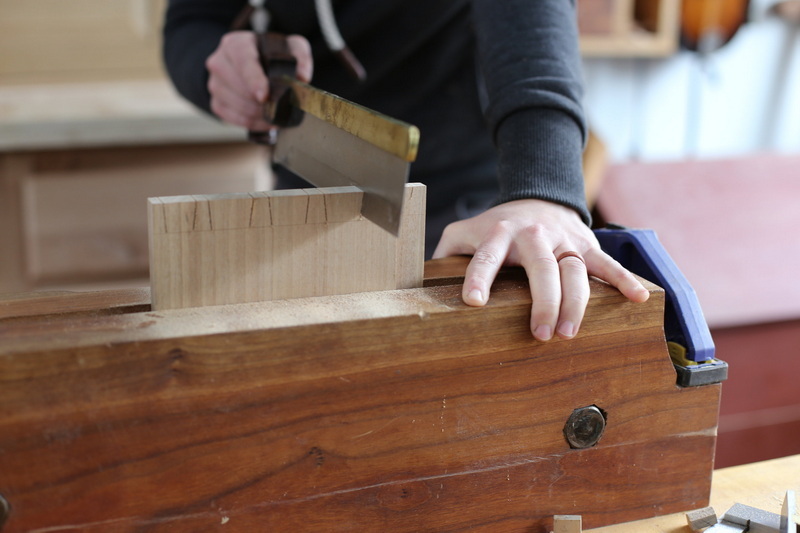

Cut the tails using a dovetail saw. Start with a gentle touch to avoid splintering the wood. It's essential to maintain a consistent angle throughout the cut.
Use the tails as a template to mark the pins on the other piece of wood. Ensure the marks are precise and symmetrical.
Cut the pins using the same dovetail saw. Be careful not to cut too deeply, as this can weaken the joint.
Use chisels to remove the waste between the pins and tails. Start with a wide chisel and gradually move to narrower ones for finer adjustments.
Assemble the joint and check for fit. If necessary, use a chisel to fine-tune the fit.
- Practice on Scrap Wood: Before working on your project, practice cutting dovetail joints on scrap wood to develop your skills.
- Use High-Quality Tools: Sharp tools make a significant difference in the quality of your cuts.
- Take Your Time: Dovetail joints require patience. Rushing through the process can lead to mistakes.
- Choose Forgiving Wood: Softwoods like pine or fir are easier to work with for beginners compared to hardwoods like oak or maple[2].
- Plan to Make It Proud: Set your marking gauge slightly beyond the thickness of the wood to ensure the ends of the pins and tails are slightly proud when assembled. This makes it easier to trim them flush later[2].
- Go Easy on the Show Face Baselines: Avoid marking too deeply on the show face to prevent unnecessary material removal later[2].
- Uneven Cuts: Use a jig or a guide to ensure consistent angles.
- Splintering: Use a sharp saw and apply gentle pressure.
- Loose Fit: Adjust the joint by removing small amounts of material from the pins or tails.
After clearing most of the waste between the pins and tails, it's beneficial to undercut the inside slightly. This helps ensure a flush fit without creating weak edges[2].
For small gaps, use the glue and sawdust trick to fill them. For larger gaps, consider using a wedge made from the same wood species[2].
The dovetail joint has a rich history, dating back to ancient civilizations such as Egypt and China. Its strength and aesthetic appeal have made it a staple in woodworking across cultures and continents[3][8].
Hand-cutting dovetail joints is a rewarding skill that enhances your woodworking capabilities. With practice and the right tools, you can create strong and beautiful joints that add value to your projects. Remember, precision and patience are key to mastering this technique.
The essential tools include a marking gauge, marking knife, dovetail saw, chisels, mallet, and square. Optional tools like a dovetail jig can improve accuracy.
Use a marking gauge and a dovetail saw to maintain consistent angles. A sliding bevel or dovetail marker can also help.
A dovetail saw with rip teeth is ideal. Japanese dozuki and Western backsaws are popular choices.
Use a sharp saw and apply gentle pressure. Cutting slowly and smoothly helps prevent splintering.
Common mistakes include uneven cuts, incorrect angles, and not using sharp tools. Practicing on scrap wood can help avoid these mistakes.
