Views: 222 Author: Edvo Publish Time: 2025-05-24 Origin: Site
Content Menu
● Essential Tools and Materials for Hand Forging Damascus Steel
● Step-by-Step Guide to Forging Damascus Steel by Hand
>> 1. Preparing and Assembling the Billet
>> 2. Heating and Forge Welding
>> 4. Pattern Creation Techniques
● Frequently Asked Questions (FAQ)
>> 1. What steels are best for making Damascus steel by hand?
>> 2. How many layers should a Damascus billet have?
>> 3. Can Damascus steel be forged without a power hammer?
>> 4. How do I prevent weld failure during forge welding?
>> 5. What is the purpose of etching Damascus steel?
Forging Damascus steel by hand is a centuries-old craft that combines artistry, patience, and technical skill. This guide will walk you through the entire process of creating beautiful and functional Damascus steel using traditional hand tools, from selecting materials to final finishing.

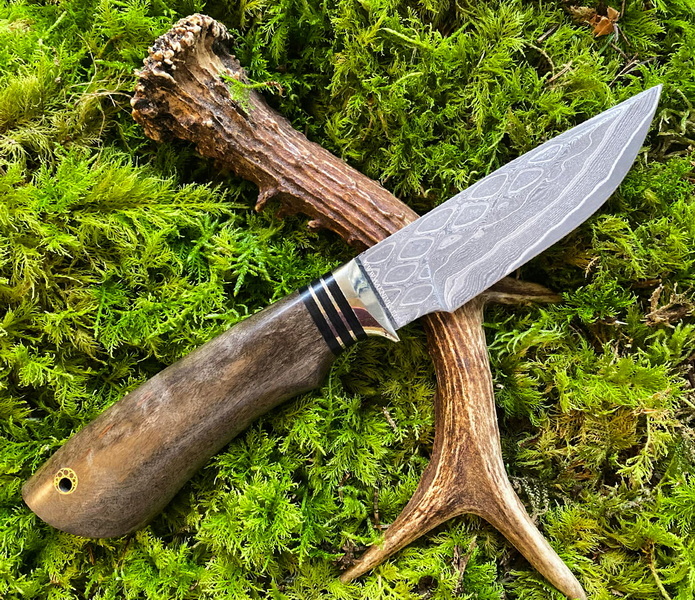

Damascus steel is renowned for its distinctive flowing patterns and exceptional combination of strength, flexibility, and sharpness. It is created by forge-welding multiple layers of different steels, typically alternating high-carbon and nickel-rich steels, and repeatedly folding and hammering them to produce a layered, patterned billet. The final blade reveals these patterns after etching, making each piece unique.
Historically, the original Damascus steel was made from wootz steel imported from India and Sri Lanka, prized for its toughness and ability to hold a keen edge. Modern Damascus steel is a pattern-welded steel, where layers of different steels are forge welded together, folded, and manipulated to create the signature patterns.
Before starting, gather the following:
- Forge: A coal, propane, or charcoal forge capable of reaching forge-welding temperatures (around 2000°F or 1100°C).
- Anvil and hammer: A sturdy anvil and a flat-faced hammer for shaping and welding. A cross-peen hammer is also useful for drawing out the billet.
- Tongs: For safely handling hot steel.
- Flux: Borax is commonly used to prevent oxidation and help weld layers.
- Steel billets: Compatible steels such as 1084 (high carbon) and 15N20 (nickel-rich) are ideal for contrast and weldability.
- Quenching oil: For heat treating the blade.
- Files, belt grinder, and sandpaper: For shaping and finishing the blade.
- Acid etching solution: Ferric chloride to reveal the Damascus pattern.
- Protective gear: Gloves, eye protection, apron, and hearing protection.
The first step is to prepare your steel layers. Cut your steels into uniform strips, typically about 1/2 inch thick and equal width and length. Clean each piece thoroughly to remove mill scale, rust, and oils. This can be done with a wire brush, grinder, or sandpaper.
Next, stack the layers alternately — for example, one layer of 1084 followed by one layer of 15N20. The number of layers you start with depends on your desired final layer count. A common starting stack is 10 to 20 layers.
To keep the stack aligned during welding, you can tack weld the ends or clamp the billet tightly. Attaching a temporary handle, such as a piece of rebar welded to the billet, allows you to safely manipulate the hot steel in the forge.
Heat the billet in your forge until it reaches a bright yellow-orange color, approximately 2000°F (1100°C). At this temperature, the steel is malleable and ready for welding.
Before removing the billet from the forge, sprinkle a generous amount of borax flux on the surface. The flux melts and forms a protective glassy layer that prevents oxidation and helps the layers bond.
Quickly remove the billet and place it on the anvil. Using your hammer, strike the billet with firm, even blows. The goal is to weld the layers together, so avoid heavy blows that might cause the billet to deform unevenly or crack. Work quickly to maintain the heat.
Reheat the billet as necessary and repeat the hammering process several times until the layers fuse into a solid block. You'll know the weld is successful when the billet feels like one piece without any audible separation sounds when struck.
Once the initial weld is solid, begin to draw out the billet by hammering it longer and thinner. This elongation helps prepare the billet for folding.
After drawing out, fold the billet onto itself, effectively doubling the number of layers. For example, if you started with 10 layers, folding once will create 20 layers.
Reheat and forge weld the folded billet again. Repeat this folding and welding cycle multiple times to increase layer count and develop intricate patterns. Each fold doubles the number of layers, so after 5 folds, you have 320 layers (10 × 2^5).
Damascus steel's beauty lies in its patterns, which can be manipulated by various techniques:
- Simple Fold and Weld: Repeated folding creates classic wave-like or ladder patterns.
- Twist Pattern: Heat the billet, clamp it in tongs, and twist it before flattening. This creates spiral or “twist” patterns.
- Mosaic Damascus: More advanced method involving cutting and arranging steel pieces in specific designs before welding.
- Stack and Weld with Cuts: Cutting and re-stacking the billet in different orientations can create “raindrop” or “feather” patterns.
Experimenting with these techniques can yield unique and complex designs. Remember, the pattern only becomes visible after etching.
After achieving the desired layer count and pattern, forge the billet into the rough shape of your blade. Use hammer blows to taper the billet, forming the blade profile. Keep hammer strikes flat and even to maintain consistent thickness.
Use a chisel or angle grinder to remove excess material and refine the blade's shape. Then, use files or a belt grinder to shape the bevels carefully. Hand filing allows for more control and precision, especially on complex curves.
Heat treatment is critical for transforming the forged blade into a functional tool.
- Normalize: Heat the blade to a non-magnetic temperature (~1600°F) and allow it to air cool. Repeat this 2-3 times to relieve internal stresses.
- Harden: Heat the blade above its critical temperature (~1475°F for 1084 steel) until it is non-magnetic, then quench it quickly in oil. This hardens the steel.
- Temper: To reduce brittleness, temper the blade by heating it in an oven at 350-400°F for one hour, then allow it to cool slowly. Repeat tempering 2-3 times.
Proper heat treatment ensures your Damascus blade is tough, durable, and able to hold an edge.
The final step is to reveal the Damascus pattern through etching.
- Sand the blade progressively from coarse grit (60) to fine grit (1200) to create a smooth surface.
- Prepare a ferric chloride solution diluted with water (usually 1 part ferric chloride to 2 parts water).
- Submerge the blade in the solution for 5-15 minutes, checking frequently. The acid will etch the steel layers at different rates, revealing the pattern.
- Rinse the blade thoroughly with water and neutralize the acid with a baking soda solution.
- Dry and polish the blade. Apply oil or wax to protect the surface.
Forging Damascus steel involves high temperatures, sharp tools, and hazardous chemicals. Always:
- Wear heat-resistant gloves, eye protection, and an apron.
- Work in a well-ventilated area to avoid inhaling fumes.
- Handle acids with care, using gloves and eye protection.
- Keep a fire extinguisher nearby.
Forging Damascus steel with hand tools is a rewarding blend of science and art. It demands patience, attention to detail, and respect for traditional blacksmithing techniques. By carefully selecting compatible steels, mastering forge welding, and practicing folding and patterning, you can create stunning, durable blades with unique patterns. The process may be challenging, but the resulting craftsmanship is truly timeless.
With practice, your skills will improve, and you'll be able to create Damascus steel blades that are not only functional but also works of art, carrying on a tradition that spans centuries.
The most recommended steels are 1084 (high carbon) and 15N20 (nickel-rich) because they weld easily and produce excellent contrast in patterns. Other combinations can be used, but these are beginner-friendly and reliable.
Typically, 300 to 500 layers are ideal for a good balance of pattern visibility and blade performance. Some blades have thousands of layers, but this requires more skill, time, and precise control over welding.
Yes, it can be forged entirely by hand using a hammer and anvil, but it requires more frequent reheating and patience to maintain temperature and weld quality. A power hammer speeds the process but isn't necessary.
Ensure the billet is clean, hot enough (bright yellow-orange), and fluxed properly. Hammer quickly and evenly to avoid cooling too much. Practice is key to mastering this step, as timing and heat control are critical.
Etching with acid reveals the contrasting layers by corroding different steels at different rates, highlighting the characteristic patterns that make Damascus steel visually striking.
