Rotary laser levels are essential tools in construction and surveying, providing accurate leveling and alignment over long distances. However, like any precision instrument, they can become inaccurate due to various factors such as improper calibration, physical damage, or environmental conditions. This article will guide you through the process of identifying and fixing inaccuracies in a rotary laser level, ensuring that your projects remain on track with precise measurements.

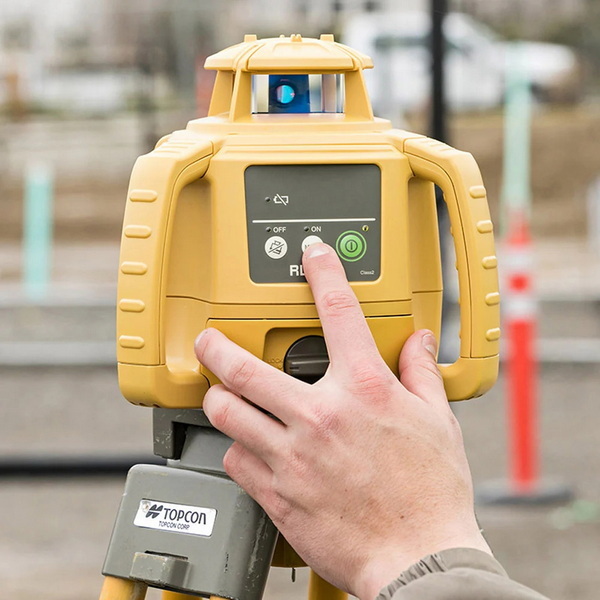

Rotary laser levels are designed to project a rotating laser beam that creates a level plane, allowing users to align and level surfaces with high accuracy. They are commonly used in construction for tasks such as laying foundations, installing pipes, and aligning walls. These devices come in different types, including manual, self-leveling, and electronic self-leveling models, each offering varying degrees of accuracy and ease of use.
1. Manual Leveling: These models require the user to manually adjust the laser to achieve level using bubble vials. They are the least expensive but require more time to set up and have lower accuracy, typically around 1/8 inch per 30 feet.
2. Self-Leveling: These use a pendulum and magnets to automatically level the laser. They offer better accuracy than manual models, usually around 1/8 inch per 100 feet.
3. Electronic Self-Leveling: These models use servo-motors for automatic leveling and provide the highest accuracy, typically 1/16 inch per 100 feet.

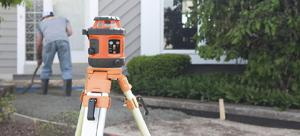

Inaccurate readings from a rotary laser level can stem from several causes:
- Improper Calibration: If the laser level has not been calibrated correctly, it will not provide accurate readings. Calibration involves ensuring that the laser beam is perfectly level and aligned with the reference points.
- Physical Damage: Drops or impacts can damage the internal mechanisms, affecting the laser's ability to self-level or maintain accuracy.
- Environmental Factors: Refraction can occur when the laser beam passes through different mediums (e.g., air to glass), causing deviations in the beam's path.
- Battery Issues: Low or damaged batteries in the laser or detector can lead to inconsistent performance.

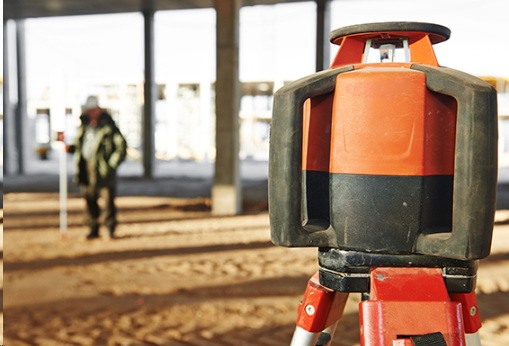

Ensure the laser level and its components are free from damage. If the bubble vial is broken or the laser diode is damaged, it may need to be replaced. Inspect the tripod and mounting system for any wear or damage that could affect stability.
Calibration is crucial for maintaining accuracy. Here's a basic calibration process:
1. Setup: Place the laser on a tripod and ensure it is level using a carpenter's level. Secure the laser firmly to the tripod.
2. Marking: Turn the laser towards a target (wall or pole), and use a detector to mark the point where the laser hits. Rotate the laser 180° and mark again. The midpoint between these marks should be the true level.
3. Adjustments: If necessary, adjust the laser's leveling mechanism to ensure the beam aligns with the true level mark.
Ensure there are no obstructions or reflective surfaces that could cause refraction. Move the laser away from windows or other glass surfaces. Also, avoid using the laser in extreme temperatures or humidity, as these conditions can affect its performance.
Check both the laser and detector batteries. Replace them if they are low or damaged. Ensure that the battery compartment is clean and free from corrosion, which can prevent proper contact.
After adjustments, test the laser level by repeating the calibration process to ensure accuracy. Perform this test in different locations and orientations to confirm that the laser maintains its accuracy across various setups.
- Cause: The laser might be outside its self-leveling range or damaged.
- Solution: Reposition the laser within its leveling range (±5 degrees) and restart it. If it still fails, contact the service department.
- Cause: Low batteries, obstructions, or being too close to the laser.
- Solution: Replace batteries, clear obstructions, and ensure you are at least 3 meters away from the laser. Adjust the detector's sensitivity if possible.
- Cause: Battery issues or compartment damage.
- Solution: Check and replace batteries if necessary. Clean the battery compartment and ensure terminals are not corroded. If the issue persists, consider replacing the battery pack or contacting the manufacturer.
For projects requiring high precision, use multiple reference points to ensure that the laser level is accurately aligned. This involves setting up multiple targets around the work area and verifying that the laser beam intersects these points consistently.
Laser receivers are essential for detecting the laser beam over long distances or in bright conditions. They can amplify the signal, making it easier to align with the beam. Ensure that the receiver is calibrated to the laser's frequency for optimal performance.
Regular maintenance is key to maintaining the accuracy of your rotary laser level. This includes cleaning the laser diode and lens regularly, storing the device in a protective case when not in use, and performing routine checks for physical damage.
Fixing an inaccurate rotary laser level involves a systematic approach to identify and address potential issues. By following the calibration steps, checking for physical damage, and ensuring proper environmental conditions, you can restore your laser level's accuracy. Regular maintenance and troubleshooting can prevent costly mistakes and ensure that your projects are completed efficiently and accurately.
Calibration should be performed regularly, ideally once a year, or whenever the device is dropped or exposed to extreme conditions.
Refraction occurs when the laser beam passes from one medium to another (e.g., air to glass), altering its path and affecting accuracy.
This could be due to the laser being outside its self-leveling range or damage from impact. Reposition the laser and restart it. If issues persist, contact the service department.
Perform a calibration test by marking points at different rotations and checking if they align with the true level.
While rotary laser levels can be used outdoors, visibility may be reduced in direct sunlight. Receivers are often used to detect the beam over long distances.
