Cutting stone with hand tools is a traditional skill that requires patience, precision, and the right techniques. Whether you're a DIY enthusiast or a professional mason, understanding how to use hand tools effectively can help you achieve professional-looking results in various projects, from paving to decorative stone work. This article will guide you through the essential tools and techniques for cutting stone by hand.

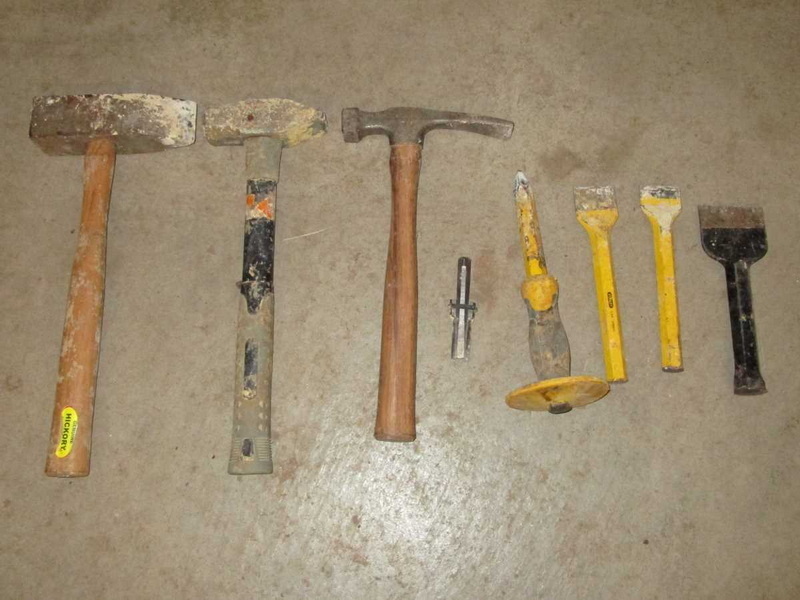

Hand tools for stone cutting include a variety of implements designed to split, trim, and shape stone. The most common tools are:
- Feather and Wedge System: Used for splitting large stones along a straight line.
- Hand Tracer: Ideal for precise cuts, especially in smaller stones.
- Hand Point: Used to remove small bumps and imperfections.
- Carbide Handset Chisels: For trimming and knocking off high spots.
The feather and wedge system is a traditional method for splitting large stones. It involves drilling holes along the desired cut line, inserting feathers (metal strips) and a wedge into each hole, and then tapping the wedges with a hammer until the stone splits.
Step-by-Step Guide:
1. Mark the Cutting Line: Use a pencil or chalk to mark where you want to cut.
2. Drill Holes: Use a masonry bit to drill holes spaced evenly along the marked line.
3. Insert Feathers and Wedge: Place feathers on the outside of each hole and a wedge in between.
4. Tap the Wedges: Gently tap the wedges with a hammer until the stone splits.
A hand tracer is used for more precise cuts, especially in smaller stones. It involves marking the cutting line, positioning the tracer vertically along the line, and striking it with a hammer to create a shallow channel.
Step-by-Step Guide:
1. Mark the Cutting Line: Use a pencil or chalk to mark where you want to cut.
2. Position the Tracer: Place the tracer vertically along the marked line.
3. Strike the Tracer: Hit the top of the tracer with a hammer, moving it slightly after each strike.
4. Continue Until Split: Repeat the process until the stone splits along the desired line.
A hand point is essential for refining stone edges and removing small imperfections. It involves positioning the point at the base of the area to be removed and striking it gently with a hammer.
Step-by-Step Guide:
1. Identify Imperfections: Examine the stone for bumps or irregularities.
2. Position the Point: Place the point at the base of the area to be removed.
3. Strike Gently: Hit the point with a hammer, trying to get underneath the bump.
4. Refine Edges: Continue until the desired shape and smoothness are achieved.
Carbide handset chisels are used for trimming and knocking off high spots. They come in various sizes and are ideal for precise work on harder stones.
Step-by-Step Guide:
1. Select the Right Chisel: Choose a chisel that fits the size of the area to be trimmed.
2. Hold at an Angle: Position the chisel at an angle to the stone.
3. Strike with a Hammer: Hit the chisel with a hammer to chip off small pieces of stone.
4. Refine Edges: Continue until the desired shape is achieved.
Before cutting, it's crucial to prepare the stone by marking and measuring the cut line accurately. Use a pencil or chalk to outline where you want to cut, and ensure the stone is securely held in place to prevent movement during cutting.
Use clamps or a vise to hold the stone firmly. This stability allows your tools to cut with precision and safety.
Always wear protective gear, including goggles and gloves, to protect yourself from flying debris. Ensure the work area is clean and free from obstacles.
- Challenge: Stones may not split evenly.
- Solution: Ensure the feathers and wedges are aligned correctly, and tap gently to avoid applying too much pressure.
- Challenge: Edges may become uneven.
- Solution: Use a carbide handset chisel to trim edges carefully, holding it at the correct angle.
- Challenge: High spots may be difficult to remove.
- Solution: Use a directional point at the correct angle to chip off larger pieces.
A stone hammer is used in conjunction with chisels to provide more forceful strikes. It's essential for shaping larger stones and removing significant portions.
Step-by-Step Guide:
1. Select the Right Chisel: Choose a chisel appropriate for the size of the area to be shaped.
2. Position the Chisel: Hold the chisel firmly against the stone.
3. Strike with a Hammer: Use the stone hammer to strike the chisel, applying controlled force.
4. Refine the Shape: Continue until the desired shape is achieved.
Decorative edges can enhance the aesthetic appeal of stone work. Use a combination of hand points and chisels to create intricate designs.
Step-by-Step Guide:
1. Design the Edge: Sketch the desired pattern on the stone.
2. Use a Hand Point: Start by removing small areas to create the design.
3. Refine with Chisels: Use chisels to smooth and refine the edges.
4. Final Touches: Apply a final polish if desired.
Start with small stones to practice your techniques before moving on to larger projects.
Ensure you have the correct tools for the type of stone you are working with. Different stones may require different tools due to variations in hardness and texture.
Good lighting is essential for seeing the details of your work and ensuring safety.
Cutting stone with hand tools requires skill, patience, and practice. By mastering the feather and wedge system, hand tracer, hand point, and carbide handset chisels, you can achieve professional-looking results in various stone projects. Remember to always prioritize safety and use the right techniques for the type of stone you are working with.
The best tool for cutting straight lines in stone is often the hand tracer, which allows for precise control and can produce clean, straight cuts.
To split large stones by hand, use the feather and wedge system. Drill holes along the desired cut line, insert feathers and a wedge, and tap the wedges gently until the stone splits.
Always wear protective gear, including goggles and gloves, and ensure the stone is securely held in place to prevent accidents.
Use a hand point or directional point to chip off high spots. Position the point at the base of the area to be removed and strike it gently with a hammer.
A hand tracer is used for creating precise cuts along a line, while a carbide handset chisel is used for trimming edges and knocking off high spots.
