Calibrating a rotary laser level is crucial for ensuring accurate measurements in construction and surveying tasks. This process helps maintain the precision of your laser level, especially after it has been transported, dropped, or used extensively. In this comprehensive guide, we will explore the steps involved in calibrating a rotary laser level, the tools required, tips for effective calibration, and additional insights into their applications and maintenance.
Rotary laser levels project a rotating beam of light that can be used to establish a level reference point over large distances. They are essential tools in various fields such as construction, landscaping, and interior design. There are different types of rotary laser levels, including manual leveling and self-leveling models.
- Manual Leveling: The user must adjust the level using bubble vials.
- Self-Leveling: These models use pendulums or electronic mechanisms to achieve level automatically.
Regardless of the type, calibration is necessary to ensure accuracy.
Before starting the calibration process, gather the following tools:
- Rotary laser level
- Tripod (if applicable)
- Measuring tape
- Pencil or marker
- Leveling tool (carpenter's level)
- Laser receiver (for some models)
1. Choose a Flat Surface: Place your rotary laser level on a stable and flat surface or mount it on a tripod.
2. Positioning: Ensure the laser is at least 1 foot away from one wall and 20 feet from the opposite wall. This distance may vary based on your specific model.
3. Level the Tripod: If using a tripod, adjust its legs until it is perfectly level using a carpenter's level.
1. Power Up: Switch on your rotary laser level. Allow it to self-level if it has that feature.
2. Initial Marking: Aim the laser beam at one of the walls and mark where the beam strikes with a pencil or marker.

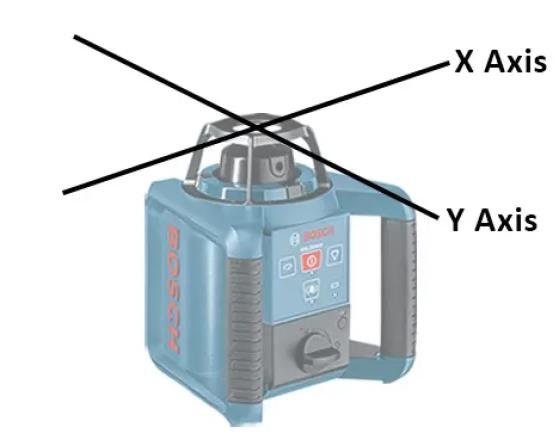

1. Rotate 180 Degrees: Without moving the tripod or base, rotate the laser 180 degrees and mark where the beam strikes on the opposite wall.
2. Check Alignment: Measure the distance between these two marks. If they are within your device's specified tolerance (usually between 1/8 inch to 1/16 inch), your unit is calibrated correctly.
1. Rotate 90 Degrees: Now rotate the laser level 90 degrees to aim at another wall and repeat the marking process.
2. Mark Again: After marking, rotate back 180 degrees and mark again on this wall.
3. Measure Differences: Check if these marks are also within tolerance.
If any marks are outside of acceptable limits:
1. Adjust Using Screws: Most rotary laser levels have adjustment screws corresponding to their vials. Use these screws to fine-tune the alignment until both marks are within tolerance.
2. Recheck Calibration: After adjustments, repeat steps 3 and 4 to confirm that all measurements are accurate.
- Always calibrate in an environment with minimal vibrations.
- Ensure that no obstructions interfere with the beam path during calibration.
- Regularly check calibration before starting significant projects, especially after transporting equipment.
Several factors can affect how often you need to calibrate your rotary laser level:
- Frequent Use: Regular use can lead to minor shifts in internal mechanisms due to vibrations.
- Transportation: Moving your laser level can disrupt delicate internal alignments.
- Environmental Conditions: Extreme temperatures and humidity can impact performance.
If you find that your rotary laser level is consistently out of calibration:
- Impact Damage: Check for any signs of physical damage from drops or impacts.
- Internal Mechanism Issues: Internal components may have shifted; consider professional recalibration if issues persist.
- Battery Power: Low battery power can affect performance; ensure your device is fully charged or replace batteries as needed.
To keep your rotary laser level functioning optimally:
- Clean lenses regularly to avoid obstructions in the beam path.
- Store in a protective case when not in use to prevent damage.
- Follow manufacturer guidelines for maintenance schedules and procedures.
Rotary laser levels are versatile tools used across various industries due to their ability to project accurate horizontal and vertical lines over long distances. Here are some common applications:
- Construction Projects: Used extensively in building foundations, framing walls, installing ceilings, and laying out structures accurately.
- Landscaping: Essential for grading land accurately and ensuring proper drainage by establishing consistent slopes.
- Interior Design: Useful for hanging cabinets, shelves, and artwork at precise heights throughout residential or commercial spaces.
- Road Construction: Employed in establishing grades for roads and highways ensuring proper elevation for water runoff.
- Surveying: Surveyors utilize these tools for establishing benchmarks and reference points across large areas.
Rotary lasers come in various types designed for specific tasks:
These require manual adjustments using bubble vials:
- Generally less expensive but require more skill from users.
- Accuracy depends heavily on user proficiency in adjusting the bubble vial correctly.
These automatically adjust themselves using pendulum systems:
- More convenient as they save time during setup.
- Typically offer better accuracy compared to manual models but may be more expensive.
These utilize advanced technology with servo motors:
- Provide high precision (up to 1/16 inch per 100 feet).
- Often feature additional functionalities such as remote control operation or digital displays indicating leveling status.
For professionals who require utmost precision beyond standard calibration methods:
1. Using Optical Levels:
- Compare measurements against an optical leveling instrument known for high accuracy.
- This method involves setting up both instruments at equal distances from a reference point and comparing results.
2. Laser Receiver Calibration:
- For models equipped with receivers, ensure that both the transmitter (laser) and receiver are calibrated together as discrepancies between them can lead to errors in measurement readings.
3. Professional Calibration Services:
- Consider sending your device to professional services specializing in calibration if you frequently encounter issues or if high-stakes projects demand absolute precision.
- These services often utilize advanced equipment like CCTV systems that provide detailed assessments of alignment issues not visible through standard methods.
Many users report significant improvements in efficiency when utilizing rotary laser levels compared to traditional methods:
- Time Savings: Users often complete tasks faster since they can project lines over long distances without needing multiple reference points.
- Increased Accuracy: Many find that their work quality improves significantly as they rely on precise measurements rather than estimates or manual leveling techniques.
- Ease of Use: With self-leveling features becoming standard in many models today, even novice users find it easy to achieve accurate results without extensive training or experience.
Calibrating your rotary laser level regularly is essential not only for maintaining its accuracy but also for enhancing overall work quality across various applications—from construction projects to interior design tasks. By understanding how different types of lasers work and implementing effective calibration techniques tailored to your needs, you can minimize errors significantly while maximizing efficiency in every project you undertake.
Calibration should be performed before significant projects or after transporting your equipment to ensure accuracy; ideally every six months if used frequently.
If your self-leveling model fails to level itself after being turned on, check for obstructions around its base or potential physical damage; refer to manufacturer instructions for specific troubleshooting steps as well.
Yes! While it's possible to calibrate alone by following systematic steps outlined above; assistance may enhance measurement precision especially when marking targets far apart from each other during checks!
Most rotary lasers typically offer accuracies ranging between 1/8 inch up through 1/16 inch over distances up towards around one hundred feet depending upon model specifications!
While not strictly necessary—using tripods aids stability while allowing greater ease-of-use when working with larger setups where maintaining consistent positions becomes difficult otherwise!
