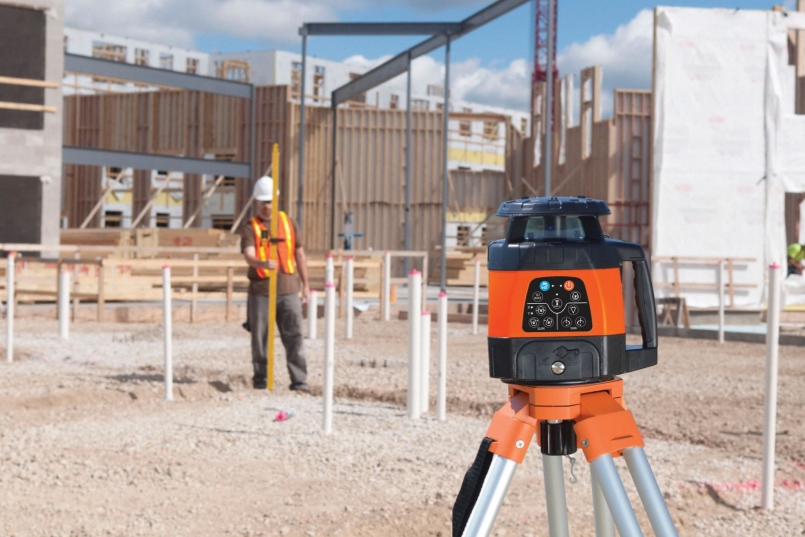

A horizontal and vertical rotary laser level is an invaluable tool for a multitude of construction and surveying tasks. These tools project a laser beam that rotates 360 degrees, creating a precise horizontal or vertical plane. This allows users to establish level references over long distances, essential for tasks such as setting foundations, aligning fences, framing walls, and ensuring proper drainage[2][5].
However, like any precision instrument, a horizontal and vertical rotary laser level can fall out of calibration. Factors such as bumps during transport, temperature changes, or general wear and tear can affect its accuracy. Using an uncalibrated laser level can lead to significant errors in your work, resulting in costly rework and structural problems. Therefore, understanding how to calibrate your horizontal and vertical rotary laser level is crucial for maintaining accuracy and ensuring reliable results[7].
This guide provides a comprehensive, step-by-step approach to calibrating your horizontal and vertical rotary laser level. We will cover the necessary tools, preparation steps, and detailed instructions for both horizontal and vertical calibration. Additionally, we will address common issues and provide troubleshooting tips to help you achieve optimal performance.
Before diving into the calibration process, it's important to understand why calibration is necessary. Calibration ensures that the laser beam is accurately aligned with the level's internal mechanisms. When a laser level is properly calibrated, it provides a true horizontal or vertical plane, which is essential for precise measurements and alignments[7].
Here are several reasons why regular calibration is important:
- Accuracy: Calibration ensures that your laser level provides accurate readings, preventing errors in your projects[4].
- Consistency: A calibrated laser level delivers consistent results over time, ensuring that your work remains precise and reliable[4].
- Professionalism: Using a calibrated tool demonstrates professionalism and attention to detail, enhancing your reputation among clients and peers.
- Cost Savings: Accurate measurements reduce the likelihood of errors, minimizing rework and saving time and money[4].
- Safety: Inaccurate leveling can lead to structural instabilities and safety hazards. Proper calibration helps ensure the safety of your projects.
To calibrate your horizontal and vertical rotary laser level, you will need the following tools and equipment:
1. Horizontal and Vertical Rotary Laser Level: Obviously, you'll need the laser level you intend to calibrate.
2. Tripod (Recommended): A stable tripod provides a level and steady base for your laser level, improving accuracy during calibration[1].
3. Measuring Tape or Ruler: Used to measure distances and heights accurately[3].
4. Level Vial (Optional): A level vial can be used to verify the levelness of your setup surface.
5. Screwdriver Set: Some laser levels require a small screwdriver to adjust the calibration screws[1].
6. Remote Control (If Applicable): Some electronic self-leveling lasers come with a remote control, which can be useful for making adjustments from a distance[9].
7. Target or Paper: Used to mark and measure the laser beam's position on a wall[7].
8. Pencil or Marker: For marking reference points on the target or wall[7].
9. User Manual: Always refer to the user manual for specific instructions and safety guidelines for your laser level.
Before starting the calibration process, it's essential to prepare your workspace and equipment. Follow these steps to ensure a smooth and accurate calibration:
1. Choose a Suitable Location:
- Select a location with a stable, level surface. An indoor space is preferable to avoid wind or sunlight interference[1].
- Ensure there is enough distance (at least 30 feet) between the laser level and the target wall to improve accuracy[4].
- The area should be free from obstructions and potential disturbances.
2. Set Up the Laser Level:

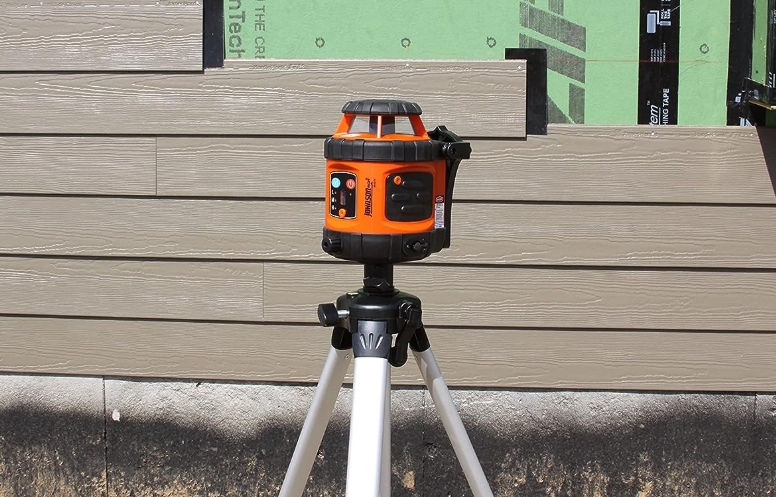

- Mount the laser level on a stable tripod, if available. This will provide a steady base and allow for precise adjustments[1].
- If using a surface, ensure it is as level as possible. Use a level vial to check and make necessary adjustments.
3. Prepare the Target Wall:
- Place a large piece of paper or a target on the wall at approximately the same height as the laser level[7].
- Ensure the target is securely attached to the wall.
4. Power On and Warm-Up:
- Turn on the laser level and allow it to warm up for a few minutes. This ensures that the internal components stabilize, providing more accurate readings.
- Check the battery level to ensure it is sufficiently charged for the calibration process.
5. Read the User Manual:
- Familiarize yourself with the specific calibration procedures and safety guidelines outlined in the user manual for your laser level.
The calibration process involves checking and adjusting both the horizontal and vertical axes of your rotary laser level. Follow these steps carefully to ensure accurate calibration.
1. Set Up the Laser:
- Place the laser level on a flat surface or tripod, ensuring it is stable[1].
- Position the laser so that the "X" axis is aimed at the target wall[7].
- Turn on the laser and ensure the beam is visible on the target.
2. Mark the Initial Height:
- Place a piece of paper on the wall and mark the height of the laser beam on the paper[7]. Label this mark as "A."
3. Rotate the Laser 180 Degrees:
- Carefully rotate the body of the laser level 180 degrees, keeping the laser at the same height and position[7].
- Ensure the "X" axis is now facing the opposite direction.
4. Mark the Second Height:
- Again, mark the height of the laser beam on the paper[7]. Label this mark as "B."
5. Evaluate the Marks:
- Measure the distance between marks "A" and "B."
- If the distance is minimal (refer to your user manual for the exact specification, but typically within 1/8 inch), your horizontal axis is well-calibrated[4].
- If the distance is greater than the specified tolerance, proceed with the calibration adjustment.
6. Access Calibration Mode (If Necessary):
- Some electronic self-leveling lasers have a calibration mode[9]. Refer to your user manual for instructions on how to enter this mode. It may involve pressing specific buttons in a sequence.
7. Adjust the Laser:
- Depending on your model, you may need to use a small screwdriver to adjust the calibration screws[1]. These screws are typically located on the side or top of the laser level.
- Adjust the screws until the laser beam is exactly in the middle of marks "A" and "B." This ensures that the laser is projecting a true horizontal plane[1].
- If using an electronic self-leveling laser with a remote control, you may be able to make these adjustments remotely[9].
8. Recheck Calibration:
- Repeat steps 2-5 to ensure that the horizontal axis is now accurately calibrated.
- Make further adjustments if necessary until the distance between the marks is within the specified tolerance.
1. Set Up the Laser:
Place the laser level in the vertical position using the vertical mount bracket, if included[5].
Power on the unit and allow it to self-level[9].
2. Mark the Initial Height:
Mark a vertical line on the wall[9].
3. Rotate the Laser 90 Degrees:
Rotate the instrument 90 degrees and, after self-leveling, mark another vertical line. Label this line as "B"[9].
4. Repeat Rotation:
Repeat the rotation two more times, labeling the lines as "C" and "D"[9].
5. Measure Vertical Distance:
Measure the vertical distance "h" between the highest and lowest points among lines A, B, C, and D[9].
6. Evaluate Accuracy:
If "h" is within the specified tolerance (typically 2mm or less), the accuracy is qualified[9].
If "h" is greater than the tolerance but less than 10mm, adjust the calibration[9].
If "h" is greater than 10mm, contact an authorized service center for repair[9].
7. Access Calibration Mode (If Necessary):
As with horizontal calibration, some models require entering a calibration mode. Refer to your user manual for specific instructions[9].
8. Adjust the Laser:
Use the remote control or manual adjustments to move the laser line until it aligns with a reference point[9].
9. Recheck Calibration:
Repeat steps 2-5 to ensure that the vertical axis is now accurately calibrated.
Make further adjustments if necessary until the vertical distance is within the specified tolerance.
For more precise calibration, consider the following advanced techniques:
- Use a Laser Detector: A laser detector can help you locate the laser beam more accurately, especially in bright conditions or over long distances[2].
- Employ Multiple Reference Points: Instead of relying on just two marks, use multiple reference points to verify the accuracy of the laser plane.
- Check at Varying Distances: Ensure the laser level is accurate at different distances to account for any potential beam divergence.
During the calibration process, you may encounter some common issues. Here are a few troubleshooting tips:
- Inconsistent Readings:
- Ensure the laser level is placed on a stable surface and is not subject to vibrations.
- Check the battery level and replace if necessary.
- Verify that the laser level is within its specified operating temperature range.
- Laser Beam is Faint or Invisible:
- Clean the laser lens with a soft, dry cloth.
- Ensure the laser level is not exposed to direct sunlight, which can make the beam difficult to see.
- Use tinted glasses or a laser detector to enhance visibility[5].
- Laser Level Will Not Self-Level:
- Ensure the laser level is placed within its self-leveling range (typically ±5 degrees).
- Check for any obstructions that may be interfering with the leveling mechanism.
- Refer to the user manual for troubleshooting steps specific to your model.
- Calibration Mode Not Accessible:
- Double-check the button sequence for entering calibration mode in the user manual.
- Ensure that the laser level is in the correct mode (e.g., horizontal or vertical) before attempting to enter calibration mode.
To keep your horizontal and vertical rotary laser level in optimal condition and maintain its calibration, follow these best practices:
- Handle with Care: Avoid dropping or bumping the laser level, as this can damage the internal components and affect calibration.

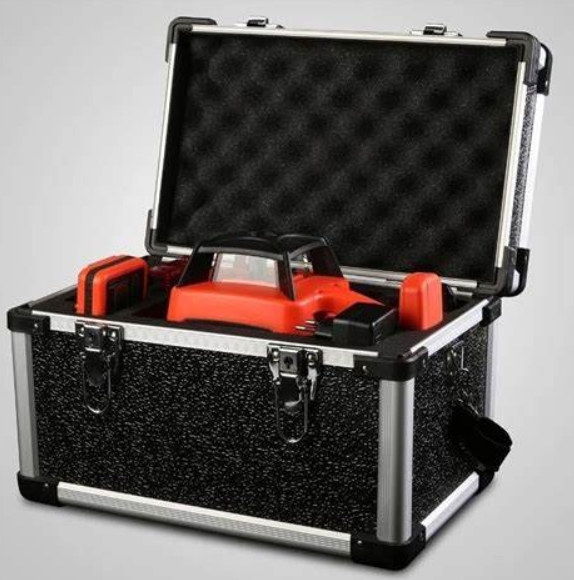

- Store Properly: When not in use, store the laser level in its protective case in a dry, stable environment[5].
- Check Calibration Regularly: Periodically check the calibration of your laser level, especially before starting critical projects[7].
- Replace Batteries: Use high-quality batteries and replace them regularly to ensure consistent performance.
- Professional Servicing: Consider having your laser level professionally serviced and calibrated by an authorized technician every one to two years, depending on usage.
Calibrating a horizontal and vertical rotary laser level is essential for maintaining accuracy and ensuring reliable results in construction and surveying projects. By following the step-by-step instructions and best practices outlined in this guide, you can confidently calibrate your laser level and achieve precise measurements. Regular calibration not only improves the quality of your work but also saves time and money by reducing errors and rework. Remember to consult your user manual for specific instructions and safety guidelines for your laser level model.
You should check the calibration of your laser level before each critical project or after any event that could affect its accuracy, such as a drop or significant temperature change. A full calibration should be performed at least every six months to a year, depending on usage.
Self-leveling refers to the laser level's ability to automatically adjust to a perfectly horizontal or vertical plane within a certain range[2]. This is typically achieved through an internal pendulum and magnets or electronic servo motors[4]. Self-leveling saves time and ensures accuracy compared to manual leveling methods.
While the general principles of calibration apply to most horizontal and vertical rotary laser levels, the specific steps and access to calibration mode may vary between brands and models. Always refer to your user manual for detailed instructions specific to your laser level.
Manual leveling requires the operator to manually adjust the laser level using bubble vials to achieve a level plane[4]. Automatic self-leveling uses internal mechanisms, such as a pendulum and magnets or electronic servo motors, to automatically level the laser within a specified range[4]. Automatic self-leveling is more accurate and faster than manual leveling.
If you are unable to calibrate your laser level after following the recommended steps, or if the accuracy remains outside the specified tolerance, contact an authorized service center or dealer for professional repair and calibration. Continuing to use an uncalibrated laser level can lead to significant errors in your projects[9].
