In the world of construction, surveying, and various DIY projects, precision and visibility are crucial. One of the most advanced tools to ensure accuracy in leveling and alignment tasks is the green beam rotary laser level. This article explores in detail the reach of green beam rotary laser levels, their advantages, technical specifications, and practical considerations, helping you understand how far these devices can effectively project their laser beams.

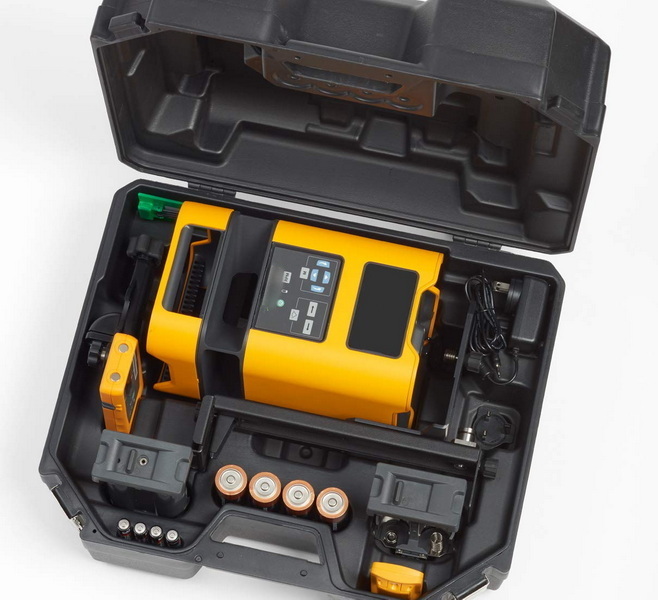

A green beam rotary laser level is a self-leveling tool that emits a rotating green laser beam to create a 360-degree horizontal or vertical plane. It is widely used in construction, landscaping, and interior finishing to ensure level surfaces, align structures, and transfer heights over long distances.
The green laser beam is preferred over red because the human eye perceives green light as 3 to 4 times brighter than red, making it more visible especially in daylight or bright conditions[5][7][15].
The effective reach of a green beam rotary laser level depends on several factors including the power of the laser diode, ambient light conditions, and whether a laser detector is used.
- Without a detector, green beam lasers can typically be seen clearly up to 100 to 200 feet (30 to 60 meters) indoors or in low-light conditions[2][19].
- With a laser detector, the effective range can extend dramatically, often reaching up to 500 to 1000 meters (1600 to 3300 feet) in diameter depending on the model[1][3][11].
For example, the GPR-G95 Green Beam Rotary Laser Level has a measuring range of 500 meters diameter using a laser detector[11]. Another model, the LRE203 Green Beam Rotary Laser Level, offers a working distance of 1000 meters with a detector[3].
- Laser Power and Wavelength: Green lasers typically operate around 520-532 nm wavelength, which is more visible to the human eye. Higher output power (up to 1mW or Class II/III lasers) extends visibility[3][14].
- Ambient Light: Bright sunlight reduces visible range significantly; hence, detectors are essential for outdoor use beyond 30 meters[2][17].
- Surface Reflectivity: Laser beams reflect better on certain surfaces, improving visibility.
- Obstructions: Physical barriers like walls or trees limit the laser beam's reach.
- Detector Sensitivity: Advanced laser receivers can detect faint beams over long distances, enhancing effective range[2].
Green beams are significantly brighter and more visible than red beams, especially in daylight or challenging lighting conditions. This makes green lasers ideal for large-scale projects or outdoor work where visibility is critical[5][6][15].
Using a compatible laser detector or receiver, green beam rotary lasers can cover vast distances, sometimes up to 1000 meters, making them suitable for large construction sites and grading tasks[1][3][11].
Green beam rotary lasers can be used for horizontal and vertical leveling, slope grading, and layout work. Many models offer adjustable rotation speeds and scanning angles to suit different applications[4][10][18].
| Feature | Typical Specification | Example Model |
|---|---|---|
| Laser Wavelength | 520-532 nm (Green) | GPR-G95, LRE203 |
| Accuracy | ±1.5mm at 30m to ±1mm at 1.5m | General RL-20G, Tokopedia model |
| Self-Leveling Range | ±4° to ±5° | GSW201G, iMEX i88G |
| Working Range (with detector) | 500m to 1000m diameter | LRE203 (1000m), GPR-G95 (500m) |
| Battery Life | 6 to 24 hours (depending on model and battery type) | iMEX i88G (24h), Tokopedia model (6-8h) |
| IP Rating (Dust/Waterproof) | IP54 to IP66 | Stanley FatMax (IP66), General RL-20G (IP65) |
| Rotation Speed | 0 to 600 rpm (adjustable) | Tokopedia model, iMEX i88G |
| Remote Control Range | 20m to 25m | LRE203 (25m), Tokopedia model (20m) |
For outdoor work or distances beyond 30 meters, a laser detector is essential to locate the laser beam accurately. Detectors amplify the laser signal and provide audible or visual feedback to the operator[2][10].
Laser visibility is best during dawn, dusk, or cloudy days. Fog, rain, dust, or direct sunlight can significantly reduce the visible range of the beam[2].
Green laser diodes consume more power than red ones, so battery life may be shorter. Rechargeable lithium-ion batteries with longer runtimes (up to 24 hours) are preferred for extended projects[15][18].
Regular calibration (recommended every 6-12 months) ensures accuracy over long distances. Proper handling and storage protect the sensitive optics and electronics[9][16].
The reach of a green beam rotary laser level can vary widely depending on the model, ambient conditions, and use of accessories like laser detectors. Typically, these devices offer a visible range of 100-200 feet without detectors and can extend up to 500-1000 meters in diameter with detectors. Their superior visibility compared to red lasers makes them ideal for both indoor and outdoor use, especially in bright environments. When selecting a green beam rotary laser level, consider your project's distance requirements, lighting conditions, and whether you will use a detector to maximize the tool's effectiveness.
You can typically see the green laser beam clearly up to about 100 to 200 feet (30 to 60 meters) indoors or in low light conditions without a detector[2][19].
With a laser detector, green beam rotary lasers can reach up to 500 to 1000 meters (about 1600 to 3300 feet) depending on the model and environmental conditions[1][3][11].
The human eye perceives green light as 3 to 4 times brighter than red light, making green beams more visible especially in daylight or bright environments[5][7][15].
Yes, green laser diodes consume more power than red ones, which often results in shorter battery life. However, modern rechargeable batteries can provide extended runtimes[15][18].
It is recommended to calibrate the laser level every 6 to 12 months or after any significant impact to maintain accuracy[9][16].
