The Johnson manual rotary laser level is a versatile tool that has become increasingly popular among both professionals and DIY enthusiasts. For beginners, the prospect of using such a device might seem daunting at first. However, with the right guidance and understanding, operating a Johnson manual rotary laser level can be surprisingly straightforward and rewarding. This comprehensive guide will walk you through the basics of using this tool, its applications, and provide valuable tips to help you get started on your projects with confidence.

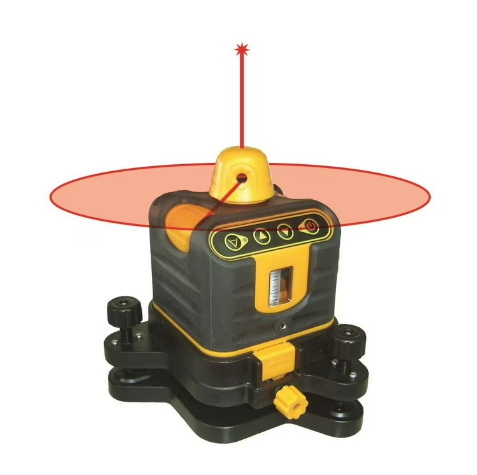

The Johnson manual rotary laser level, specifically the model 40-6502, is designed to project a horizontal or vertical laser plane for various leveling tasks[2]. This tool is particularly useful for indoor and outdoor applications, offering features that make it adaptable to different job requirements.
- Manual-leveling capability: The device can be manually leveled in both horizontal and vertical planes, giving users precise control over their measurements[2].
- Large and small scan modes: These modes simulate a laser line, allowing for versatile use in different scenarios[2].
- Simultaneous 90° split beam: When used in vertical mode, this feature adds extra functionality for layout work[2].
- Adjustable scan line: The laser line can be moved clockwise or counter-clockwise, providing flexibility in positioning[2].
- Variable rotation speed: Users can adjust the speed of the laser rotation to suit their specific needs[2].
Setting up your Johnson manual rotary laser level correctly is crucial for accurate results. Here's a step-by-step guide to get you started:
1. Choose a stable surface: Place the laser level on a flat, stable surface or mount it on a tripod using the 5/8" - 11 screw thread[3].
2. Power on: Insert the 4 "AA" alkaline batteries included with the device and turn it on[2].
3. Select the mode: Choose between horizontal or vertical leveling based on your project requirements[2].
4. Manual leveling: Use the bubble vials on the device to manually level it. Adjust the feet or tripod until the bubbles are centered[3].
5. Set rotation speed: Select your desired rotation speed using the controls on the device. The Johnson 40-6502 offers variable speed options[2].
6. Adjust scan mode: If needed, switch between large and small scan modes to create a laser line of the appropriate length for your task[2].
The Johnson manual rotary laser level is a versatile tool with numerous applications in construction, renovation, and DIY projects. Here are some common uses:
The laser level can project a perfectly level line around a room, making it easy to mark reference points for installing a drop ceiling.
By projecting a grid pattern, the laser level helps ensure that tiles are laid in straight lines and at right angles.
The vertical beam function allows for easy alignment of multiple picture frames or shelves along a wall.
Outdoor projects benefit from the laser level's long-range capabilities, helping to establish consistent slopes for proper drainage.
Ensuring cabinets are level and aligned is crucial for both functionality and aesthetics. The laser level simplifies this process significantly.
1. Familiarize yourself with the manual: The Johnson manual rotary laser level comes with a detailed instruction manual. Take the time to read it thoroughly before starting your project[3].
2. Practice on small projects: Before tackling large-scale jobs, practice using the laser level on smaller, less critical tasks to build confidence and skill.
3. Use in optimal conditions: For best results, use the laser level in conditions with good visibility. Bright sunlight can make the laser beam difficult to see, so consider using it during overcast days or in the early morning or late afternoon when working outdoors.
4. Regularly check calibration: While the Johnson manual rotary laser level is designed to maintain its accuracy, it's good practice to periodically check its calibration, especially if it has been transported or bumped[3].
5. Utilize the detector: For outdoor use or in bright conditions, the laser detector (included in some kits like the 40-6516) can help you locate the laser beam more easily[5].
As you become more comfortable with your Johnson manual rotary laser level, you can explore more advanced techniques:
While the Johnson 40-6502 is primarily a manual-leveling tool, you can use it to set slight grades for drainage projects. This involves carefully tilting the laser to the desired angle and using a grade rod to measure the slope.
In vertical mode, the laser can project a perfectly plumb line, useful for tasks like installing wall tiles or checking the verticality of walls and columns.
The 90° split beam feature in vertical mode is excellent for layout work, allowing you to create perfect right angles for room layouts or large-scale construction projects[2].
To ensure your Johnson manual rotary laser level continues to perform optimally, follow these maintenance tips:
1. Clean regularly: Use a soft, dry cloth to clean the laser aperture and body of the device after each use.
2. Store properly: When not in use, store the laser level in its carrying case in a cool, dry place.
3. Handle with care: Despite its rugged construction, avoid dropping or jarring the laser level to maintain its accuracy.
4. Check batteries: Regularly check and replace batteries to ensure consistent performance.
While the Johnson 40-6502 manual rotary laser level is an excellent tool for beginners, it's worth comparing it to other models in the Johnson range:
This model offers self-leveling capabilities in the horizontal plane, making it even easier to set up for certain tasks[1]. It features:
- Self-leveling in the horizontal plane
- Manual-leveling in the vertical plane
- Visual and audible alarms when beyond leveling range
- Adjustable rotational speeds of 200, 400, or 600 RPM[1]
This kit includes additional accessories for enhanced functionality:
- Self-leveling rotary laser level
- Detector with 9V battery and clamp
- Tinted glasses
- Hard shell carrying case[5]
While these self-leveling models offer some advantages, the manual 40-6502 model provides greater control and can be more suitable for certain tasks, especially for users who prefer manual adjustment.
To better understand how the Johnson manual rotary laser level can be used in real-world scenarios, let's look at a couple of case studies:
John, a homeowner, decided to renovate his basement. He used the Johnson 40-6502 manual rotary laser level for several tasks:
1. Leveling the floor: John used the laser to identify high and low spots in the concrete floor before applying self-leveling compound.
2. Installing drywall: The laser helped ensure all wall studs were perfectly plumb before attaching drywall sheets.
3. Hanging a drop ceiling: The horizontal laser line made it easy to mark consistent heights for the ceiling grid around the room's perimeter.
Sarah, a landscape designer, used the Johnson manual rotary laser level for a backyard makeover project:
1. Grading the yard: Sarah used the laser to establish a slight grade away from the house for proper drainage.
2. Installing a patio: The laser helped ensure the patio pavers were laid at a consistent level.
3. Building a retaining wall: The vertical beam function was crucial in ensuring each course of the retaining wall was level and properly aligned.
Sarah appreciated the versatility of the manual rotary laser level, especially its ability to work effectively outdoors over long distances.
The Johnson manual rotary laser level, particularly the 40-6502 model, is an excellent tool for beginners venturing into projects requiring precise leveling and alignment. Its manual-leveling capability, versatile features, and rugged design make it suitable for a wide range of indoor and outdoor applications.
While it may take some practice to master, the learning curve is not steep, and the benefits of using this tool far outweigh the initial challenges. By following the setup instructions, understanding its features, and applying the tips provided in this guide, beginners can confidently tackle various projects with professional-level accuracy.
The Johnson 40-6502 manual rotary laser level has an accuracy of ±1/4" at 100 feet, which is suitable for most construction and DIY projects[7].
Yes, the Johnson manual rotary laser level can be used outdoors. It has a range of up to 800 feet in diameter with a detector, making it suitable for various outdoor applications[7].
The battery life of a Johnson manual rotary laser level varies depending on usage, but typically, a set of 4 "AA" alkaline batteries can last approximately 20 hours of continuous use[3].
A manual laser level requires the user to adjust the level manually using bubble vials, while a self-leveling laser level automatically adjusts itself within a certain range. Manual levels like the Johnson 40-6502 offer more control and can be used in situations where self-leveling models might struggle[1][2].
Yes, the Johnson manual rotary laser level is suitable for professional use. Its accuracy, durability, and versatile features make it a valuable tool for contractors, builders, and other professionals in the construction industry[7].
