The Alton Rotary Laser Level is a game-changer for construction professionals and DIY enthusiasts alike. This tool offers unparalleled accuracy and efficiency, making leveling and alignment tasks simpler than ever before. In this comprehensive guide, we'll explore how to set up the alton rotary laser level for accurate alignment, ensuring your projects are perfectly level and precisely aligned every time.
Before diving into the setup process, it's essential to understand why the alton rotary laser level stands out from the competition. Traditional leveling methods, such as manual levels, can be time-consuming and prone to human error[1]. The alton rotary laser level eliminates these issues by providing a highly accurate, self-leveling solution that saves time and reduces the likelihood of mistakes[1].
Key Benefits:
- Accuracy: The alton rotary laser level offers exceptional accuracy, ensuring precise measurements for all your projects[8].
- Efficiency: With its self-leveling capabilities, this laser level significantly speeds up the leveling process[4].
- Versatility: Suitable for a wide range of applications, from construction and carpentry to landscaping and interior design[8].
- Ease of Use: Designed for both professionals and DIYers, the alton rotary laser level is incredibly easy to set up and operate[1].

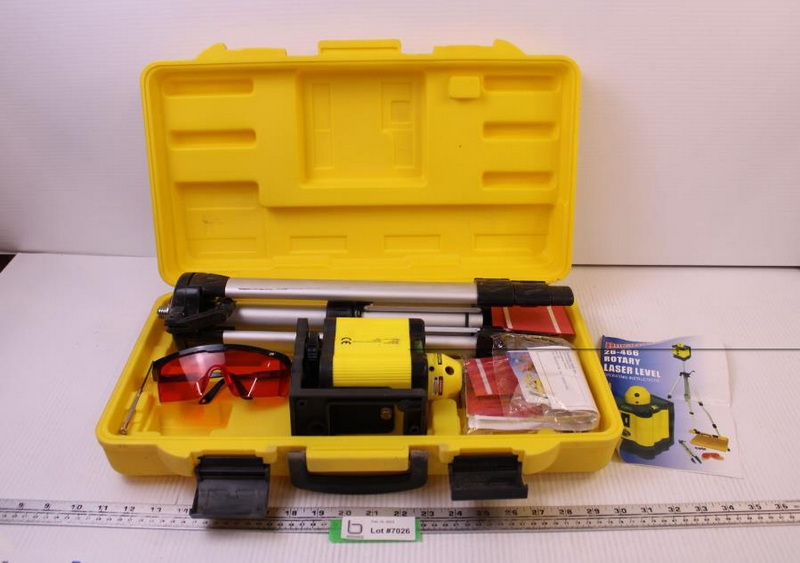

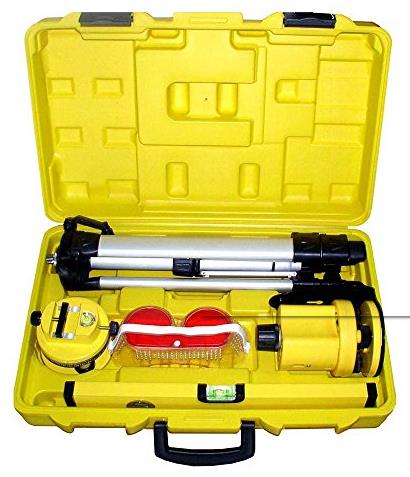

Upon receiving your alton rotary laser level, the first step is to unbox and inspect all the components. Ensure that you have the following items:
- Alton Rotary Laser Level Unit: The main device that emits the laser beam.
- Receiver: A device that detects the laser beam, especially useful in bright daylight[1].
- Tripod: A stable base to mount the laser level[1].
- User Manual: A comprehensive guide to understanding the device's features and operation.
- Batteries: Power source for the laser level and receiver[1].
- Carrying Case: For safe storage and transportation.
Check each component for any signs of damage during shipping. If anything is missing or damaged, contact the manufacturer or retailer immediately.
The tripod provides a stable and adjustable base for your alton rotary laser level. Follow these steps to set it up correctly:
1. Choose a Flat Surface: Select a location that is as level as possible. This will minimize the amount of adjustment needed later[1].
2. Extend the Legs: Unlock the tripod legs and extend them to the desired height. Ensure that all legs are securely locked in place[1].
3. Position the Tripod: Spread the legs to create a stable base. The tripod should be level both vertically and horizontally[7].
4. Secure the Tripod: Some tripods come with pointed feet for use on soft ground. Push the feet into the ground to secure the tripod's position.
Once the tripod is set up, mount the alton rotary laser level onto it:
1. Locate the Mounting Screw: Find the mounting screw on the top of the tripod[7].
2. Attach the Laser Level: Align the mounting hole on the alton rotary laser level with the screw on the tripod.
3. Secure the Connection: Screw the laser level onto the tripod until it is firmly attached. Do not overtighten, as this could damage the device.
Calibration is a critical step to ensure accurate alignment. Here's how to calibrate your alton rotary laser level:
1. Placement: Place the alton rotary laser level on the tripod in a room with two walls that oppose each other[1].
2. Distance: Position the unit 2.5 cm from one wall and at least 50 cm from the other wall[1].
3. Alignment: Align the laser along the axis of the vial (bubble) you want to level. The vial should point to both walls[1].
4. Adjustment: There are usually two screws on your device that correspond to each vial. Tune these screws until the device is level along the two axes. Both vials should show bubbles resting between the two black lines[1].
5. Power On: Turn on the laser and let it self-level. Most rotating lasers will self-level if they are positioned within four degrees of level[1].
6. Visual Marking: Visually mark where the laser hits the closest and furthest walls[1].
7. Reposition: Reposition the laser 2.5 cm from the furthest wall[1].
8. Level and Adjust: Level the laser and adjust the height (if using a tripod), allowing your beam to correspond with the mark you made on the other wall[1].
9. Measure the Difference: Circle back to the first wall and measure the difference between the first mark and the laser line[1].
10. Correcting Calibration: If the difference is larger than your level's specified accuracy, adjust the laser, so it beams in the middle of the two marks you measured (this mark is true level). Then, remove the screw cap for the bubble vial and adjust the vial until it is level[1].
In bright daylight, the laser beam may be difficult to see with the naked eye[1]. The receiver helps detect the laser beam, ensuring accurate measurements in any lighting conditions:
1. Insert Batteries: Install the batteries into the receiver[1].
2. Power On: Turn on the receiver.
3. Select Mode: Choose the appropriate mode on the receiver, depending on your specific needs[1].
4. Scan for Laser: Move the receiver up and down until it detects the laser beam. The receiver will emit an audible tone or display an indicator to signal detection[1].
5. Mark the Level: Once the laser beam is detected, mark the level on your surface.
The alton rotary laser level can be used for a variety of applications. Here are a few examples:
- Horizontal Leveling: For tasks such as setting foundations, installing floors, or hanging ceilings[8].
1. Set up the laser level on the tripod and ensure it is level[1].
2. Use the receiver to find the laser beam and mark the level at various points[1].
3. Connect the marks to create a level line.
- Vertical Alignment: For tasks such as aligning walls, posts, or fences[6].
1. Set up the laser level and rotate it to project a vertical line[1].
2. Use the receiver to ensure the vertical line is plumb[1].
3. Adjust the alignment as needed.
- Slope Matching: Some alton rotary laser level models allow you to set a slope for grading or drainage purposes.
1. Consult the user manual to understand how to set the slope function[1].
2. Adjust the laser level to the desired slope angle.
3. Use the receiver to mark the sloped line.
- Check Battery Levels: Ensure that both the laser level and receiver have sufficient battery power[1]. Low battery levels can affect accuracy.
- Protect from Elements: Avoid using the alton rotary laser level in heavy rain or extreme temperatures.
- Regular Calibration: Periodically calibrate the laser level to maintain accuracy[1].
- Stable Setup: Ensure the tripod is stable and on a level surface[7].
- Clear Line of Sight: Ensure there are no obstructions between the laser level and the receiver.
Precision laser alignment, particularly with tools like the alton rotary laser level, offers numerous benefits across various industries[6]:
- Reduced Downtime: Accurate alignment minimizes the risk of machinery故障, reducing downtime and increasing productivity[6].
- Cost Savings: By preventing breakdowns and extending the lifespan of equipment, laser alignment saves your company money[6].
- Improved Efficiency: Properly aligned machinery operates more efficiently, consuming less energy and resources[6].
- Enhanced Safety: Accurate alignment reduces the risk of accidents and injuries in the workplace[6].
Setting up the alton rotary laser level for accurate alignment is a straightforward process that can significantly enhance the precision and efficiency of your projects. By following the step-by-step guide outlined in this article, you can ensure that your laser level is properly calibrated and ready for use in various applications. Whether you're a construction professional or a DIY enthusiast, the alton rotary laser level is an invaluable tool for achieving perfectly level and precisely aligned results.
It is recommended to calibrate your alton rotary laser level before each major project or if you suspect it has been bumped or mishandled[1]. Regular calibration ensures the highest level of accuracy.
Yes, but the laser beam may be difficult to see with the naked eye[1]. Using the receiver will help detect the laser beam in bright conditions.
The battery life varies depending on the model and usage[1]. On average, you can expect between 20 to 40 hours of continuous use. Always check the battery levels before starting a project.
Most alton rotary laser level models are water-resistant to some extent, but it is essential to check the manufacturer's specifications for your specific model[1]. Avoid using the laser level in heavy rain or submerged conditions.
The alton rotary laser level is versatile and suitable for a wide range of projects, including construction, carpentry, landscaping, interior design, and more[8]. It is particularly useful for tasks that require precise leveling and alignment over long distances.
