The Porter Cable Rotary Laser Level is a highly regarded tool in construction and DIY projects, known for its precision and ease of use. This article will guide you through the setup and operation of the Porter Cable Rotary Laser Level, providing a comprehensive understanding of its features, benefits, and practical applications.
A rotary laser level is a tool that projects a laser beam in a 360-degree horizontal or vertical plane. This makes it invaluable for tasks requiring precise leveling over large distances, such as framing, grading, and installing cabinets. Unlike traditional levels that require manual adjustments and are limited to smaller areas, rotary laser levels provide a continuous reference line, making them ideal for larger projects.
- Self-Leveling Mechanism: Automatically adjusts to ensure accuracy. This feature saves time and reduces the risk of human error.
- Durability: Built to withstand tough job site conditions. The rugged design ensures that it can handle drops and rough handling.
- Range: Effective over long distances, making it suitable for various applications. Most models can operate effectively up to 1,500 feet with the use of a receiver.
- Versatility: Can be used for both indoor and outdoor projects. Whether you are working in bright sunlight or dimly lit basements, the Porter Cable Rotary Laser Level adapts to your needs.
Setting up your Porter Cable Rotary Laser Level is straightforward. Follow these steps to ensure a smooth setup:
Before starting, ensure you have the following:
- Porter Cable Rotary Laser Level
- Tripod (if applicable)
- Receiver (if included)
- Batteries (if not rechargeable)
- Measuring tape
- Marking tools (pencil or chalk)
Choose a flat surface for setup. Clear any obstacles that may interfere with the laser beam. If working outdoors, ensure that you have a clear line of sight for the laser beam to project accurately.

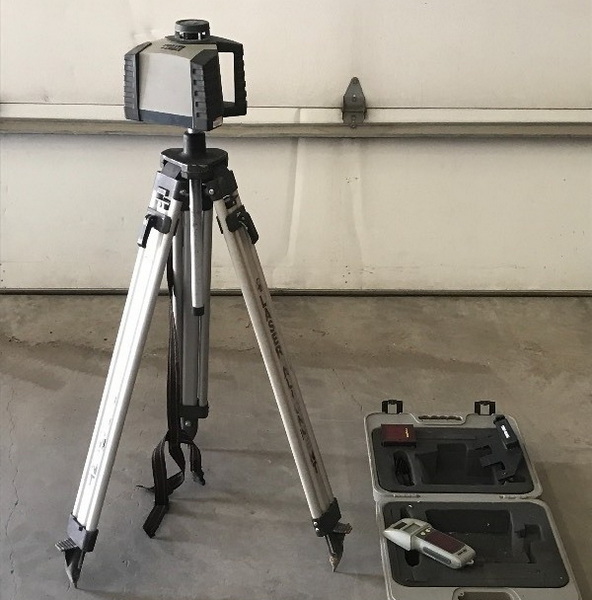

If your model requires a tripod:
- Extend the tripod legs to your desired height.
- Securely attach the laser level to the tripod mount. Ensure it is tightly fastened to prevent any movement during operation.
Insert batteries or connect to power. Turn on the device and allow it to self-level. Most models will indicate when they are level with a visual or auditory signal.
Depending on your project, you may need to adjust settings such as rotation speed or beam type (horizontal/vertical). Familiarize yourself with your specific model's controls; some may include additional features like slope adjustment for grading tasks.
Once set up, using the Porter Cable Rotary Laser Level is intuitive.
Identify a benchmark point from which you will measure other points. This could be an existing structure or a marked point on the ground. It's crucial that this reference point is accurate since all measurements will be based on it.
Activate the laser beam and observe its projection on nearby surfaces. You can use this line as a reference for leveling. If your model allows for both horizontal and vertical projections, switch between them as needed for different tasks.
For outdoor use or longer distances, employ a receiver to detect the laser beam more effectively. The receiver will beep or light up when it detects the laser beam, allowing you to work at greater distances without losing accuracy.
As you move around your work area, mark points where the laser beam intersects with your reference height using your marking tools. This step is essential for ensuring that all elements of your project align correctly.
Periodically check your measurements against your reference point to ensure ongoing accuracy throughout your project. If discrepancies arise, recalibrate your device by rechecking its level status.
The versatility of the Porter Cable Rotary Laser Level allows it to be used in various applications:
When framing walls, maintaining straight lines is crucial for structural integrity and aesthetics. The rotary laser level helps ensure that each stud is aligned perfectly with others, preventing future issues with drywall installation or finishing.
Cabinet installation requires precise alignment to ensure doors open correctly and gaps are uniform. By projecting a level line across multiple cabinets at once, you can achieve consistent heights without repeated measurements.
For landscaping projects that require grading land for proper drainage or aesthetic purposes, using a rotary laser level allows you to create slopes accurately over large areas without extensive manual measuring.
When installing fences, ensuring each post is at an equal height prevents unsightly gaps or unevenness in appearance. The rotary laser level provides a continuous reference line that simplifies this process significantly.
For tiling floors or walls, achieving a level surface is critical for preventing water pooling and ensuring aesthetic appeal. The rotary laser level aids in marking consistent heights across large areas.
To maximize your experience with the Porter Cable Rotary Laser Level, consider these tips:
- Check Battery Levels Regularly: Ensure batteries are charged before starting large projects.
- Protect from Dust and Debris: Store in a protective case when not in use to avoid damage.
- Use Proper Eye Protection: Although laser levels are generally safe, it's good practice to avoid direct eye exposure.
- Practice Before Major Projects: Familiarize yourself with settings and operations on smaller tasks before tackling larger projects.
The Porter Cable Rotary Laser Level stands out as an essential tool for both professionals and DIY enthusiasts alike. Its ease of setup and use, combined with its accuracy and versatility, make it an excellent choice for various leveling tasks. With just a few simple steps, anyone can effectively utilize this tool to achieve professional results in their projects.
The range typically varies by model but can reach up to 1,500 feet with proper conditions when using a receiver.
Yes, it is designed for both indoor and outdoor use; however, using a receiver enhances visibility in bright conditions.
Regularly check battery levels, clean the lens, and store it in a protective case when not in use to maintain accuracy.
Yes, most models are lightweight and come with cases for easy transportation between job sites.
Ensure that it is properly leveled during setup; if issues persist, check for obstructions or damage to the device.
