The Pittsburgh Rotary Laser Level is a versatile tool that simplifies the process of achieving precise measurements and leveling in construction and DIY projects. This article will guide you through the setup and usage of the Pittsburgh Rotary Laser Level, ensuring you can maximize its potential for your projects.

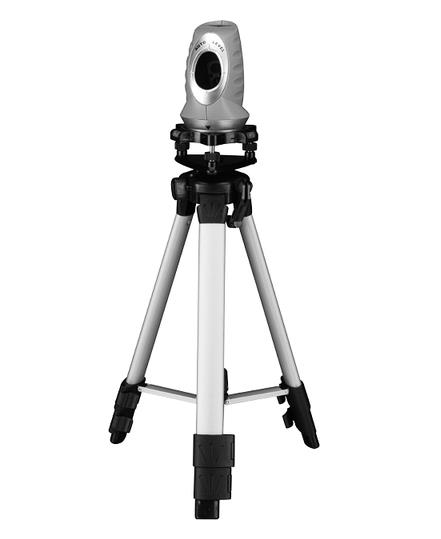

The Pittsburgh Rotary Laser Level is designed to project a 360-degree laser beam, providing a perfectly level reference line across an entire work area. This feature makes it essential for tasks such as:
- Installing drop ceilings
- Laying tile
- Hanging cabinets
- Grading outdoor spaces
With its motorized rotation, the laser head ensures consistent and accurate leveling over long distances, making it a favorite among professionals and DIY enthusiasts alike.
- 360-Degree Rotating Head: Projects straight laser lines for precise horizontal or vertical measurements.
- Self-Leveling Capability: Automatically adjusts within a specified range to ensure accurate readings.
- Adjustable Rotation Speed: Allows users to choose between single, intermittent, or continuous laser points.
- Horizontal and Vertical Modes: Facilitates various applications depending on the project requirements.
- Included Tripod: For easy setup and stability during use.
Setting up your Pittsburgh Rotary Laser Level is straightforward. Follow these steps to ensure proper installation:
1. Choose a Suitable Location:
- Select a stable surface or use the included tripod for optimal positioning.
2. Install Batteries:
- Open the battery compartment and insert four AA batteries, ensuring correct polarity.

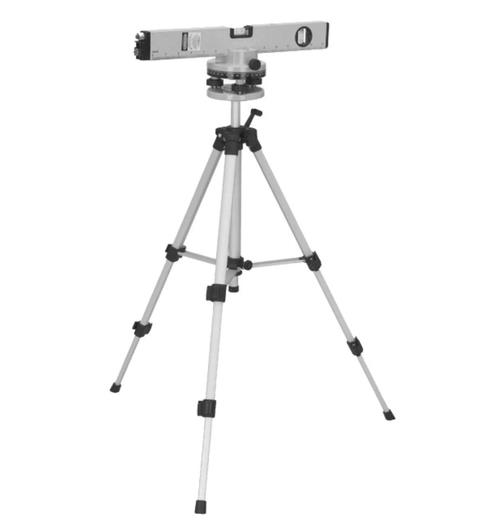

3. Mount on Tripod (if using):
- Attach the laser level to the tripod by threading the bolt at the top of the tripod through the hole at the center of the laser level's base.
4. Level the Unit:
- Use the tri-brack adjustment screws to level the laser. Adjust until the bubbles in the vial levels are centered.
5. Unlock the Pendulum:
- Push the pendulum lock to free it, allowing self-leveling.
6. Power On:
- Turn on the laser level using the power switch.
7. Allow Stabilization:
- Wait for 4-6 seconds for the laser lines to stabilize before beginning any measurements.
Once your Pittsburgh Rotary Laser Level is set up, you can use it for various applications:
To use your rotary laser for horizontal leveling:
- Set up your laser level in horizontal mode.
- Activate the laser by turning on the power/rotation control switch.
- Adjust rotation speed as needed using the rotation control switch.
- Use the projected laser line as a reference for leveling across your work area.
For vertical leveling tasks:
- Position your laser level at one end of your area.
- Turn on the vertical laser line.
- Use this line as a plumb reference for tasks like wall tiling or door frame installation.
To establish equal heights across different areas:
- Align the laser beam with a reference object's height.
- Mark where the beam hits other objects to ensure uniformity across distances.
When grading land or ensuring drainage:
- Set up your laser level near one end of your grading area.
- Measure distances from the laser beam to various points on your surface to identify slopes or high/low spots.
The versatility of this tool extends beyond basic leveling tasks. Here are some advanced applications that can enhance your project outcomes:
For landscaping projects, a rotary laser level can help you achieve precise elevations when creating features such as retaining walls, flower beds, or patios. By establishing a consistent grade, you can ensure proper drainage and aesthetics in your outdoor space.
When framing walls in new construction or remodeling projects, using a rotary laser level allows you to ensure that all studs are perfectly aligned vertically and horizontally. This precision helps in achieving straight walls and prevents future issues with drywall installation or finishing work.
For installing fences, particularly long stretches where accuracy is crucial, a rotary laser level can help you maintain consistent height across all posts. This application ensures that your fence not only looks good but also functions properly over time without sagging or misalignment.
When installing drop ceilings or other ceiling fixtures, using a rotary laser level helps mark out lines that ensure even spacing and alignment throughout your installation area. This method saves time and reduces errors during installation.
To ensure accuracy while using your Pittsburgh Rotary Laser Level, consider these tips:
- Regularly check calibration before each use.
- Use a laser detector for outdoor applications or in bright light conditions.
- Clean lens and vial levels regularly to prevent dust accumulation.
- Always engage pendulum lock when transporting to prevent damage.
If you encounter problems with your Pittsburgh Rotary Laser Level, here are some common issues and troubleshooting tips:
1. Laser Doesn't Turn On:
- Check batteries and ensure they are installed correctly.
2. Weak Laser Line:
- Clean lens and check for obstructions.
3. Self-Leveling Feature Not Working:
- Ensure pendulum lock is disengaged and unit is within self-leveling range (typically ±6 degrees).
While using a rotary laser level is generally safe, consider these precautions:
- Avoid looking directly into the laser beam; it can cause eye damage.
- Ensure that all personnel in proximity are aware of ongoing operations involving lasers.
- Store your device in its case when not in use to protect it from damage.
The Pittsburgh Rotary Laser Level is an invaluable tool that enhances precision and efficiency in various construction and DIY projects. By following proper setup procedures and understanding how to utilize its features effectively, users can achieve professional-quality results with ease. Its versatility makes it suitable for both simple tasks like hanging pictures to complex projects such as framing walls or grading land.
Calibration should be checked before each use, with full calibration recommended at least once a year or if inaccuracies are suspected.
Yes, it can be used outdoors; however, using a laser detector in bright conditions is advised for better visibility.
It can project a beam up to 100 feet under ideal conditions, but effective range may vary based on lighting conditions and whether a detector is used.
Locate and loosen the battery cover knob, replace four AA batteries following polarity markings, then re-secure the cover.
Ensure that the pendulum lock is disengaged and that it's within its self-leveling range; consult user manual if issues persist.
