Automatic self-leveling rotary laser levels are sophisticated tools used extensively in construction, surveying, and landscaping to ensure precise leveling and alignment. These devices project a 360-degree laser beam, creating a continuous plane of light that serves as a reference for various tasks such as laying foundations, installing drywall, and setting tile layouts. In this article, we will delve into the working principle of automatic self-leveling rotary laser levels, their applications, and how they enhance efficiency in construction projects.
Rotary laser levels are designed to project a precise laser beam that rotates at high speed, typically between 600 to 1,000 revolutions per minute. This rotation creates a continuous 360-degree plane of light, which can be either horizontal or vertical, depending on the device's orientation. The laser beam is emitted by a diode and dispersed by a rotating prism or mirror, ensuring full coverage of the work area.
The core of an automatic self-leveling rotary laser level is its self-leveling mechanism. Most models use an internal pendulum system influenced by gravity to ensure the device remains level. When the device is placed on a surface, the pendulum seeks equilibrium, and sensors detect any deviation from true level. These sensors then send signals to internal motors, which adjust the laser diode's position until it is perfectly level.
In addition to the pendulum system, some advanced models employ electronic self-leveling technology. This uses electronic sensors and servo motors to achieve higher accuracy and a larger self-leveling range, often up to 5-10 degrees off-level. Electronic self-leveling rotary laser levels are highly accurate, typically maintaining an accuracy of 1/16 inch per 100 feet, making them ideal for large-scale construction projects.
Rotary laser levels are versatile tools used in various applications:
- Construction: They are essential for establishing horizontal and vertical reference planes, which helps in leveling foundations, installing cabinets, and aligning partitions.
- Landscaping: Useful for grading and site preparation, ensuring that slopes and grades are accurately set.
- Surveying: Provides a precise reference for measuring elevations and alignments over long distances.
Using a rotary laser level involves several steps:
1. Setup: Place the device on a stable surface or tripod. Ensure it is roughly level using the built-in bubble vials.
2. Self-Leveling: Turn on the device and allow it to self-level. This process is automatic and usually takes a few seconds.
3. Projection: Once leveled, the laser will project a 360-degree beam. Adjust the rotation speed as needed for visibility.

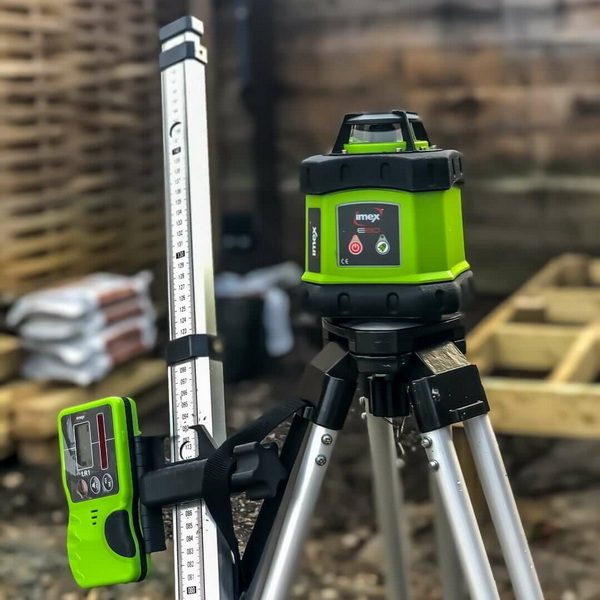

4. Measurement: Use a laser detector to capture the beam, especially in bright conditions. Mark points on your work surface for accurate alignment.
Rotary laser levels offer several advantages over traditional leveling tools like spirit levels or transit levels. They provide a continuous reference plane over a wide area, reducing the need for multiple setups and manual adjustments. This makes them particularly useful for large-scale projects where efficiency and accuracy are crucial.
Proper calibration is essential to ensure the accuracy of a rotary laser level. Calibration involves checking the horizontal and vertical beams for consistency and performing a squaring test to verify that the beams form a perfect 90-degree angle. Regular maintenance includes cleaning the device and ensuring that all components are free from damage.
When using rotary laser levels, several common mistakes can lead to inaccuracies:
- Setting Out of Range: Ensure the laser is within its self-leveling range to avoid faulty readings.
- Improper Calibration: Always calibrate the device according to the manufacturer's instructions.
- Ignoring Surface Stability: Place the device on a stable surface to prevent vibrations affecting accuracy.
- Using in Direct Sunlight: Use a laser detector to enhance visibility in bright conditions.
- Overlooking Battery Life: Check battery levels before use to avoid inconsistent projections.
Some rotary laser levels come with advanced features such as remote control, dual slopes, and multiple laser colors. For instance, the Lasertec HV3R offers a bright red laser beam, electronic self-leveling, and a scan mode to focus the beam in specific directions. This model is suitable for a wide range of applications, from construction to landscaping.
Rotary laser levels may encounter issues such as low battery voltage, overheating, motor or gear failure, calibration issues, and damaged parts. Troubleshooting these problems involves checking battery levels, allowing the device to cool, cleaning or replacing faulty components, and recalibrating the device.
Automatic self-leveling rotary laser levels are indispensable tools in modern construction and surveying. Their ability to project a precise 360-degree laser beam ensures accurate leveling and alignment, significantly enhancing efficiency and reducing errors on job sites. Whether you're working on a small DIY project or a large commercial building, these devices provide a reliable reference point that can be easily detected using laser detectors.
Automatic self-leveling rotary laser levels offer the advantage of quick setup and high accuracy, reducing the time and effort required for manual leveling. This makes them ideal for large-scale projects where precision and efficiency are critical.
The self-leveling mechanism in rotary laser levels typically uses an internal pendulum system influenced by gravity. Sensors detect any deviation from true level and adjust the laser diode's position until it is perfectly level.
Rotary laser levels are commonly used in construction for tasks like leveling foundations and installing cabinets, in landscaping for grading and site preparation, and in surveying for measuring elevations and alignments.
Laser detectors are used to capture the laser beam, especially in bright conditions. They provide visual and audible indicators to guide the user in finding the exact level plane, making it easier to mark points accurately.
Calibration is crucial for ensuring the accuracy of rotary laser levels. It involves checking the consistency of the horizontal and vertical beams and performing a squaring test to verify that the beams form a perfect 90-degree angle.
