Vertical rotary mirror laser levels are essential tools in construction, surveying, and various DIY projects. They provide precise leveling and alignment, making them invaluable for tasks that require accuracy over large distances. This article will delve into the workings of a vertical rotary mirror laser level, its components, applications, advantages, and best practices for use, while also providing visual aids and video references to enhance understanding.
A rotary laser level is a device that emits a laser beam to create a horizontal or vertical plane of light. This plane can be viewed around a room or outdoor space, allowing for accurate leveling and alignment. The device is commonly used by construction professionals, landscapers, and DIY enthusiasts to ensure surfaces are level and aligned correctly.

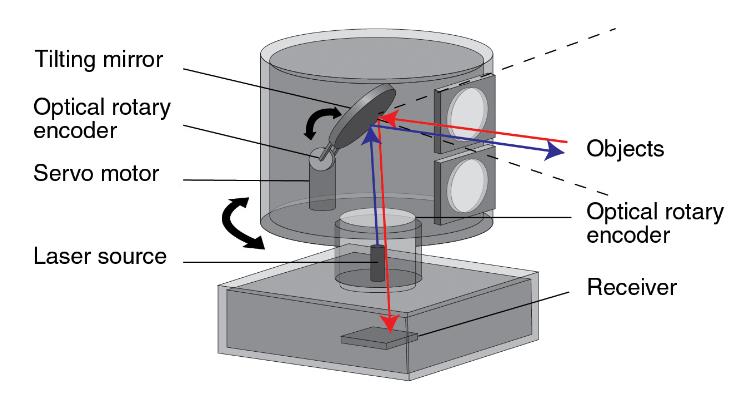

1. Laser Diode: The core component that emits the laser beam. It produces a highly focused and straight beam of light.
2. Rotating Prism or Mirror: This component scatters the laser beam in a circular pattern, creating a 360-degree plane of light.
3. Self-Leveling Mechanism: Most rotary lasers have an internal pendulum system that automatically adjusts the laser's position to maintain levelness.
4. Detectors/Receivers: Used to extend the range of the laser beam; these devices capture the laser's light across larger distances.
5. Control Panel: Allows users to adjust settings like beam brightness and rotation speed.
The operation of a vertical rotary mirror laser level is based on several key principles:
The process begins when the laser diode emits a focused beam of light. This beam is usually red or green, with green being more visible in bright conditions.

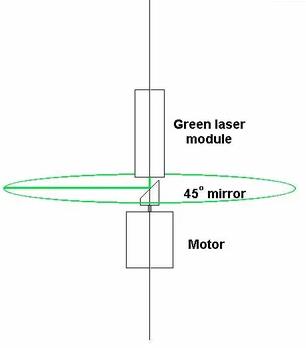

The rotating prism or mirror takes this straight beam and spins it around at high speeds (typically between 200 to 1,100 RPM). This rotation creates a continuous horizontal or vertical plane of light that can be projected onto walls, floors, or ceilings.
To maintain accuracy, many rotary laser levels feature an internal pendulum system. When the device is placed on an uneven surface, the pendulum adjusts until it finds a level position within its specified range (usually ±5 degrees). If it exceeds this range, an error signal is activated.
Rotary laser levels can be categorized based on their functionality:
- Manual vs. Automatic (Self-Leveling): Manual levels require user intervention to ensure they are level, while automatic models self-adjust.
- Horizontal vs. Vertical vs. Dual Grade: Depending on job requirements, users can choose models that project horizontal lines, vertical lines, or both.
Vertical rotary laser levels are versatile tools used in various fields:
- Construction Projects: Essential for laying foundations, erecting walls, and ensuring overall structural integrity.
- Landscaping: Useful for grading land and determining slopes for drainage purposes.
- Interior Design: Ideal for installing cabinets, shelves, and other fixtures with precision.
- Ceiling Installations: Ensures drop ceilings and light fixtures are perfectly aligned.
Beyond these general uses, rotary laser levels can be applied in more specialized contexts:
- Framing and Drywall Installation: They provide an accurate reference point for wall studs and other structural elements during framing work.
- Flooring Projects: Commonly used for laying tile and hardwood flooring, ensuring that surfaces are level and consistent throughout the space.
- Cabinetry Installation: They help ensure cabinets are installed level and flush against walls, which is critical for aesthetics and functionality.
- Surveying Land: Surveyors utilize rotary laser levels to measure land accurately, defining boundaries and ensuring structures are built correctly according to plans.
- Foundation Work: Ensuring that building foundations are level is crucial for structural integrity; rotary lasers help achieve this with high precision.
- Pool Installation: They assist in ensuring swimming pools are level relative to surrounding landscapes, which is essential for proper drainage and aesthetics.
Utilizing a vertical rotary mirror laser level offers several benefits:
- Accuracy: Provides precise measurements over long distances compared to traditional leveling tools.
- Efficiency: Speeds up tasks by allowing multiple measurements to be taken simultaneously without needing multiple people.
- Ease of Use: Most models are user-friendly with clear instructions for setup and operation.
- Versatility: Suitable for various applications from construction to interior design projects.
In addition to these benefits:
- Long Range Capability: Many rotary lasers can project lines up to 2,000 feet in diameter when used with detectors outdoors, making them ideal for large construction sites or outdoor projects where visibility is critical.
- Durability: Many models are built to withstand harsh conditions often found on job sites, including dust and moisture resistance features that enhance longevity.
- Advanced Features: Higher-end models may include features like slope setting capabilities (single or dual slope), electronic self-leveling mechanisms that provide even greater accuracy, and remote control options for ease of use from a distance.
To effectively use a vertical rotary laser level, follow these steps:
1. Choose a Flat Surface: Place the level on a stable surface or tripod for best results.
2. Turn On the Device: Allow time for self-leveling if applicable (this usually takes less than one minute).
3. Mark Reference Points: Use the emitted laser line to mark points on walls or floors where alignment is needed.
4. Adjust as Necessary: If using manual leveling, make adjustments based on bubble vials until level is achieved.
5. Utilize Detectors for Long Distances: For larger areas where visibility may be compromised (especially outdoors), use detectors to ensure you're capturing the laser signal accurately.
To maximize the effectiveness of your rotary laser level:
- Always calibrate your device before use to ensure accuracy.
- Use appropriate detectors when working outdoors or in bright conditions where visibility may be limited.
- Regularly check battery levels if your device relies on batteries; consider using rechargeable options for convenience.
- Protect your equipment from extreme weather conditions by storing it properly when not in use.
- Familiarize yourself with your specific model's features by consulting the user manual; different models may have unique functionalities that enhance usability.
Even experienced users can make mistakes when using rotary laser levels. Here are some common pitfalls to avoid:
- Failing to calibrate before starting work can lead to inaccurate measurements.
- Not using detectors outdoors can result in missing the projected line entirely due to sunlight interference.
- Placing the laser on an unstable surface can cause fluctuations in readings.
- Ignoring battery life warnings may result in unexpected downtime during critical tasks.
- Forgetting to secure all settings before moving the device can lead to errors during transport or setup at new locations.
Vertical rotary mirror laser levels are indispensable tools in construction and design industries due to their precision and efficiency. Understanding how they work—from emitting a rotating beam of light to self-leveling mechanisms—allows users to maximize their potential in various applications. As technology advances, these tools continue to evolve, providing even greater accuracy and ease of use for professionals and DIY enthusiasts alike.
Manual rotary laser levels require user adjustments to ensure they are level; automatic models self-level using internal mechanisms like pendulums or motors for greater accuracy.
Yes, many rotary laser levels are designed for outdoor use; however, visibility may be affected by sunlight. Using detectors can help capture the beam even in bright conditions.
Most rotary lasers can project beams up to 2,000 feet in diameter when used with appropriate detectors or receivers outdoors.
Regularly check your device against known reference points or use calibration methods outlined in the user manual to ensure it remains within tolerance specifications.
Keep your device clean and free from dust; check battery levels regularly; recalibrate as needed based on usage frequency and environmental conditions.
