A Dewalt rotary laser level is an indispensable tool for professionals and DIY enthusiasts who require precise leveling and alignment over long distances. Whether you are working on construction sites, landscaping projects, or interior renovations, understanding how to properly set up and use this tool can dramatically improve your accuracy and efficiency. This comprehensive guide will walk you through the step-by-step process of using a Dewalt rotary laser level, including setup, operation, troubleshooting, and maintenance, ensuring you get the most out of your investment.

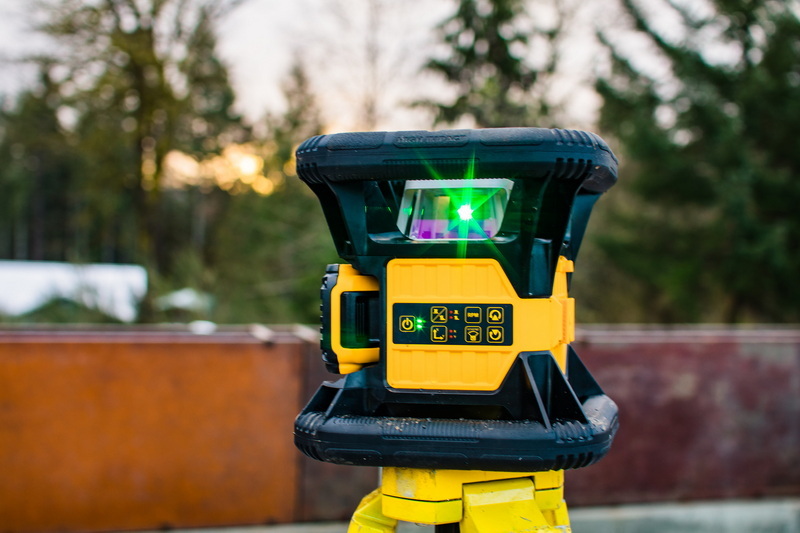

dewalt rotary laser level instructions

What is a Dewalt Rotary Laser Level?

A Dewalt rotary laser level projects a rotating laser beam that creates a horizontal or vertical plane of reference. This allows users to measure elevation, align structures, and transfer levels over long distances with high precision. The tool is self-leveling, meaning it automatically finds and maintains a level plane within a certain range, typically within 4 degrees of level. The laser beam spins 360 degrees, providing a continuous reference line around a job site, which is especially useful for large-scale projects.

Dewalt rotary laser levels are known for their durability, accuracy, and ease of use. They come equipped with features such as slope mode, scan mode, and height of instrument (HI) mode, which enhance their versatility for different applications. Using these features effectively can help you tackle a wide range of tasks from simple leveling to complex grading.

Step-by-Step Guide to Using a Dewalt Rotary Laser Level

1. Prepare the Equipment

Before you begin, make sure you have everything you need:

- Fully Charged Battery: Dewalt rotary laser levels typically use 18V or 20V rechargeable batteries. Charge the battery fully to avoid interruptions during your work.

- Tripod: A sturdy tripod is essential for mounting the laser level at the desired height and ensuring stability.

- Laser Detector (Optional): For outdoor use or in bright conditions where the laser beam is hard to see, a laser detector is necessary.

- Grade Rod or Measuring Staff: This helps in reading elevations when working on grading or leveling tasks.

2. Set Up the Laser Level

- Mount the Laser: Attach the Dewalt rotary laser level securely to the tripod using the standard 1/4” x 20 female threads. Make sure the tripod is placed on a stable surface.

- Roughly Level the Tripod: Adjust the tripod legs so the laser level is approximately level. This helps the self-leveling mechanism work efficiently.

- Power On the Unit: Insert the battery and press the power button. The laser will begin the self-leveling process, indicated by blinking LEDs on the X and Y axes.

- Wait for Self-Leveling: The laser will automatically adjust its internal pendulum to find a level plane. When the LEDs stop blinking, the unit is level and ready to use.

- Check the Beam Rotation: The laser beam will start rotating clockwise at about 600 revolutions per minute (RPM), creating a continuous 360-degree horizontal plane.

3. Adjusting the Laser Settings

Dewalt rotary laser levels come with several adjustable features to tailor the tool to your specific needs:

- Rotation Speed: Use the speed button to select the rotation speed of the laser beam. Slower speeds provide better visibility of the beam indoors, while faster speeds are better for outdoor use.

- Scan Mode: This mode limits the laser beam's rotation to a specific arc rather than a full 360 degrees. You can select angles such as 0°, 15°, 45°, or 90°, which is useful for focusing the laser on a particular work area and conserving battery life.

- Slope Mode: If your project requires a slope, activate slope mode and use the arrow buttons to tilt the laser head on the X or Y axis. This is ideal for grading, drainage, or any task requiring a precise angle.

- Height of Instrument (HI) Mode: This anti-drift feature activates automatically about 30 seconds after startup. It locks the laser's position to maintain accuracy even if the unit is bumped or jarred. You can disable this mode if you need to reposition the laser.

4. Using the Laser Detector (For Outdoor Use)

When working outdoors, bright sunlight can make the laser beam difficult to see. A laser detector helps by sensing the beam and providing visual and audio signals to pinpoint its location:

- Turn on the Detector: Power on the detector and adjust the volume to a comfortable level.

- Attach to Grade Rod: Slide the detector up and down the grade rod until it picks up the laser beam.

- Read the Grade: The detector will beep and display indicators showing whether you are above, below, or on the laser beam's level. This allows you to make precise adjustments to your measurements.

5. Marking and Measuring

- Mark the Laser Dot or Line: Once the laser beam is visible or detected, use a pencil or marker to mark the exact spot on your work surface.

- Transfer Levels: Move the detector or grade rod to various points around the site to transfer the level or slope measurements accurately.

- Repeat as Needed: Continue marking and measuring until your entire work area is aligned according to your project specifications.

6. Turning Off and Storing the Laser Level

- Power Off: Slide the power switch to the off position to turn off the laser level.

- Remove the Battery: For long-term storage, remove the battery to prevent power drain and potential damage.

- Store Properly: Keep the laser level in its protective case to avoid damage from dust, moisture, or impacts. Store in a dry, cool place.

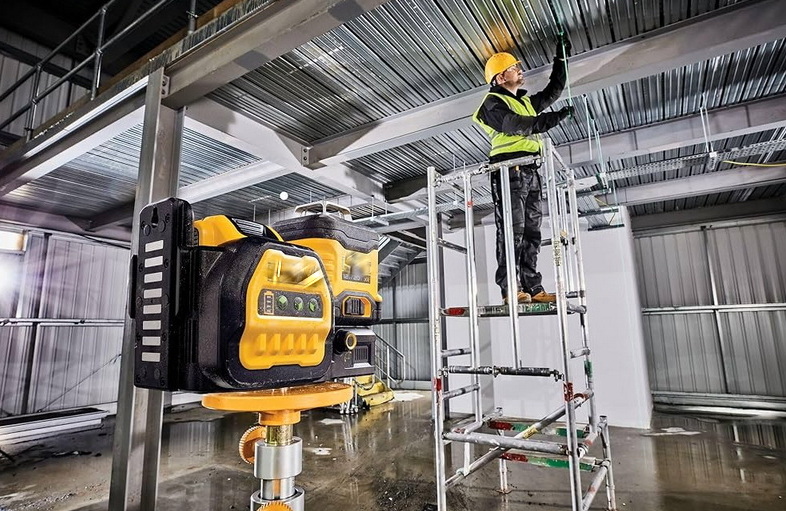

dewalt rotary laser level kit reconditioned

Additional Tips for Accurate Use

- Regular Calibration Checks: Even though Dewalt rotary laser levels are factory-calibrated, it's important to check calibration periodically, especially after the tool has been dropped or subjected to rough handling.

- Lens Maintenance: Keep the laser lens clean and free from dust or smudges. Use a soft cloth to gently wipe the lens to maintain beam clarity.

- Stable Setup: Always ensure the tripod or mounting surface is stable and secure. Vibrations or movement can affect accuracy.

- Avoid Extreme Weather: Dewalt laser levels are rugged but avoid using them in extreme temperatures or heavy rain to protect internal electronics.

- Use the Correct Accessories: Using the right tripod, grade rods, and detectors designed for your Dewalt laser level model will improve performance.

Troubleshooting Common Issues

Problem	Cause	Solution
Laser not turning on	Dead battery or power switch off	Replace battery, ensure power switch is ON
Flashing red indicator light	Low battery	Replace batteries promptly
Flashing laser beam	Laser tilted beyond self-level range	Adjust laser to a more level position
Clicking noise during use	Loose components	Tighten bolts or parts; contact service if persists
Laser shuts off repeatedly	Battery or terminal connection issues	Check battery installation, clean terminals

If problems persist, consult the Dewalt user manual or contact Dewalt customer support for professional assistance.

Conclusion

Using a Dewalt rotary laser level correctly involves more than just turning it on. Proper setup, understanding the tool's features, and regular maintenance are crucial for achieving precise and reliable results. By following the step-by-step instructions outlined in this guide, you can maximize the tool's effectiveness for a wide range of leveling and alignment tasks, from simple indoor projects to complex outdoor grading. Regular calibration and troubleshooting will keep your laser level performing accurately, saving time and improving the quality of your work. With the right knowledge and care, your Dewalt rotary laser level will be a trusted companion on every project.

david white rotary laser level for footings

FAQ

1. How do I calibrate my Dewalt rotary laser level?

To calibrate, place the laser on a stable, level surface and turn it on. Allow it to self-level, then rotate the laser to different cardinal points (0°, 90°, 180°, 270°). Check if the laser beam remains level at each point. If you notice any deviation, professional calibration or servicing may be required.

2. What should I do if my Dewalt laser level beam is flashing?

A flashing beam indicates that the laser is tilted beyond its self-leveling range. Adjust the tripod or mounting surface to bring the unit back within the leveling range until the beam stabilizes.

3. Can I use my Dewalt rotary laser level outdoors?

Yes, Dewalt rotary lasers are designed for outdoor use. However, because the laser beam can be difficult to see in bright sunlight, it is recommended to use a laser detector to locate the beam accurately.

4. How do I set a slope with the Dewalt rotary laser level?

Activate slope mode on the laser level, then use the arrow buttons to tilt the laser head to the desired slope angle on either the X or Y axis. This feature allows you to set precise inclines for grading or drainage projects.

5. How often should I replace or recharge the batteries in my Dewalt rotary laser level?

Recharge the batteries fully before starting any job to avoid interruptions. Replace batteries when the low battery indicator lights up or if the laser's performance becomes inconsistent. Using high-quality rechargeable batteries will extend the tool's run time and reliability.
