Setting up a rotary laser level on a tripod is a crucial step in ensuring accurate and efficient leveling for various construction and DIY projects. This article will guide you through the process, highlighting key components and best practices for using a rotary laser level with a tripod.

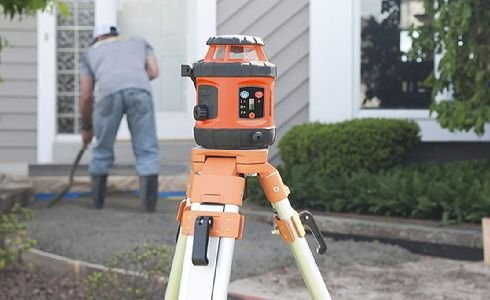

Rotary laser levels are versatile tools used for projecting a 360-degree laser beam, which can be used to establish level lines or plumb lines in both horizontal and vertical directions. They are commonly mounted on tripods to provide stability and flexibility during use.
A tripod is a three-legged stand designed to support leveling instruments like rotary laser levels. It offers stability along both the side-to-side and up-and-down axes, ensuring that your laser level remains steady and accurate.
1. Legs: These are adjustable to accommodate different terrains and heights. For stability, they should be spread evenly apart in the shape of an equilateral triangle.
2. Head: This is where the laser level is mounted. Common types include flat heads and dome heads, with a standard 5/8 inch thread for most laser levels.
3. Attachments: These may include adapters for different thread sizes or additional accessories like laser detectors.
1. Choose a Location: Select a stable and level surface for your tripod. Ensure it is away from obstructions and vibrations.
2. Extend the Legs: Adjust the legs to achieve a stable base. For uneven surfaces, use leg extensions or adjustable feet to level the tripod.
3. Level the Tripod Head: Use the built-in bubble level or adjust the head manually to ensure it is perfectly horizontal. This step is crucial for accurate laser alignment.
4. Mount the Rotary Laser Level: Place the laser level on the tripod head and secure it using the mounting screw. Ensure the screw is tightened firmly to prevent the laser from shifting.
5. Level the Laser Level: If your laser level requires manual leveling, adjust the X and Y wheels until the bubbles in the vials are centered. For auto-leveling models, simply turn on the device and let it self-level.
1. Point Marking: Use the laser beam to mark points on walls or floors for alignment or layout purposes.
2. Horizontal and Vertical Lines: Project a continuous line around a room or along a wall for installing shelves, cabinets, or flooring.
3. Plumb Lines: Establish vertical references for ensuring walls or columns are perfectly plumb.
4. Chalk Lines: Create a "chalk line" effect by pulsing the laser beam, useful for marking straight lines on surfaces.
- Calibration: Regularly check and calibrate your laser level to ensure accuracy, especially after transportation or if the device has been dropped.
- Battery Maintenance: Keep spare batteries handy and ensure they are properly installed to avoid interruptions during use.
- Environmental Considerations: In bright conditions, use a laser detector to enhance visibility of the beam.
Many modern rotary laser levels come with advanced features that enhance their usability and accuracy:
1. Remote Control: Allows you to adjust settings without physically touching the device, reducing vibrations and errors.
2. Pulse Mode: Useful for using with laser detectors in bright conditions, improving visibility and accuracy.
3. Scan Mode: Enables the laser to sweep across a specific area, useful for detecting obstructions or marking complex layouts.
4. Tilt Function: Allows for precise adjustments in the angle of the laser beam, useful for creating slopes or inclines.
1. Inaccurate Readings: Check if the tripod and laser level are properly leveled. Ensure the surface is stable and free from vibrations.
2. Laser Beam Visibility: In bright conditions, use a laser detector or adjust the laser's rotation speed for better visibility.
3. Battery Life: Use high-quality batteries and keep spares on hand.
When using a rotary laser level, it's important to follow safety guidelines:
1. Eye Protection: Avoid direct exposure to the laser beam, as it can cause eye damage. Wear protective eyewear if necessary.
2. Work Environment: Ensure the work area is clear of obstructions and tripping hazards.
3. Device Maintenance: Regularly clean and maintain your laser level to ensure optimal performance.
When selecting a tripod for your rotary laser level, consider the following factors:
1. Stability: Look for tripods with sturdy legs and a robust head that can support the weight of your laser level.
2. Adjustability: Adjustable legs are essential for leveling on uneven surfaces.
3. Compatibility: Ensure the tripod head is compatible with your laser level's mounting thread.
Setting up a rotary laser level on a tripod is straightforward but requires attention to detail to ensure accuracy and efficiency. By following these steps and tips, you can effectively use your rotary laser level for a variety of projects, from simple DIY tasks to complex construction work.
Using a tripod with a rotary laser level provides stability and flexibility, allowing for accurate and efficient leveling across different surfaces and terrains.
Adjust the tripod legs to achieve a stable base, then use the built-in bubble level or manual adjustments to ensure the head is perfectly horizontal.
There are adjustable-leg tripods and fixed-leg tripods. Adjustable-leg tripods offer more flexibility for uneven surfaces.
Calibrate your laser level regularly, especially after transportation or if it has been dropped. Check the manufacturer's guidelines for specific calibration procedures.
Yes, but visibility may be reduced. Use a laser detector or adjust the laser's rotation speed to enhance visibility in bright conditions.
